CNC Double Column Milling Machine Gantry Machining Center YSM-3018

CNC Double Column Milling Machine Gantry Machining Center YSM-3018

YSM gantry machining center is a set of machinery, electricity, hydraulic and other advanced technology in one of the mechanical processing equipment, mainly used for mold, CAM, impeller, and curved surface processing.

  • Max. X-axis Travel :

    3000mm
  • Max. Y-axis Travel :

    2000mm
  • Max. Z-axis Travel :

    960mm
  • Max Workpiece Length :

    3000mm
  • Max Workpieces Width :

    1600mm
  • Max Workpieces Weight :

    8T
  • Application :

    Aerospace Engineering, Military Industry, Medical Industry
  • Processing :

    Drilling, Tapping, Milling, Surface Milling

YSM-3018 Double Column Machining Center Product Characteristics

1. Applicable to all kinds of parts processing, mold processing, aluminum parts and aerospace transportation parts processing industry, etc

2. X and Y axes use the roller-type linear guideway, and the Z axis offers a box way, it can be equipped with various types of manual attaching head

3. Designed with box ways with hand scrapping, cutting vibration adapting, and precise power transmission to get efficient, rigid, and accurate cutting

4. Wide base with solid columns and beam, providing the best structure stiffness to ensure the best geometric accuracy of 3-axis travel

5. Full casting components with guideways coated with precision scrapping to ensure the best stiffness and low friction

6. One-piece casting for gear head transmission and headstock. Z-axis is at the symmetrical position of the spindle motor, offering accuracy and precision with micro-smooth movement.

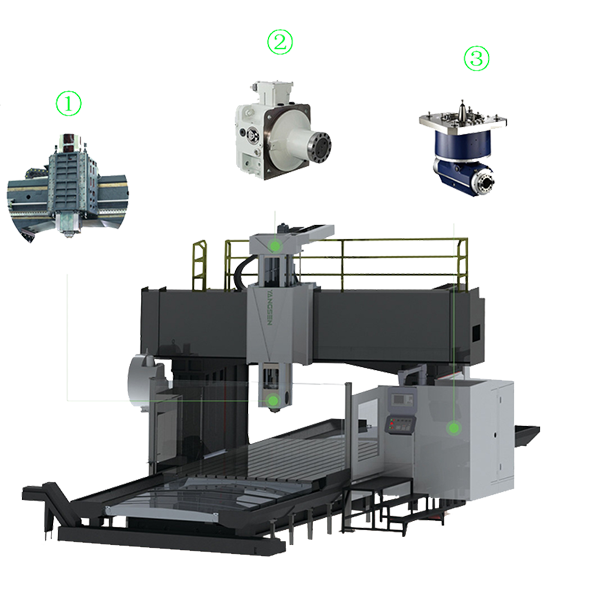

① Square ram structure 500X500MM

The machine installs a four-sided restraint quenching guide guideway and double-cylinder nitrogen balance device. The overall rigidity is strong. It has the strong cutting ability and stable precision.

② Italy BF gearbox

High-performance speed, low noise, expandable motor constant power range with easy installation. It can be used in conjunction with multiple series of motors and adapt to high-strength tension.

③ Fully automatic side milling head

The transmission gear is a Gleason spiral bevel gear. The transmission is stable and accurate. It has a long service life. The internal transmission key of the milling head is a quenched part with minimal backlash.

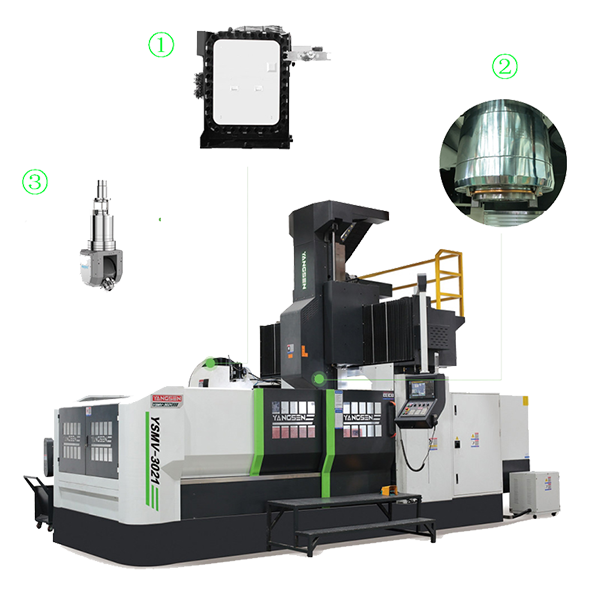

① Vertical and horizontal tool magazine



② Spindle

Using BBT50- © 200 high rigidity spindle, 6 imported large steel ball bearings, super cutting ability.



③ Five-axis linkage double swing milling head

AC axis torque motor + electric spindle

fork-shaped integrated structure;

AC axis installs torque motor structure;

AC axis hydraulic holding for high-speed cutting and high rigidity.





Double-Column Gantry CNC Machine Parameters

Model

YSM-3018

Subject

Specifications

Units



Travel

X-Axis

mm

3000

Y-Axis

mm

2000

Z-Axis

mm

960

Spindle Nose to Worktable

mm

140-1140

Three-Axis Guideway



X/Y Heavy Load Roller Linear Guideway Z-Axis T-Type Ram Box Way

Door Width



1800

Worktable

Worktable Size(L*W)

mm

3000*1600

Maximum Table Load

t

8

T-Slot

mm

9-22*180

Spindle

Spindle Type

type

BBT-50

Spindle R.P.M.

rpm

6000

Spindle Drive Type



Belt (DDS/Geared)

Feedrate

Rapid Traverse (X/Y/Z)

m/min

8/12/12

Cutting Feedrate (X/Y/Z)

m/min

8

Tool Changer

ATC



24 (Option: 40/60)

Motor

Spindle Motor

KW

15/18.5 (143-236 Nm)

Three-Axis Servo Motor

KW

3/3/3 (36 Nm)

Accuracy

Accuracy

mm

0.03/0.02/0.015

Repeatability

mm

0.02/0.015/0.01

Power Required

Power Requirement

kva

45

Air Pressure Requirement

kg/cm²

6^8

Others

External Dimensions (L*W*H)

mm

8440*4730*5140

Gross Weight

t

30



Gantry CNC Machine Sample Applications

Lathe Turbocharger housing Spiral bevel gear Compressor

Standard Accessories

Rigid Tapping

Automatic Lubricating System

Semi-Enclosed Guard

Dual LED Work Light

Heat Exchange for Electric Cabinet

Dual-Screw Type Chip Conveyor

Spindle Nose Air Blow

LED 3 Color Warning Light

Chain Type Chip Conveyor and Cart

M30 Auto Off

Leveling Bolts and Pads



Options

Optical Linear Scale

CTS

40T ATC

Tool Breakage System

Chip Conveyor System

Rotary Table

Oil Mist System

Oil Skimmer

90° Manual Milling Head

Air Conditioner

Auto Parts Probe Measuring System

90° Auto Milling Head with AHC
