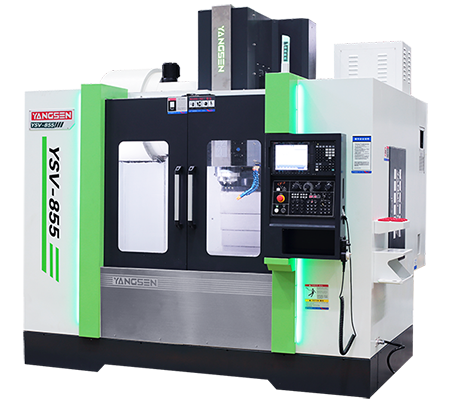

Vertical Machining Centers VMC Machine YSV-855

Vertical Machining Centers VMC Machine YSV-855

Vertical Machining, also known as milling, relies on rotary cutters to remove metal from a workpiece. Vertical machining occurs on a vertical machining center (VMC), which employs a spindle with a vertical orientation. With a vertically oriented spindle, tools stick straight down from the tool holder, and often cut across the top of a workpiece.



  • Max. X-axis Travel :

    850mm
  • Max. Y-axis Travel :

    550mm
  • Max. Z-axis Travel :

    550mm
  • Max Workpiece Length :

    1000mm
  • Max Workpieces Width :

    550mm
  • Max Workpieces Weight :

    800KG
  • Application :

    Precision Mold, Auto Parts, Aerospace Engineering
  • Processing :

    Surface Milling, Drilling Holes, Tapping

Vertical Machining Structural Characteristics



The machine tool of this product is equipped with name brand components in the industry, equipped with a large torque, high speed motor and a super rigid bed design.

Taking into account high torque, high speed and high precision, it is suitable for processing all kinds of products and molds.



Machine Cutting Performance

Surface Milling

Steel 45#

Drilling Holes

Steel 45#

Tapping

Steel 45#

Cuttin

5mm



Cutter diameter

Ø60

Cutting Tapping

M24

Cutter

Ø125mm*5T

Cutter

Ø60mm*2T

Cutter

M24*3P

Spindle speed

1000rpm

Spindle speed

1200rpm

Spindle speed

150rpm

Feed

F600

Feed

F100

Feed

F450

Width

56mm

Width

60mm

Width

40mm





Vertical Frame Machine Structural Characteristics

1. Three-axis adopts Japanese THKΦ40-C3 grade screw, three-axis adopts NSK original bearing (3062), 3+2 mode, pre-tensioning treatment to prevent thermal displacement.

2. BBT40 outer diameter 150mm high rigidity 10000rpm short nose spindle. It adopts 5 bearings, standard spindle coolant nozzles, and an optional HSK-63 electric spindle.

3. Worktable  1020*570 mm

4. Three-axis travel X:900/Y:570/Z:680. The reserved installation position of the Optical Linear Scales can be equipped with a hollow oil-cooled ballscrew.

5. Optical Linear Scales.  Optional Heidenhain, Fagor optical linear scales, accuracy ±5um, to ensure the positioning accuracy of the machine tool.

6. It installs Japanese THK or German Rexroth linear guideway, the linear guideway width is up to 45mm.

7. Column double-layer arm structure, better rigidity.

8. Standard Air Counter Balance System processing is more stable.



Vertical Machining Centers Parameters

Model

YSV-855

Subject

Specifications

Units



Travel

X/Y/Zaxis

mm

850/550/550

Spindle Nose to Worktable

mm

120-670

Spindle Center to Column

mm

610

Three-Axis Guideway

/

Roller Linear Guideway

Worktable

Worktable Size (L*W)

mm

1000x550

Maximum Table Load

kg

800

T-Slot

mm

5-18x90

Spindle

Spindle taper

type

BBT-40

Spindle speed

rpm

10000

Spindle Drive Type

 /

Belt

Feedrate

Rapid Traverse(X/Y/Z)

m/min

48/48/48

Cutting Feedrate(X/Y/Z)

m/min

10

Tool Changer

Automatic Tool Changer

 /

ARM Type

Type of Tool Shank

type

BT-40

Tool Storage Capacity

Piece

28

Max. Tool Diameter (Adjacent)

mm

68

Max. Tool Diameter (Empty)

mm

105

Max. Tool Length

mm

300

Max. Tool Weight

kg

7

Tool Change Time

sec

1.4

Motor

Spindle Motor

kw

7.5/11

Three-Axis Seixo Motor

kw

2.0/2.0/3.0

Accuracy

Accuracy

mm

±0.005

Repeatability

mm

±0.003

Power Required

Power Requirement

kva

20

Air Pressure Requirement

kg/cm²

6^8

Others

External Dimensions (L*W*H)

mm

2530x2350x2559

Gross Weight

t

5.8


Standard Accessories

Safety Door

Automatic Lubricating System

Fully Enclosure Guard

Air Gun

Rigid Tapping

Heat Exchange for Electric Cabinet

Spindle Coolant Nozzles

Coolant Gun

Dual LED Work Light

LED 3 Color Warning Light

Coolant Tank & Chip Tray

Tool Box

Spindle Nose Air Blow

Leveling Bolts and Pads

M30 Auto Off

Maintenance and Operational Manual



Options

Optical Linear Scale

CTS

Workpiece & Tool Probe

Coolant Gun

Tool Breakage System

Chip Conveyor System

Oil Mist Collector

Oil Skimmer

Rotary Table

12000rpm DDS Spindle

15000rpm DDS Spindle

HSK-63-18000 Built-In Moto
