CNC Engraving machine is the art of cutting or carving grooves or characters into a surface. It is mainly used for the fine machining of small molds. It is widely used in precision molds, copper electrodes, shoe mold manufacturing, batch processing of clocks, watches and glasses products, etc. Ideal for 3D molds & stamps, coining dies, roll dies, hot stamping & combination dies, steel dies, steel molds, embossing dies, etc. Free Training and Unlimited Support. Feel free to contact us.
Max. X-axis Travel :
800mmMax. Y-axis Travel :
700mmMax. Z-axis Travel :
300mmMax Workpiece Length :
720mmMax Workpieces Width :
640mmMax Workpieces Weight :
400kgApplication :
Precision MoldProcessing :

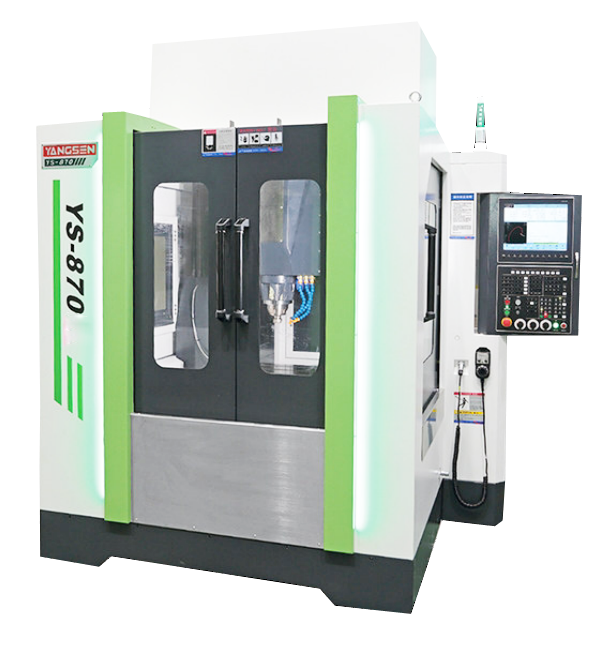

Drilling, Milling, Tapping, EngravingYS-870A Structural Characteristics of Engraving and Milling Machine
![]() |
CNC Engraving machine is the art of cutting or carving grooves or characters into a surface. It is mainly used for the fine machining of small molds. It is widely used in precision molds, copper electrodes, shoe mold manufacturing, batch processing of clocks, watches and glasses products, etc. Ideal for 3D molds & stamps, coining dies, roll dies, hot stamping & combination dies, steel dies, steel molds, embossing dies, etc. Free Training and Unlimited Support. Feel free to contact us. |
YS-870A Engraving and Milling Machine Features
![]() |
1. A patented spindle box of engraving and milling machine There is a stepped hole inside the spindle box; the electric spindle is installed in the stepped hole, and a flange is used to fix the spindle box 2. Worktable Box structure and ballscrew are integrally formed. 3. Optical linear scales Optional Heidenhain, Fagor optical linear scales with accuracy of under ±5um 4. Base Multi-layer wall box structure, rear chip extractions 5. A triangular rib structure of bridge column The utility model of the triangular rib structure of the door bridge improves the dynamic and static rigidity of the machine tool and enhances the processing accuracy. 6. Optional Direct-Driven BBT40 spindle 7. Upgrade Configuration Standard servo carousel tool magazine; HSK-E40 motor spindle; graphite protection package; laser tool probe; oil mist collector system, and more 8. Stable Accuracy The closed loop optical linear scales with high positioning accuracy can effectively suppress the positioning error caused by the thermal extension of the lead ballscrew. 9. System Stability Equipped with Siemens 828D system. |
YS-870A Engraving and Milling Maching Center Parameters
Model |
YS-870A |
||
Subject |
Specifications |
Units |
|
Travel |
X/Y/Z axis |
mm |
800/700/300 |
Spindle Nose to Worktable |
mm |
130-430 |
|
Three-Axis Guideway |
/ |
Linear Guideway |
|
Door Width |
/ |
810 |
|
Worktable |
Worktable Size (L*W) |
mm |
720*640 |
Maximum Table Load |
kg |
400 |
|
T-Slot |
mm |
5-16x120 |
|
Spindle |
Spindle taper |
type |
BT-30 |
Spindle speed |
rpm |
24000 |
|
Spindle Drive Type |
/ |
Built-In |
|
Feedrate |
Rapid Traverse (X/Y/Z) |
m/min |
15/15/12 |
Cutting Feedrate (X/Y/Z) |
m/min |
12 |
|
Tool Changer |
Tool Changer |
/ |
Carousel Servo ATC |
Motor |
Spindle Motor |
kw |
7.5 |
Three-Axis Servo Motor |
kw |
0.85/0.85/1.3 |
|
Accuracy |
Accuracy |
mm |
±0.005 |
Repeatability |
mm |
±0.003 |
|
Power Required |
Power Requirement |
kva |
10 |
Air Pressure Requirement |
kg/crrf |
6^8 |
|
Others |
External Dimensions (L*W*H) |
mm |
2100x2700x2550 |
Gross Weight |
t |
4.7 |
7.5KW-ER32-24000 Auto Tool Length Measurement Spindle Oil Cooler Fully Enclosure Guard |
Coolant Tank & Oil Skimmer Hand Wheel (MPG) Leveling Bolts and Pads Tool Box |
Automatic Lubricating System Transformer LED Work Light Spindle Air & Coolant Blast |
Transmission Software and Cables 20m LED 3 Color Warning Light Maintenance and Operational Manual Heat Exchange for Electric Cabinet |
Options
Oil Mist Collector ATC |
7.5KW-BT30-24000
|
BBT40-15000
|
Rotary Table
|
