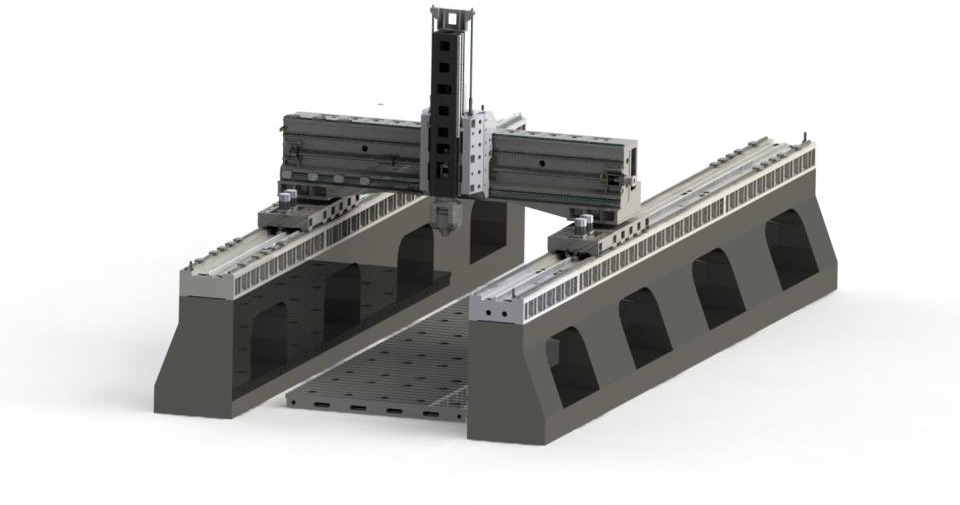

5-Axis Machining Center YSMD-8045-5A Gantry Machine Double Column CNC Machine
A 5-axis gantry machining center is a highly advanced and versatile machine tool that enables precision milling and drilling operations with enhanced efficiency and accuracy. This type of machining center offers the capability to move the cutting tool along five different axes simultaneously, enabling complex machining tasks.
Max. X-axis Travel :
8000mmMax. Y-axis Travel :
3500mmMax. Z-axis Travel :
2300mmMax Workpiece Length :
8000mmMax Workpieces Width :
3500mmMax Workpieces Weight :
89TApplication :
Aerospace Engineering, Military Industry, Medical IndustryProcessing :
Drilling, Tapping, Milling, Surface MillingYSMD-8045-5A Gantry Machine Features
Application of Moving Column Machining Center Series
Gantry Double Column CNC Machine is ideal for machining large parts for heavy industries that require very complex structures and that not only extend to automobiles, boats, and airplanes but also to the manufacturing of other machine tools. And it is to manufacture some of the most used machines in workshops.
YSMD-8045-5A Gantry Machine Parameters
| Subject | Specification | unit | YSMD-8045-5A |
| Travel | X/Y/Z axis | mm | 8000*3500*2300 |
| Spindle nose to the worktable surface | mm | 500-2800 | |
| Gantry passable width | mm | 4500 | |
| Worktable | worktable（L*W) | mm | 8000*3500 |
| Worktable max load | t/㎡ | 10 | |
| T SLOT | mm | 36*200 | |
| Spindle | Spindle type | mm | HSKA63 |
| Spindle speed | rpm | 18000 | |
| Spindle delivery type | Electric spindle | ||
| Feed rate | Feed rate ( X/Y/Z ) | m/min | 2010-10-10 |
| The max cutting feed rate | mm/min | 6000 | |
| Motor | Spindle motor | kw | 30 |
| Three-axis servo motor | kw | 5.2*4/5.2/5.2 | |
| Cutting water pump motor | kw | 2.7 | |
| ATC(optional） | Tool change method | Side Amount | |
| Tool handle specifications | type | HSKA63 | |
| Tool capacity | tools | 30 | |
| Maximum tool diameter (adjacent tool) | mm | 80 | |
| Maximum tool diameter (without adjacent tool) | mm | 120 | |
| Maximum tool length | mm | 350 | |
| Maximum tool weight | kg | 8 | |
| Fastest tool change time | sec | 2.5 | |
| Accuracy(GB/T 19362.2-2017） | Positioning | mm | 0.06/0.035/0.02 |
| Repeatability | mm | 0.045/0.025/0.015 | |
| Power requirement | Power requirement | kva | 60 |
| Air pressure requirement | Kg/cm² | 6^8 | |
| Others | L*W*H | mm | Appr 13300*7430*5950 |
| Weight | T | Appr 89 |
