Vertical CNC machining centers series is designed based on most major CNC system brands, working perfectly with system drives and motor types from most major CNC system companies. It has been designed for complex and multiple procedures with high-precision purposes. This series perfectly fits any industry requiring various types of machine tools, cutting tools, technological equipment, or any industry that employs batch production requiring multiple times of clamping and adjusting, such as electronic, machinery, automobile, aviation, or shipbuilding.
Max. X-axis Travel :
1800mmMax. Y-axis Travel :
900mmMax. Z-axis Travel :
600mmMax Workpiece Length :
2000mmMax Workpieces Width :
900mmMax Workpieces Weight :
1600KGApplication :
Auto PartsProcessing :
Surface Milling, Drilling Holes, TappingVertical Machining Structural Characteristics
 |
Vertical CNC machining centers series is designed based on most major CNC system brands, working perfectly with system drives and motor types from most major CNC system companies. It has been designed for complex and multiple procedures with high-precision purposes. This series perfectly fits any industry requiring various types of machine tools, cutting tools, technological equipment, or any industry that employs batch production requiring multiple times of clamping and adjusting, such as electronic, machinery, automobile, aviation, or shipbuilding. |
Machine Cutting Performance
|
Surface Milling |
Steel 45# |
Drilling Holes |
Steel 45# |
Tapping |
Steel 45# |
||
|
Cutting depth 7mm |
|
Cutter diameter Ø80 |
|
Tapping M30 |
|
||
|
Cutter |
Ø125mm*5T |
Cutter |
Ø80mm*2T |
Cutter |
M30*3P |
||
|
Spindle speed |
550rpm |
Spindle speed |
800rpm |
Spindle speed |
120rpm |
||
|
Feed |
F500 |
Feed |
F100 |
Feed |
F420 |
||
|
Width |
80mm |
Width |
80mm |
Width |
50mm |
||
Vertical Frame Machine Structural Characteristics
 |
Japan NBK coupling/Japan NSK bearing Taiwan PMI outer diameter 50mm C3 grade ballscrew 1. Ballscrew pre-tensioning treatment to prevent hot stretch. 2. Box-way design at the rear of the spindle head, triangular structure, Z-axis 6-slider support, super rigid. 3. Install Taiwan Φ155 high rigidity BBT50, 6000rpm, 6 bearings, coolant nozzles design. 4. Three-axis travel X: 1300/Y: 750/Z: 680 Reserved for optical linear scales installation. 5. The Y-axis is supported by 4 German Rexroth ball linear guideway for maximum rigidity and accuracy. 6. Worktable: 1360*700 mm 7. BF Gearbox. Optional Italian BF gearbox, super cutting ability, high and low gear functions, stepless gear change. The bad is made of precision HT300 high grade cast iron |

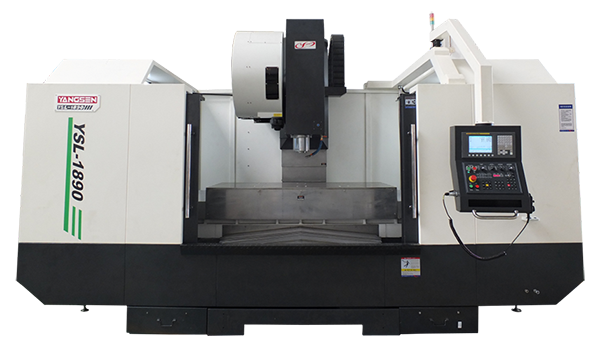

| Model | YSL-1890 | ||
| Subject | Specifications | Units | |
| Travel | X/Y/Z axis | mm | 1800x900x600 |
| Spindle Nose to Worktable | mm | 150-750 | |
| Spindle Center to Column | mm | 950 | |
| Three-Axis Guideway | / | X/Y Roller Linear Guideway & Z Box Way | |
| Worktable | Worktable Size (L*W) | mm | 2000x900 |
| Maximum Table Load | kg | 1600 | |
| T-Slot | mm | 5-22x165 | |
| Spindle | Spindle taper | type | BBT-50 |
| Spindle speed | rpm | 6000 | |
| Spindle Drive Type | / | Belt | |
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 20/20/10 |
| Cutting Feedrate (X/Y/Z) | m/min | 10 | |
| Tool Changer | Automatic Tool Changer | / | ARM Type |
| Type of Tool Shank | type | BT50 | |
| Tool Storage Capacity | Piece | 24 | |
| Max. Tool Diameter (Adjacent) | mm | 105 | |
| Max. Tool Diameter (Empty) | mm | 200 | |
| Max. Tool Length | mm | 350 | |
| Max. Tool Weight | kg | 15 | |
| Tool Change Time | sec | 4.9 | |
| Motor | Spindle Motor | kw | 18.5 |
| ITree-Axis Seiw Motor | kw | 7.0/4.5/4.5 | |
| Accuracy | Accuracy | mm | ±0.005/300 |
| Repeatability | mm | ±0.003 | |
| Power Required | Power Requirement | kva | 35 |
| Air Pressure Requirement | kg/cm² | 6^8 | |
| Others | External Dimensions (L*W*H) | mm | 4850x3222x3034 |
| Gross Weight | t | 16.5 | |
