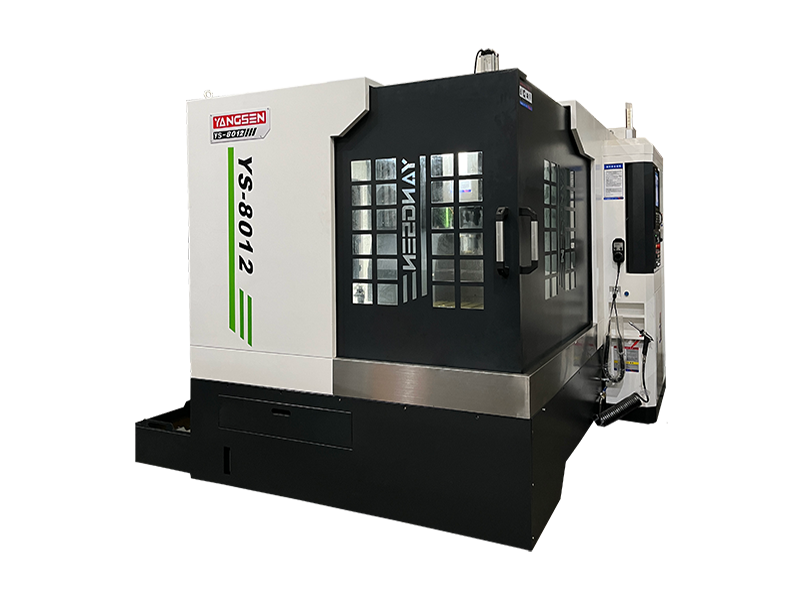

CNC Machining Center Engraving Machining YS-8012

CNC engraving and milling machines are known for their fast processing speed, cost performance, and good finishes. Ideal for 3D molds & stamps, coining dies, roll dies, hot stamping & combination dies, steel dies, steel molds, embossing dies, etc. Free Training and Unlimited Support. Feel free to contact us.

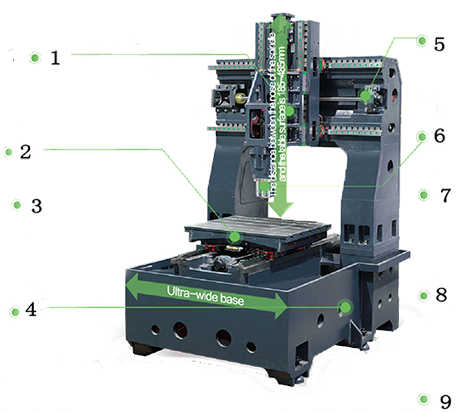

1. A patented spindle box of engraving and milling machine

There is a stepped hole inside the spindle box; the electric spindle is installed in the stepped hole, and a flange is used to fix the spindle box

2. Worktable

Box structure and ballscrew are integrally formed.

3. Optical linear scales

Optional Heidenhain, Fagor optical linear scales with accuracy of under ±5um

4. Base

Multi-layer wall box structure, rear chip extractions

5. A triangular rib structure of bridge column

The utility model of the triangular rib structure of the door bridge improves the dynamic and static rigidity of the machine tool and enhances the processing accuracy.

6. Optional Direct-Driven BBT40 spindle

7. Upgrade Configuration

Standard servo carousel tool magazine; HSK-E40 motor spindle; graphite protection package; laser tool probe; oil mist collector system, and more

   8. Stable Accuracy

   The closed loop optical linear scales with high positioning accuracy can effectively suppress the positioning error caused by the thermal extension of the lead ballscrew.

   9. System Stability

   Equipped with Siemens 828D system.

Model

YS-8012

Subject

Specifications

Units

Travel

X/Y/Z axis

mm

800/1200/300

Spindle Nose to Worktable

mm

195-495

Three-Axis Guideway

/

Linear Guideway

Door Width

/

810

Worktable

Worktable Size (L*W)

mm

1200*800

Maximum Table Load

kg

1000

T-Slot

mm

7-18x100

Spindle

Spindle taper

type

BT-40

Spindle speed

rpm

15000

Spindle Drive Type

/

Built-In

Feedrate

Rapid Traverse (X/Y/Z)

m/min

15/15/12

Cutting Feedrate (X/Y/Z)

m/min

12

Tool Changer

Tool Changer

/

Carousel Servo ATC

Motor

Spindle Motor

kw

5.5

Three-Axis Servo Motor

kw

1.3/3.0/1.3

Accuracy

Accuracy

mm

±0.005

Repeatability

mm

±0.003

Power Required

Power Requirement

kva

12

Air Pressure Requirement

kg/cm²

6^8

Others

External Dimensions (L*W*H)

mm

3000x2500x2600

Gross Weight

t

6.8
