Vertical Machining Center relies on rotary cutters to remove metal from a workpiece. Vertical machining occurs on a vertical machining center (VMC), which employs a spindle with a vertical orientation. With a vertically oriented spindle, tools stick straight down from the tool holder and often cut across the top of a workpiece. Driven by the timing belt. It can realize the clamping of complex parts such as various disks, plates, shells, cams, molds, etc., and can complete various processes such as drilling, milling, boring, expansion, reaming, and rigid tapping. It is suitable for multiple varieties, the Production of small and medium batch products, and the processing of complex parts.
Max. X-axis Travel :
1200mmMax. Y-axis Travel :
700mmMax. Z-axis Travel :
700mmMax Workpiece Length :
1320mmMax Workpieces Width :
650mmMax Workpieces Weight :
10000KGApplication :
Auto Parts, Aerospace EngineeringProcessing :
Surface Milling, Drilling Holes, TappingVertical Machining Structural Characteristics
 |
Vertical Machining Center relies on rotary cutters to remove metal from a workpiece. Vertical machining occurs on a vertical machining center (VMC), which employs a spindle with a vertical orientation. With a vertically oriented spindle, tools stick straight down from the tool holder and often cut across the top of a workpiece. Driven by the timing belt. |
Machine Cutting Performance
|
Surface Milling |
Steel 45# |
Drilling Holes |
Steel 45# |
Tapping |
Steel 45# |
||
|
Cutting depth 7mm |
|
Cutter diameter Ø80 |
|
Tapping M30 |
|
||
|
Cutter |
Ø125mm*5T |
Cutter |
Ø80mm*2T |
Cutter |
M30*3P |
||
|
Spindle speed |
550rpm |
Spindle speed |
800rpm |
Spindle speed |
120rpm |
||
|
Feed |
F500 |
Feed |
F100 |
Feed |
F420 |
||
|
Width |
80mm |
Width |
80mm |
Width |
50mm |
||
Vertical Frame Machine Structural Characteristics
 |
Japan NBK coupling/Japan NSK bearing Taiwan PMI outer diameter 50mm C3 grade ballscrew 1. Ballscrew pre-tensioning treatment to prevent hot stretch. 2. Box-way design at the rear of the spindle head, triangular structure, Z-axis 6-slider support, super rigid. 3. Install Taiwan Φ155 high rigidity BBT50, 6000rpm, 6 bearings, coolant nozzles design. 4. Three-axis travel X: 1300/Y: 750/Z: 680 Reserved for optical linear scales installation. 5. The Y-axis is supported by 4 German Rexroth ball linear guideway for maximum rigidity and accuracy. 6. Worktable: 1360*700 mm 7. BF Gearbox. Optional Italian BF gearbox, super cutting ability, high and low gear functions, stepless gear change. The bad is made of precision HT300 high grade cast iron |

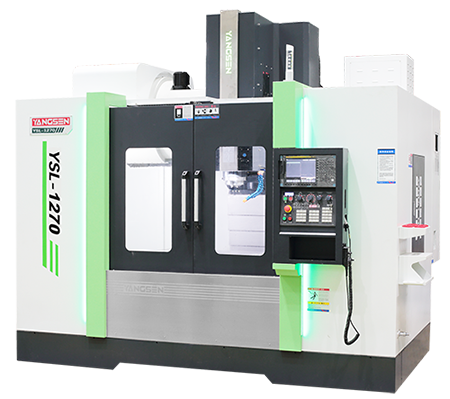

| Model | YSL-1270 | ||
| Subject | Specifications | Units | |
| Travel | X/Y/Z axis | mm | 1200/700/700 |
| Spindle Nose to Worktable | mm | 120-820 | |
| Spindle Center to Column | mm | 715 | |
| Three-Axis Guideway | / | X/Y Roller Linear Guideway & Z Box Way | |
| Worktable | Worktable Size (L*W) | mm | 1320x650 |
| Maximum Table Load | kg | 1200 | |
| T-Slot | mm | 5-18x100 | |
| Spindle | Spindle taper | type | BBT-40 |
| Spindle speed | rpm | 10000 | |
| Spindle Drive Type | / | Belt | |
| Feedrate | Rapid Traverse (X/Y/Z） | m/min | 30/30/15 |
| Cutting Feedrate (X/Y/Z） | m/min | 10 | |
| Tool Changer | Automatic Tool Changer | / | ARM Type |
| Type of Tool Shank | type | BT-40 | |
| Tool Storage Capacity | Piece | 24 | |
| Max. Tool Diameter (Adjacent) | mm | 80 | |
| Max. Tool Diameter (Empty) | mm | 120 | |
| Max. Tool Length | mm | 300 | |
| Max. Tool Weight | kg | 7 | |
| Tool Change Time | sec | 1.4 | |
| Motor | Spindle Motor | kw | 15 |
| Three-Axis Seiw Motor | kw | 3.0/3.0/4.5 | |
| Accuracy | Accuracy | mm | ±0.005/300 |
| Repeatability | mm | ±0.003 | |
| Power Required | Power Requirement | kva | 20 |
| Air Pressure Requirement | kg/cm² | 6^8 | |
| Others | External Dimensions (L*W*H) | mm | 2720x2354x2680 |
| Gross Weight | t | 9 | |
|
Safety Door Automatic Lubricating System Fully Enclosure Guard Air Gun |
Rigid Tapping Heat Exchange for Electric Cabinet Spindle Coolant Nozzles Coolant Gun |
Dual LED Work Light LED 3 Color Warning Light Coolant Tank & Chip Tray Tool Box |
Spindle Nose Air Blow Leveling Bolts and Pads M30 Auto Off Maintenance and Operational Manual |
Options
|
Optical Linear Scale CTS Workpiece & Tool Probe |
Coolant Gun Tool Breakage System Chip Conveyor System |
Oil Mist Collector Oil Skimmer Rotary Table |
12000rpm DDS Spindle 15000rpm DDS Spindle HSK-63-18000 Built-In Moto |
