Gantry Type Double Column Machining Center YSMV-3021

Yangsen's double-column machining centers come in a variety of sizes and bed lengths, providing accuracy and stability suitable for many industries.

Max. X-axis Travel :
3000mm
Max. Y-axis Travel :
2100mm
Max. Z-axis Travel :
1000mm
Max Workpiece Length :
3200mm
Max Workpieces Width :
1700mm
Max Workpieces Weight :
8T
Application :
Medical Industry
Processing :
Drilling, Tapping, Milling, Surface Milling

product introduction

Double column machining center manufacturers/suppliers, China double column machining center manufacturer & factory list

YSMV-3021 Double Column CNC Machine

The YSMV-3021 gantry-type double-column machining center is designed as a versatile solution for machining medium to large-sized workpieces with high precision and stability. With a balanced working range and strong structural rigidity, it is ideal for manufacturers who require both flexibility and consistent machining performance across different types of components.

1. Ultra-wide base of X axis with thick, high-rigidity table enhances table load capacity and ensures the best dynamic level accuracy.

2. The large stepped design of the Y axis makes guide ways close to the beam and spindle, which effectively increases the rigidity of the cutting load

3. Z-axis 15m rapid traverse, high acceleration/deceleration performance to achieve contour accuracy of high-speed mold machining.

4. Spindle and thermal compensation function for environmental temperature change can be chosen to ensure the accuracy change within 0.02mm, which is influenced by environmental temperature change.

Machining centers are the most advanced machine tools on the market. These types of machines have high automation and are capable of performing different machining operations (turning, milling, drilling, grooving, etc.).

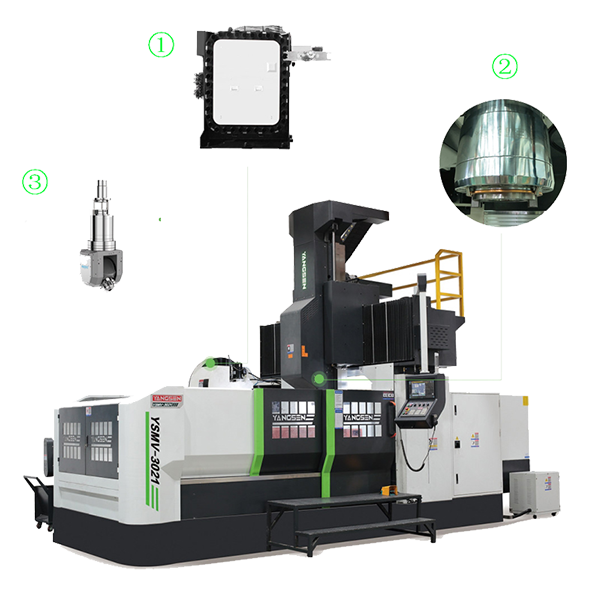

① Vertical and horizontal tool magazine

② Spindle

Using BBT50- © 200 high rigidity spindle, 6 imported large steel ball bearings, and super cutting ability.

③ Five-axis linkage double swing milling head

AC axis torque motor + electric spindle

fork-shaped integrated structure;

AC axis installs the torque motor structure.

AC axis hydraulic holding for high-speed cutting and high rigidity.

Compared with smaller gantry machines, the YSMV-3021 offers a larger machining range and higher load capacity, while remaining more space-efficient and cost-effective than heavy-duty large gantry machines.

Double Column CNC Machine Parameters

Model			YSMV-3021
Subject	Specifications	Units
Travel	X-Axis	mm	3000
	Y-Axis	mm	2100
	Z-Axis	mm	1000
	Spindle Nose to Worktable	mm	200-1200
	Three-Axis Guideway		X/Y/Z Heavy Load Roller Linear Guideway
	Door Width		2100
	Type of Ram		T-Type
Worktable	Worktable Size(L*W)	mm	3200*1700
	Maximum Table Load	t	8
	T-Slot	mm	9-22*180
Spindle	Spindle Type	type	BBT-50
	Spindle R.P.M.	rpm	6000
	Spindle Drive Type		DDS
Feedrate	Rapid Traverse (X/Y/Z)	m/min	12/15/15
Feedrate	Cutting Feedrate (X/Y/Z)	m/min	12
Tool Changer	ATC		24 (Option: 40/60)
Motor	Spindle Motor	KW	15/18.5(143-236 Nm)
Motor	Three-Axis Servo Motor	KW	3/3/3 (36 Nm)
Accuracy	Accuracy	mm	0.03/0.02/0.015
Accuracy	Repeatability	mm	0.018/0.015/0.01
Power Required	Power Requirement	kva	45
Power Required	Air Pressure Requirement	kg/cm2	6^8
Others	External Dimensions (LWH)	mm	844058505350
Others	Gross Weight	t	28

YSMV-3021 Double Column CNC Machine Application

The YSMV-3021 gantry CNC machining center is widely used in industries that require machining medium to large-sized workpieces with high precision and stability.

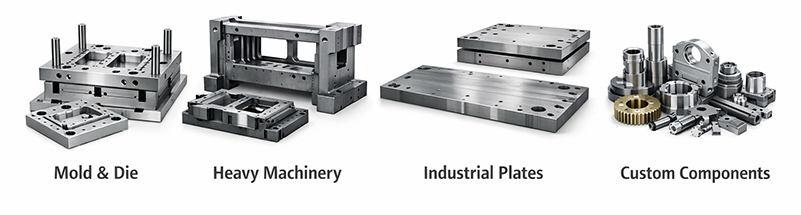

In the mold and die industry, it is suitable for processing medium-sized mold bases, die plates, and cavity components, ensuring stable accuracy during complex machining operations.

In heavy machinery manufacturing, the machine is commonly used for structural frames, equipment bases, and mechanical components that require both rigidity and precision.

It is also applicable in general industrial manufacturing for machining metal plates, structural parts, and custom components, providing a balanced solution for flexible production needs.
