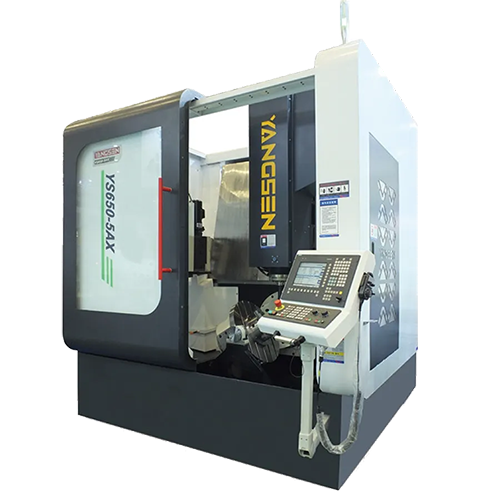

Five-Axis Machining Center CNC Machining YS650-5AX

Five-Axis Machining Center CNC Machining YS650-5AX

5-axis machining provides infinite possibilities as to the part sizes and shapes you can effectively process. The term "5-axis" refers to the number of directions in which the cutting tool can move. On a 5-axis machining center, the cutting tool moves across the X, Y and Z linear axes as well as rotates on the A and B axes to approach the workpiece from any direction. In other words, you can process five sides of a part in a single setup.


  • Max. X-axis Travel :

  • Max. Y-axis Travel :

  • Max. Z-axis Travel :

  • Max Workpiece Length :

  • Max Workpieces Weight :

  • Application :

    Precision Mold, Bathroom Products
  • Processing :

    Engraving, Milling
Structure Characteristics
The five-axis machining center is equipped with five-axis linkage RTCP tool tip following function, TCP can directly command the movement path of the tool front point, which is convenient for programming. It is widely used in the fields of multi-angle deep cavity slot molds, aircraft impellers, blades, automobile tires, and gear processing.

5-Axis Linkage + RTCP Processing Advantage:
  • Program pre-reading function: avoid pauses during program segment conversion, realize constant path speed and smooth speed to achieve the best surface quality;
  • Continuous path mode: intelligently control the trajectory at the junction of the program segments to eliminate pauses to reduce processing time;
  • Dynamic feedforward control: avoid track deviation caused by compensating follow-up error and no loss of accuracy due to increased speed;
  • Dynamic compressor: Compress G0/G1/G2/G3 blocks into a 5-degree polynomial spline curve within the specified tolerance, and smooth the processing path with constant curvature.

Features of the Whole Machine:

  • Equipped with German Siemens 840D system, five-axis linkage, and powerful functions;
  • Equipped with DD motorΦ650 five-axis rotating worktable, which can realize high-speed cutting processing, and installs direct drive mode. it does not cause precision errors through worm gear transmission and achieves high-precision positioning.
  • Use servo tool magazine, the tool change time is shortened to 1.4S. Also, the tool arm is controlled by the frequency converter, which effectively improves the processing efficiency of the product.The machine tool parts belong to the name brand. We have the top configuration in the industry.

Frame Achine Characteristics:

  • The castings of the machine body are made of HT300 resin sand, which has undergone overall annealing, natural aging and two high-frequency vibration aging treatments, which has high rigidity, high stability. It could achieve the effect of not deforming for a long time.
  • Equipped with high-speed and high-precision electric spindle HSK-A63 spindle with 20,000 rpm to ensure high-speed cutting ability.
  • X, Y, Z three-axis installs high-precision ballscrew pairs to ensure the machining accuracy of the machine tool. It has the characteristics of fast response, good stability, high transmission accuracy, high component rigidity, low friction and it can eliminate transmission gaps.
Customized YS650-5AX Parameters
Model YS650-5AX
Subject Specifications Units
Travel X/Y/Z axis mm 700/450/400
Spindle Nose to Worktable mm 200-600
Spindle Center to Column mm 400
Three-Axis Guideway / Roller Linear Guideway
Worktable Worktable Size (L*W) mm Φ650
Maximum Table Load kg 200
Countertop bolt hole mm /
T-Slot mm 5-18x100
Worktable Indexing / 0.001°
Spindle Spindle taper type HSKA63
Spindle speed rpm 18000
Spindle Drive Type / Built-In
Feedrate Rapid Traverse (X/Y/Z) m/min 30/30/30
Cutting Feedrate (X/Y/Z) m/min 10
Tool Changer Automatic Tool Changer / ARM
Motor Spindle Motor kw 20
Three-Axis Servo Motor kw 30/30/30
Accuracy Accuracy mm ±0.005
Repeatability mm ±0.003
Power Required Power Requirement kva 30
Air Pressure Requirement kg/cm² 6^8
Others External Dimensions (L*W*H) mm /
Gross Weight t 12

Standard Accessories

Safety Door Dual LED Work Light Spindle Nose Air Blow Automatic Lubricating System
Heat Exchange for Electric Cabinet LED 3 Color Warning Light Leveling Bolts and Pads Fully Enclosure Guard
Coolant Tank Chip Tray Air Gun

Coolant Gun

M30 Auto Off



Optical Linear Scale Tool Breakage System Oil Mist Collector CTS
Oil Skimmer Workpiece &Tool Probe

Arm Type Tool Changer
