Vertical lathes, or VTLs, are one of the most traditional machine types. They are ideal for heavy-duty machining of medium to large parts. With different technologies, vertical lathes are also becoming more and more multifunctional. Our vertical lathe increases productivity by providing stable machining of thin and odd-shaped workpieces. The box-type base and column make a highly dependable, highly rigid structure and the headstock with flange construction minimizes the effects of thermal deformation and vibration, which ensures stable, accurate cutting.
Max. X-axis Travel :
700mmMax. Y-axis Travel :
550mmMax. Z-axis Travel :
500mmMax Workpieces Weight :
6800KGApplication :
Precision Mold, Auto Parts, Aerospace EngineeringProcessing :
Surface Milling, Drilling Holes, Tapping

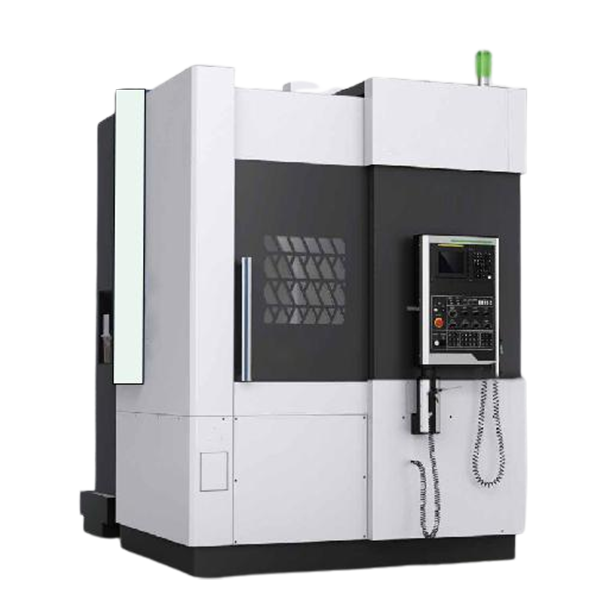

YSLC-500 Vertical Lathe Structural Characteristics
 |
Vertical lathes, or VTLs, are one of the most traditional machine types. They are ideal for heavy-duty machining of medium to large parts. With different technologies, vertical lathes are also becoming more and more multifunctional. Our vertical lathe increases productivity by providing stable machining of thin and odd-shaped workpieces. The box-type base and column make a highly dependable, highly rigid structure and the headstock with flange construction minimizes the effects of thermal deformation and vibration, which ensures stable, accurate cutting.
|
Vertical Lathe Parameters
| Item | Unit | Specification | Remarks | ||
| Max rotation diameter | mm | 700 | |||
| Max turning height | mm | 550 | |||
| Max turning diameter | mm | 500 | |||
| Spindle bore diameter | mm | ￠62 | |||
| Max Bar Processing Diameter | mm | ￠52 | |||
| Spindle end type and code | A2-8 | ||||
| Single spindle headstock | Spindle speed range | r/min/Nm | 50～3000 | FANUC 0i -TF | |
| Main motor output power | 30 min/continuous | kW | 15/18.5 | βIIP30/8000 | |
| Second motor output power | 30 min/continuous | kW | 5.5/11 | Βii6/12000 | |
| Standard chuck | Chuck diameter | inch | 8² | ||
| X-axis rapid traverse speed | m/min | 20 | Rolling guide | ||
| Z-axis rapid traverse speed | m/min | 20 | Rolling guide | ||
| W-axis rapid traverse speed | m/min | 18 | Rolling guide | ||
| X-axis travel | mm | -12~430 | |||
| Z- axis travel | mm | 550 | |||
| Tool | Servo Turret 8T | ||||
| Tool size | Outer circle tool | mm | 20/20 | ||
| Boring bar diameter | mm | Ф32 | |||
| Choose the nearest cutter | Yes | ||||
| Weight | Gross weight | kg | 6800 | ||
| Max load | Disc type piece | kg | 250 (including machine tool accessories such as chucks) | ||
| Shape | L*W*H | mm | 2300*4450*2970 | Without cooling chip removal | |
