Yangsen is proud to offer you top-of-the-line double-column machining centers. Find the ideal product for your specific requirements. The solid double-column construction ensures greater rigidity and closer tolerances, making this machine well-suited for the efficient machining of general parts and rapid die & mold jobs.
Max. X-axis Travel :
5000mmMax. Y-axis Travel :
2100mmMax. Z-axis Travel :
1000mmMax Workpiece Length :
5000mmMax Workpieces Width :
1700mmMax Workpieces Weight :
12TApplication :
Medical IndustryProcessing :
Drilling, Tapping, Milling, Surface MillingThe YSMV-5021 double-column gantry machining center is designed for machining large and heavy workpieces with high precision and stability. With 5000 mm X-axis travel and high load capacity, it is ideal for industries that require large-scale processing of structural parts. A fixed beam gantry machining center is a CNC machine where the cross beam remains fixed while the worktable moves along the X-axis. This structure provides excellent rigidity and stability, making it highly suitable for heavy cutting and high-precision machining of large workpieces.
YSMV-5021 Double Column CNC Machine Features
1. Ultra-wide base of X axis with thick, high-rigidity table enhances table load capacity and ensures the best dynamic level accuracy.
2. The large stepped design of the Y axis makes guide ways close to the beam and spindle, which effectively increases the rigidity of the cutting load
3. Z-axis 15m rapid traverse, high acceleration/deceleration performance to achieve contour accuracy of high-speed mold machining.
4. Spindle and thermal compensation function for environmental temperature change can be chosen to ensure the accuracy change within 0.02mm, which is influenced by environmental temperature change.
CNC double-column machining centers are most suitable for processing large parts, such as marine parts. This machine is suitable for processing machinery and mold manufacturing in the field of vertical machining centers, from rough machining to finish machining, and processing requirements apply, and can finish milling, drilling, tapping, boring, and a variety of processes.
 |

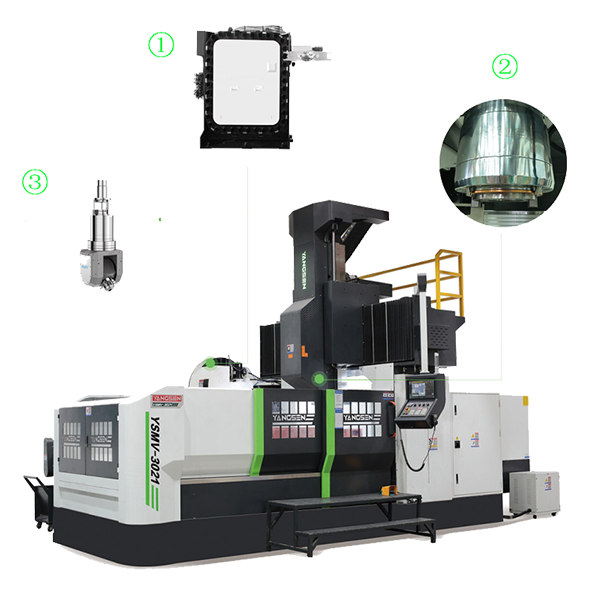

① Vertical and horizontal tool magazine
② Spindle Using BBT50- © 200 high rigidity spindle, 6 imported large steel ball bearings, super cutting ability.
③ Five-axis linkage double swing milling head AC axis torque motor + electric spindle fork-shaped integrated structure; AC axis installs torque motor structure; AC axis hydraulic holding for high-speed cutting and high rigidity. |
Double Column CNC Machine Parameters
|
Model |
YSMV-5021 |
||
|
Subject |
Specifications |
Units |
|
|
Travel
|
X-Axis |
mm |
5000 |
|
Y-Axis |
mm |
2100 |
|
|
Z-Axis |
mm |
1000 |
|
|
Spindle Nose to Worktable |
mm |
200-1200 |
|
|
Three-Axis Guideway |
|
X/Y/Z Heavy Load Roller Linear Guideway |
|
|
Door Width |
|
2100 |
|
|
Type of Ram |
|
T-Type |
|
|
Worktable |
Worktable Size(L*W) |
mm |
5000*1700 |
|
Maximum Table Load |
t |
12 |
|
|
T-Slot |
mm |
9-22*180 |
|
|
Spindle |
Spindle Type |
type |
BBT-50 |
|
Spindle R.P.M. |
rpm |
6000 |
|
|
Spindle Drive Type |
|
DDS |
|
|
Feedrate |
Rapid Traverse (X/Y/Z) |
m/min |
12/15/15 |
|
Cutting Feedrate (X/Y/Z) |
m/min |
12 |
|
|
Tool Changer |
ATC |
|
24 (Option: 40/60) |
|
Motor |
Spindle Motor |
KW |
15/18.5(143-236 Nm) |
|
Three-Axis Servo Motor |
KW |
6/3/3 (38/36/36 Nm) |
|
|
Accuracy |
Accuracy |
mm |
0.03/0.02/0.015 |
|
Repeatability |
mm |
0.018/0.015/0.01 |
|
|
Power Required |
Power Requirement |
kva |
50 |
|
Air Pressure Requirement |
kg/cm2 |
6^8 |
|
|
Others |
External Dimensions (L*W*H) |
mm |
11600*5850*5420 |
|
Gross Weight |
t |
36 |
|

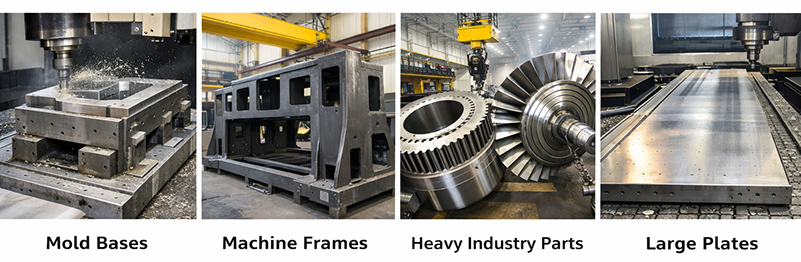

Double Column Gantry CNC Application
The YSMV-5021 gantry CNC machining center is widely used for machining medium to large-sized structural parts that require high rigidity and stable precision. It is especially suitable for processing components such as mold bases, large plates, machine frames, and heavy-duty industrial parts. With its large working area and high load capacity, the machine enables efficient machining of oversized workpieces in a single setup, reducing repositioning and improving overall machining accuracy.
Standard Accessories
|
Rigid Tapping Automatic Lubricating System Semi-Enclosed Guard |
Dual LED Work Light Heat Exchange for Electric Cabinet Dual-Screw Type Chip Conveyor |
Spindle Nose Air Blow LED 3 Color Warning Light Chain Type Chip Conveyor and Cart |
M30 Auto Off Leveling Bolts and Pads |
Options
|
Optical Linear Scale CTS 40T ATC |
Tool Breakage System Chip Conveyor System Rotary Table |
Oil Mist System Oil Skimmer 90° Manual Milling Head |
Air Conditioner Auto Parts Probe Measuring System 90° Auto Milling Head with AHC |
