•High rigidity
•High efficiency
•High configuration
Max. X-axis Travel :
260mmMax. Y-axis Travel :
280mmMax. Z-axis Travel :
200mmMax Workpiece Length :
800mmMax Workpieces Width :
700mmMax Workpieces Weight :
800KGApplication :
Auto Parts, Bathroom ProductsProcessing :
Drilling, Tapping, Milling |
High Rigidity
The compact double-column structure design;It ensures stability and accuracy during high-speed processing.
High Efficiency 4 parts can be processed at the same time; 4 pcs of Φ125-BT30 motor spindles with a maximum speed of 24000rpm, equipped with 32 tool magazines, high surface quality and high processing efficiency High Configuration The Mitsubishi E80A system is stable, high-speed, and high-precision; The three-axis motor is upgraded to 1.5KW (HG153), and the high-power torque motor can better adapt to the high rigidity characteristics of the machine tool; The machine tool is equipped with name brand components, such as Taiwan roller linear guideway, Schneider Electric, Taiwan AirTac pneumatic components. |
 |
 |
| CPU heat sink | Polished surface of heat sink |
Automatic Tool Changing Video

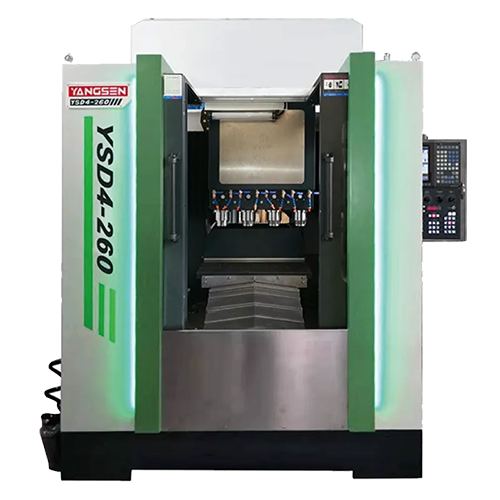

Customized YSD4-260 Parameters
| Model | YSD4-260 | ||
| Subject | Specifications | Units | |
| Travel | X/Y/Z axis | mm | 260/280/200 |
| Spindle Nose to Worktable | mm | 150-350 | |
| Spindle Center to Column | mm | 810 | |
| Three-Axis Guideway | / | Roller Linear Guideway | |
| Worktable | Worktable Size (L*W) | mm | 810 |
| Maximum Table Load | kg | 800 | |
| Countertop bolt hole | mm | / | |
| T-Slot | mm | 5-16x120 | |
| Worktable Indexing | / | / | |
| Spindle | Spindle taper | type | BT30 |
| Spindle speed | rpm | 24000 | |
| Spindle Drive Type | / | Built-In | |
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 2012-12-12 |
| Cutting Feedrate (X/Y/Z) | m/min | 10 | |
| Tool Changer | Automatic Tool Changer | / | 直排式 |
| Motor | Spindle Motor | kw | 7.5*4 |
| Three-Axis Servo Motor | kw | 1.5/1.5/1.5 | |
| Accuracy | Accuracy | mm | ±0.005 |
| Repeatability | mm | ±0.003 | |
| Power Required | Power Requirement | kva | 5 |
| Air Pressure Requirement | kg/cm² | 6^8 | |
| Others | External Dimensions (L*W*H) | mm | 2100*2100*2550 |
| Gross Weight | t | 4.8 | |
Standard Accessories:
| Safety Door | Dual LED Work Light | Spindle Nose Air Blow | Automatic Lubricating System |
| Heat Exchange for Electric Cabinet | LED 3 Color Warning Light | Leveling Bolts and Pads | Fully Enclosure Guard |
| Coolant Tank & Chip Tray | Air Gun |
Coolant Gun |
M30 Auto Off |
Options
| Optical Linear Scale | Tool Breakage System | Oil Mist Collector | CTS |
| Oil Skimmer | Workpiece &Tool Probe |
Arm Type Tool Changer |
