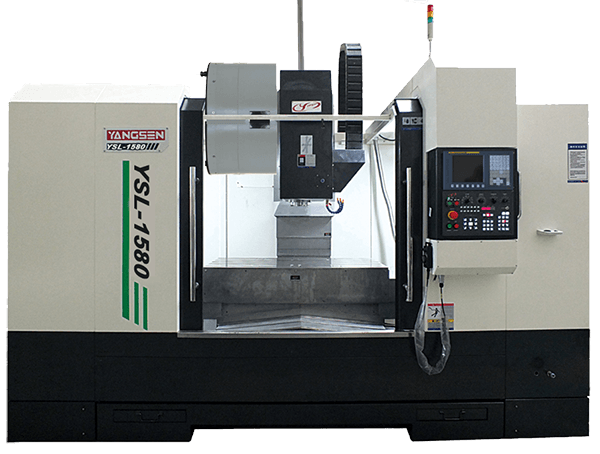

Vertical Machining Center VMC Machine YSL-1580

Vertical Machining Center VMC Machine YSL-1580

Vertical CNC machining centers perform reliably and efficiently in manufacturing and production sectors of metal working across automotive, mechanical engineering, and medical technologies. From the universally applicable vertical versions to the 5 axis vertical machining centers, every machine has automatic tool changers and state-of-the-art CNC control technology. From portal milling machines with large traverse paths to compact machines with small space requirements.



  • Max. X-axis Travel :

    1500mm
  • Max. Y-axis Travel :

    800mm
  • Max. Z-axis Travel :

    700mm
  • Max Workpiece Length :

    1700mm
  • Max Workpieces Width :

    800mm
  • Max Workpieces Weight :

    1500KG
  • Application :

    Auto Parts, Aerospace Engineering
  • Processing :

    Surface Milling, Drilling Holes, Tapping

Vertical Machining Structural Characteristics

Vertical CNC machining centers perform reliably and efficiently in manufacturing and production sectors of metal working across automotive, mechanical engineering, and medical technologies. From the universally applicable vertical versions to the 5 axis vertical machining centers, every machine has automatic tool changers and state-of-the-art CNC control technology. From portal milling machines with large traverse paths to compact machines with small space requirements.





Machine Cutting Performance

Surface Milling

Steel 45#

Drilling Holes

Steel 45#

    Tapping

Steel 45#

Cutting depth

7mm

Cutter diameter

Ø80

Tapping

M30

Cutter

Ø125mm*5T

Cutter

Ø80mm*2T

Cutter

M30*3P

Spindle speed

550rpm

Spindle speed

800rpm

Spindle speed

120rpm

Feed

F500

Feed

F100

Feed

F420

Width

80mm

Width

80mm

Width

50mm



Vertical Frame Machine Structural Characteristics

Japan NBK coupling/Japan NSK bearing Taiwan PMI outer diameter 50mm C3 grade ballscrew

1. Ballscrew pre-tensioning treatment to prevent hot stretch.

2. Box-way design at the rear of the spindle head, triangular structure, Z-axis 6-slider support, super rigid.

3. Install Taiwan Φ155 high rigidity BBT50, 6000rpm, 6 bearings, coolant nozzles design.

4. Three-axis travel X: 1300/Y: 750/Z: 680 Reserved for optical linear scales installation.

5. The Y-axis is supported by 4 German Rexroth ball linear guideway for maximum rigidity and accuracy.

6. Worktable: 1360*700 mm

7. BF Gearbox. Optional Italian BF gearbox, super cutting ability, high and low gear functions, stepless gear change.

The bad is made of precision HT300 high grade cast iron


Vertical Frame Machine Structural Characteristics
Model YSL-1580
Subject Specifications Units
Travel X/Y/Z axis mm 1500/800/700
Spindle Nose to Worktable mm 130-830
Spindle Center to Column mm 810
Three-Axis Guideway / X/Y Roller Linear Guideway & Z Box Way
Worktable Worktable Size (L*W) mm 1700x800
Maximum Table Load kg 1500
T-Slot mm 5-22x135
Spindle Spindle taper type BBT-50
Spindle speed rpm 6000
Spindle Drive Type / Belt
Feedrate Rapid Traverse (X/Y/Z) m/min 20/20/10
Cutting Feedrate (X/Y/Z) m/min 10
Tool Changer Automatic Tool Changer / ARM Type
Type of Tool Shank type BT50
Tool Storage Capacity Piece 24
Max. Tool Diameter (Adjacent) mm 105
Max. Tool Diameter (Empty) mm 200
Max. Tool Length mm 350
Max. Tool Weight kg 15
Tool Change Time sec 4.9
Motor Spindle Motor kw 18.5
ITree-Axis Seiw Motor kw 7.0/4.5/4.5
Accuracy Accuracy mm ±0.005/300
Repeatability mm ±0.003
Power Required Power Requirement kva 35
Air Pressure Requirement kg/cm² 6^8
Others External Dimensions (L*W*H) mm 4300x2996x2837
Gross Weight t 13



Standard Accessories

Safety Door

Automatic Lubricating System

Fully Enclosure Guard

Air Gun

Rigid Tapping

Heat Exchange for Electric Cabinet

Spindle Coolant Nozzles

Coolant Gun

Dual LED Work Light

LED 3 Color Warning Light

Coolant Tank & Chip Tray

Tool Box

Spindle Nose Air Blow

Leveling Bolts and Pads

M30 Auto Off

Maintenance and Operational Manual



Options

Optical Linear Scale

CTS

Workpiece & Tool Probe

Coolant Gun

Tool Breakage System

Chip Conveyor System

Oil Mist Collector

Oil Skimmer

Rotary Table

12000rpm DDS Spindle

15000rpm DDS Spindle

HSK-63-18000 Built-In Moto
