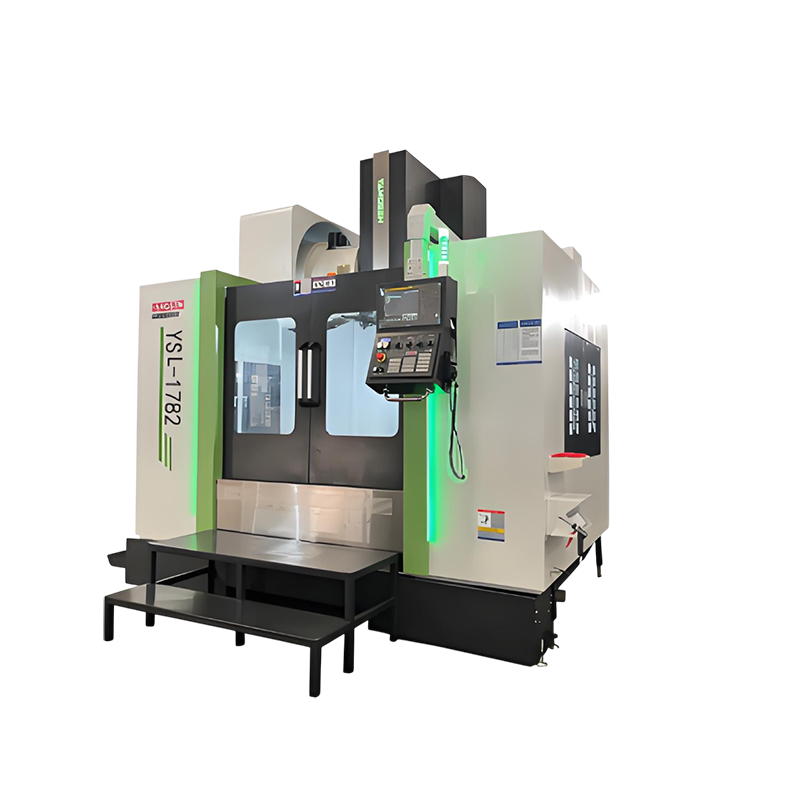

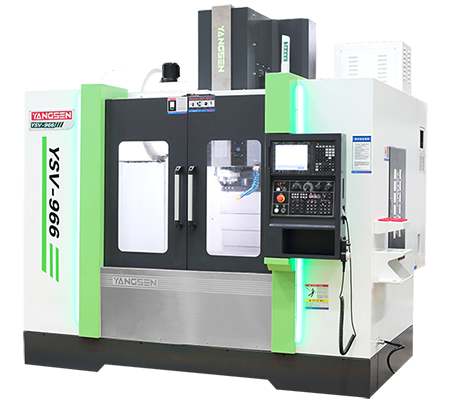

Vertical machining center is a machining center whose spindle axis and worktable are set vertically. It can perform various vertical processing, such as milling, drilling, boring, tapping, cutting and other operations. It is mainly suitable for processing complex parts such as plates, discs, molds and small shells.
Max. X-axis Travel :
900mmMax. Y-axis Travel :
600mmMax. Z-axis Travel :
600mmMax Workpiece Length :
1020mmMax Workpieces Width :
570mmMax Workpieces Weight :
800KGApplication :
Precision Mold, Auto Parts, Aerospace EngineeringProcessing :
Surface Milling, Drilling Holes, TappingVertical Machining Structural Characteristics
 |
Vertical machining center is a machining center whose spindle axis and worktable are set vertically. It can perform various vertical processing, such as milling, drilling, boring, tapping, cutting and other operations. It is mainly suitable for processing complex parts such as plates, discs, molds and small shells.Vertical Machining Center offers different styles of automatic tool changers as well. The most common style is the umbrella style. This is where the tool holders are loaded into the carousel vertically. The other style is a drum or side-mount style. |
Machine Cutting Performance
|
Surface Milling |
Steel 45# |
Drilling Holes |
Steel 45# |
Tapping |
Steel 45# |
||
|
Cuttin 5mm |
|
Cutter diameter Ø60 |
|
Cutting Tapping M24 |
|
||
|
Cutter |
Ø125mm*5T |
Cutter |
Ø60mm*2T |
Cutter |
M24*3P |
||
|
Spindle speed |
1000rpm |
Spindle speed |
1200rpm |
Spindle speed |
150rpm |
||
|
Feed |
F600 |
Feed |
F100 |
Feed |
F450 |
||
|
Width |
56mm |
Width |
60mm |
Width |
40mm |
||
Vertical Frame Machine Structural Characteristics
 |
1. Three-axis adopts Japanese THKΦ40-C3 grade screw, three-axis adopts NSK original bearing (3062), 3+2 mode, pre-tensioning treatment to prevent thermal displacement. 2. BBT40 outer diameter 150mm high rigidity 10000rpm short nose spindle. It adopts 5 bearings, standard spindle coolant nozzles, and an optional HSK-63 electric spindle. 3. Worktable 1020*570 mm 4. Three-axis travel X:900/Y:570/Z:680. The reserved installation position of the Optical Linear Scales can be equipped with a hollow oil-cooled ballscrew. 5. Optical Linear Scales. Optional Heidenhain, Fagor optical linear scales, accuracy ±5um, to ensure the positioning accuracy of the machine tool. 6. It installs Japanese THK or German Rexroth linear guideway, the linear guideway width is up to 45mm. 7. Column double-layer arm structure, better rigidity. 8. Standard Air Counter Balance System processing is more stable. |
Vertical Machining Centers Parameters
| Model | Spec | Units | YSV-966 |
| Travel | X/Y/Z | mm | 900/600/600 |
| Spindle Nose to Worktable | mm | 120-720 | |
| Spindle Center to Column | mm | 610 | |
| Worktable | Size（L*W) | mm | 1020*570 |
| Max. Weight on Table | kg | 800 | |
| T-Slot | mm | 5-18×90 | |
| Spindle | Spindle Taper | mm | BBT40 |
| Speed | rpm | 10000 | |
| Transmission Type | BLET | ||
| Feedrate | X/Y/Z Rapid Feedrate | m/min | 36/36/36 |
| Cutting FeedRate | m/min | 10000 | |
| Tool Changer ( Optional ) | Tool Change Mood | Arm | |
| Specification | type | BBT | |
| Tool Storage Capacity | tools | 24 | |
| Motor | Spindle | kw | βiI 8/12000 |
| 3-Axis Servo Motor | kw | βiSC 12/3000/βiSC 12/3000/βiSB22/3000 | |
| Water Pump Motor | m/h-m | 4-60 | |
| Accuracy (GB/T 19362.1—2003） | Positioning Accuracy | mm | ±0.005 |
| Repeated Positioning Accuracy | mm | ±0.003 | |
| Power Required | Electric Requirement | kva | 20 |
| Air Pressure Requirement | Kg/cm | 6~8 | |
| Measurements | L*W*H | mm | 2530*2350*2559 |
| Weight | t | 6 |
|
Semi-Enclosed Guard Auto Lubrication System Volumetric Type Automatic lubricator Handwheel RS 232 code |
Air Gun Rigid tapper Leveling Bolts and Leveling Block Heat Exchange for Electric Cabinet |
Mechanical oil coolant separator Swiveling Control Box Low Energy working light Transformer |
Spindle oil Coolant Auto power off Tool Box Operation Manual |
Options
|
Spindle RPM CTS |
ZF Gear box or Full Gear Controller option ( SINUMERIK 840D ) |
Spindle Taper ( HSK/ISO/CAT/BT ) Extended Head |
Automatic tool changer
|
