The square ram gantry machining center adopts imported electrical components to ensure the safety and stability of the electrical system. The spindle components adopt an external circulating constant temperature cooling system, which improves the thermal stability of the machine tool.
Max. X-axis Travel :
5000mmMax. Y-axis Travel :
3200mmMax. Z-axis Travel :
1000mmMax Workpiece Length :
4600mmMax Workpieces Width :
2600mmMax Workpieces Weight :
20TApplication :
Aerospace Engineering, Military Industry, Medical IndustryProcessing :
Drilling, Tapping, Milling, Surface MillingSquare-Type Ram Gantry CNC Machine Structure Characteristics
Our YSM series square ram gantry machining center, on the basis of inheriting the advantages of the traditional gantry machine tool base frame with strong rigidity, structural symmetry, and strong stability, introduces the international advanced dynamic rigid design concept and optimizes the design of the moving parts. The machine tool has large torque and good fast response characteristics, which is suitable for the needs of various machining fields.
|
|

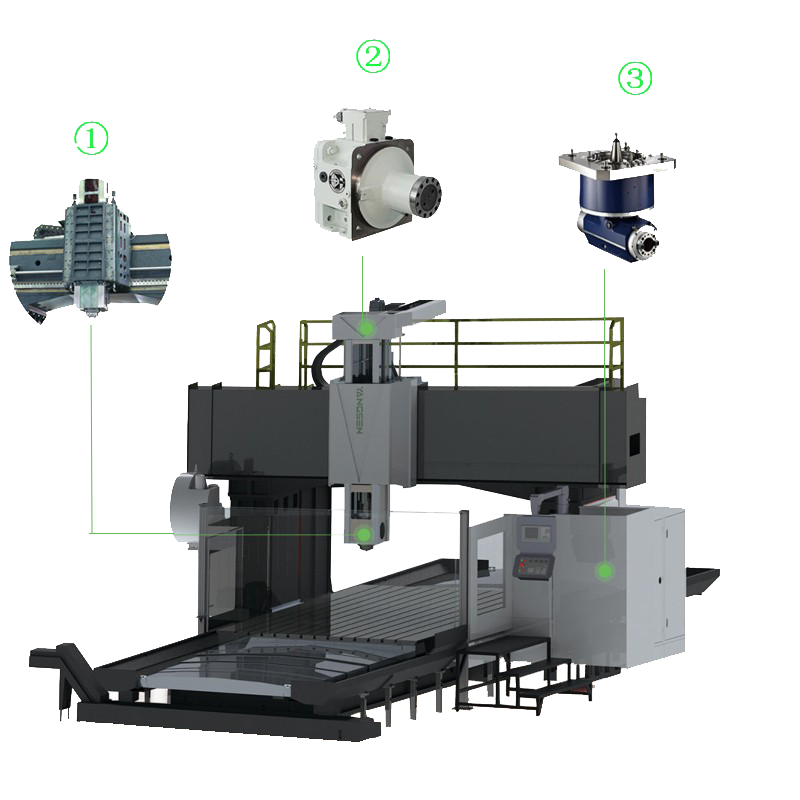

① Square ram structure 500X500MM The machine installs a four-sided restraint quenching guide guideway and double-cylinder nitrogen balance device. The overall rigidity is strong. It has the strong cutting ability and stable precision.
② Italy BF gearbox High-performance speed, low noise, expandable motor constant power range with easy installation. It can be used in conjunction with multiple series of motors and adapt to high-strength tension.
③ Fully automatic side milling head The transmission gear is a Gleason spiral bevel gear. The transmission is stable and accurate. It has a long service life. The internal transmission key of the milling head is a quenched part with minimal backlash. |
| Model | YSM-5032 | ||
| Subject | Specifications | Units | |
| Travel | X-Axis | mm | 5000 |
| Y-Axis | mm | 3200 | |
| Z-Axis | mm | 1000 (Optional 1250/1500) | |
| Spindle Nose to Worktable | mm | 350-1350 | |
| Three-Axis Guideway | X/Y Heavy Load Roller Linear Guideway Z-Axis Square-Type Ram | ||
| Door Width | 3200 | ||
| Type of Ram | Square-Type Ram (500x500) | ||
| Worktable | Worktable Size(L*W) | mm | 4600*2600 |
| Maximum Table Load | t | 20 | |
| T-Slot | mm | 13-28*200 | |
| Spindle | Spindle Type | type | BBT-50 |
| Spindle R.P.M. | rpm | 6000 | |
| Spindle Drive Type | DDS | ||
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 10/10/10 |
| Cutting Feedrate (X/Y/Z) | m/min | 8 | |
| Tool Changer | ATC | 24 (Option: 40/60) | |
| Motor | Spindle Motor | KW | 22/26 (140-286 Nm) |
| Three-Axis Servo Motor | KW | 6/3/3 (38/36/36 Nm) | |
| Accuracy | Accuracy | mm | 0.035/0.025/0.015 |
| Repeatability | mm | 0.025/0.02/0.01 | |
| Power Required | Power Requirement | kva | 55 |
| Air Pressure Requirement | kg/cm² | 6^8 | |
| Others | External Dimensions (L*W*H) | mm | 11600*6450*5820(6320) |
| Gross Weight | t | 56 | |
Standard Accessories
|
Spindle Coolant System Automatic Lubricating System Semi-Enclosed Guard |
Rigid Tapping Heat Exchange for Electric Cabinet Dual-Screw Type Chip Conveyor |
Dual LED Work Light LED 3 Color Warning Light Chain Type Chip Conveyor and Cart |
Geared Box Leveling Bolts and Pads M30 Auto Off |
Options
|
Optical Linear Scale CTS 20T/40T/60T ATC |
Workpieces Probe Chip Conveyor System Rotary Table |
Oil Mist System Oil Skimmer |
Manual/Semi-Auto 90Milling Head Auto Parts Probe Measuring System |
