Application
|
Recommended Solution
|
|
|

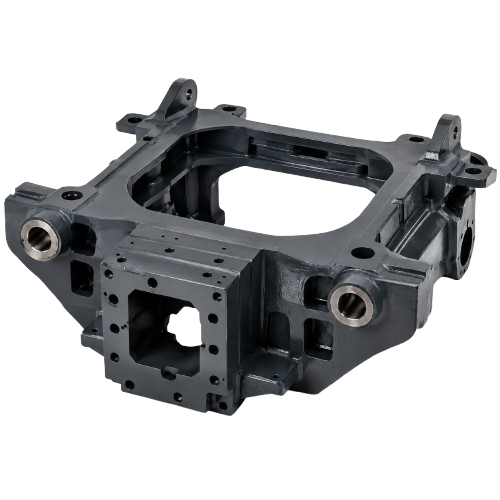

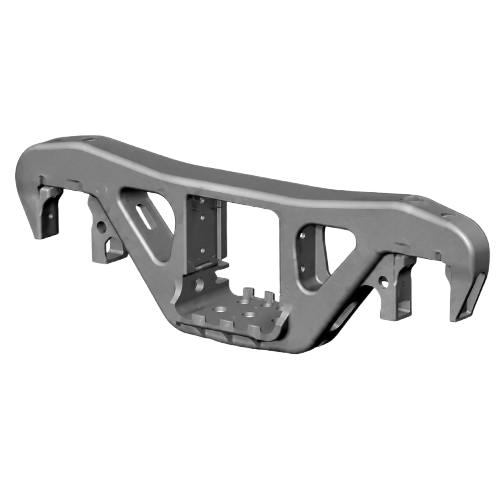

Bogie Side Frame |
|

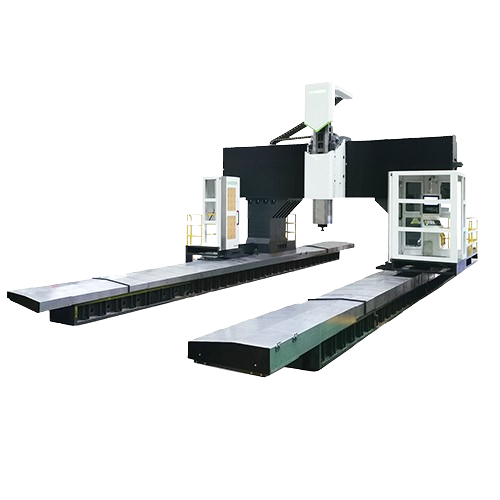

Gantry Machining Center Features: A heavy-duty square-ram structure enhances cutting rigidity during deep and heavy machining operations. Rack-and-pinion transmission design supports long-travel machining with low vibration and reliable operation. Optional automatic extension head and universal milling head increase flexibility for complex, large-part machining. XVP-20041
|
|

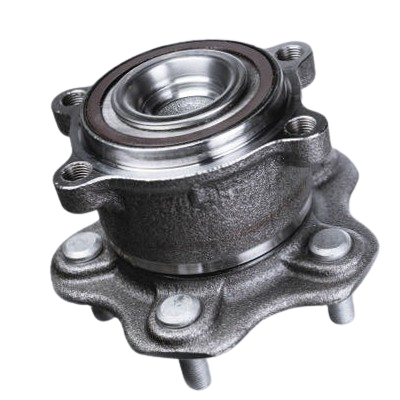

Wheelset Bearing Housing |
|

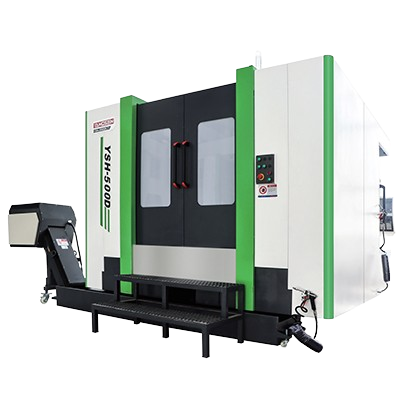

Horizontal Machining Center Features: High-speed roller linear guideways and rapid feed system provide stable high-precision machining performance during continuous heavy-duty cutting. One-piece reinforced T-type base and dual-wall column structure improve machine stability and vibration resistance. Suitable for precision molds, gearbox housings, valve bodies, energy components, and high-accuracy multi-face machining parts. YSH-500D
|
|

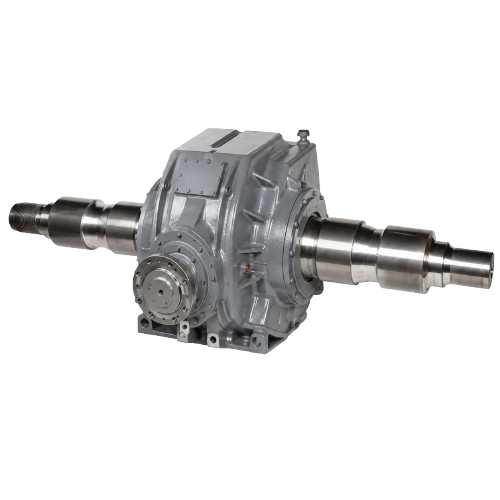

High-Speed Rail Gearbox Housing |
|

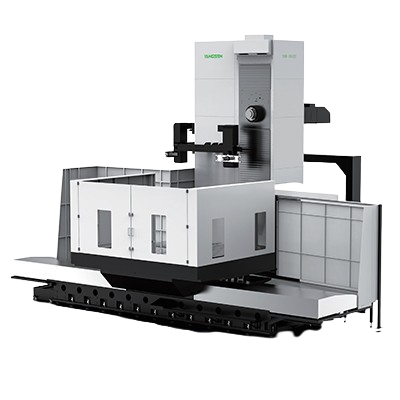

Horizontal Boring Machine Features: High-rigidity horizontal column structure provides stable heavy-duty boring and milling performance for large box-type workpieces. Box-in-box Y-axis guideway structure with four linear guide rails increases rigidity and maintains precision during continuous heavy machining. Suitable for gearbox housings, valve bodies, energy equipment parts, shipbuilding structures, and large precision box components. YSBD-130
|
|

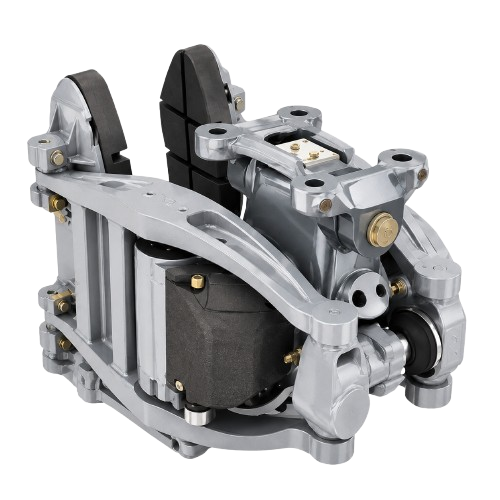

Railway Brake Caliper Body |
|

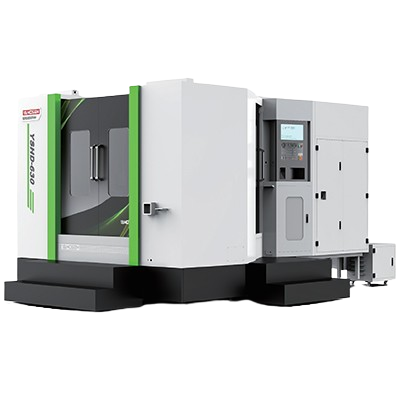

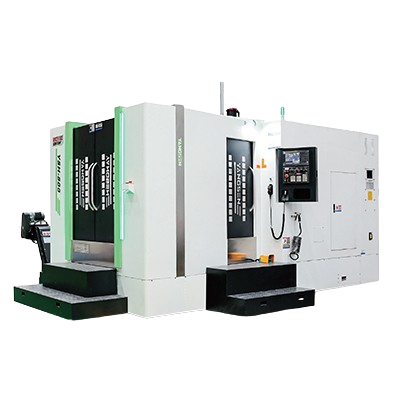

Horizontal Milling Machine Features: High-torque spindle with rapid pallet change system improves machining efficiency and reduces downtime during continuous production. Dual-pallet structure reduces non-cutting time and improves productivity in large-scale manufacturing environments. Widely used in Rail Transit, Energy Equipment, Heavy Machinery, and precision box-type component machining industries. YSHD-630
|
|

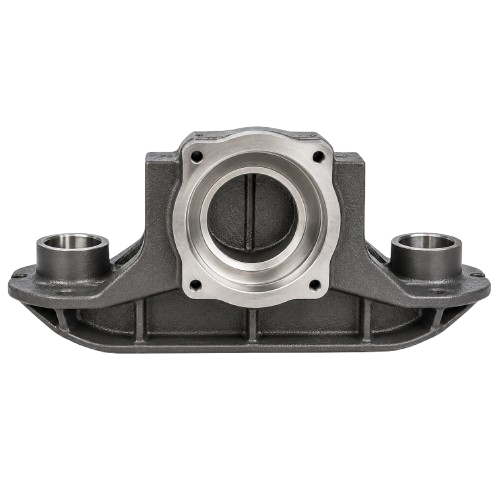

Train Axle Box |
|
Horizontal CNC Mill Features: High-rigidity machine structure and heavy-duty spindle design provide stable cutting performance for large box-type and high-load workpieces. Dual-pallet system and automatic tool changer improve machining efficiency and reduce downtime during continuous production. Suitable for railway gearbox housings, axle boxes, energy equipment parts, valve bodies, and heavy-duty precision machining applications. YSH-800
|
|

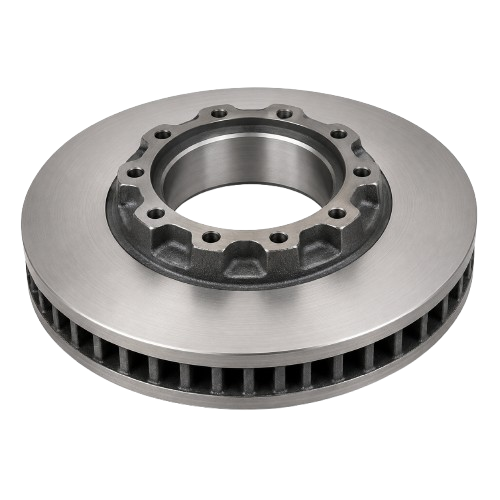

Train Brake Disc |
|

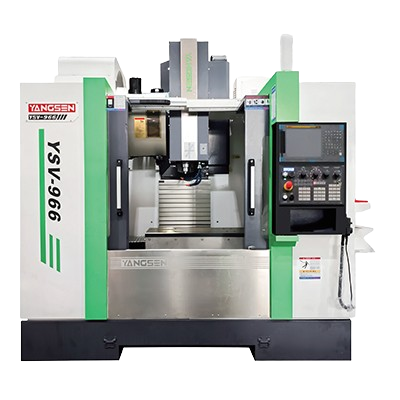

Vertical Machining Center Features: High-rigidity BT40 spindle delivers stable high-speed machining performance for precision parts and molds. THK ballscrews, NSK bearings, and optional optical linear scales improve positioning accuracy and machining stability. Suitable for rail transit brackets, 3C aluminum parts, brake components, and precision industrial machining applications. YSV-966
|
|
Train Coupler Mounting Frame |
|

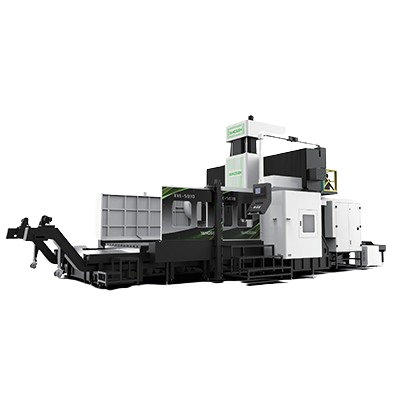

Gantry CNC Machine Features: High-rigidity gantry structure and reinforced square ram design provide stable heavy-duty machining performance for large workpieces. Optimized beam, column, and table structure improve load capacity and reduce vibration during continuous cutting operations. Suitable for rail transit structural parts, energy equipment, shipbuilding components, molds, and large heavy-duty machining applications. XVE-5030
|
|

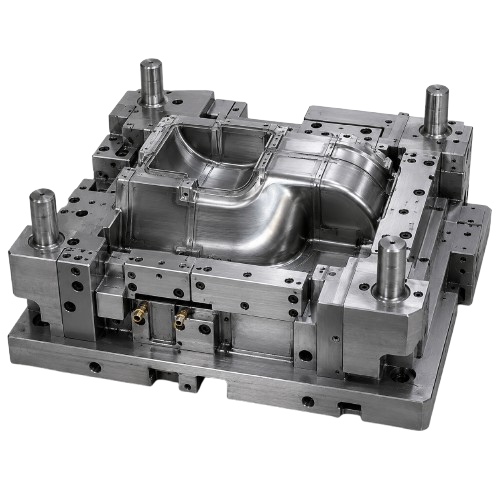

Complex Air Duct Mold |
|

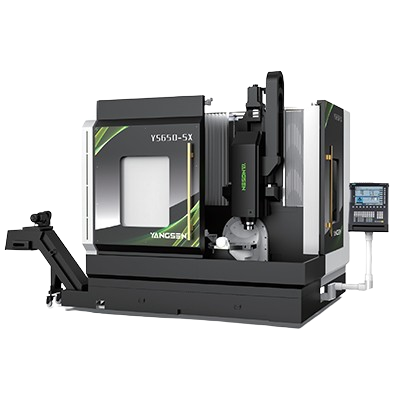

5-Axis Machining Center Features: Dual-DD trunnion table design improves positioning accuracy and supports smooth simultaneous 5-axis machining operations. Reinforced machine structure and optimized moving components enhance rigidity, dynamic response, and machining stability. Suitable for impellers, rail transit precision parts, aerospace components, energy equipment parts, and complex mold machining applications. YS650-5X
|
