Aerospace Industry-www.cncyangsen.com

Application

Recommended Solution

Turbine Wheel

Features:

5-axis simultaneous machining capability on X, Y, Z, B, and C axes allows efficient processing of complex aerospace components such as impellers and turbine blades.

High rigidity structure combined with precision rotary axes ensures stable machining performance and high surface quality for complex curved surfaces.

U-900

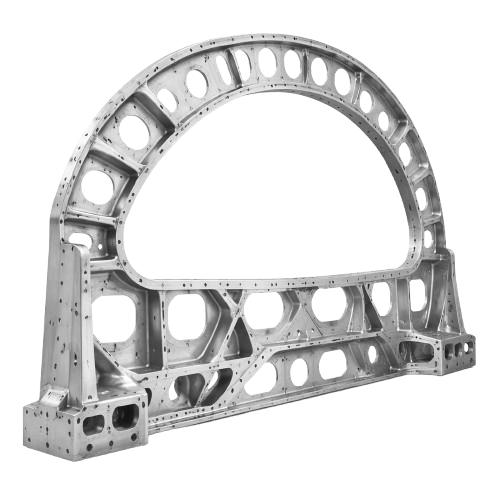

Aircraft Frame

Gantry Machining Center

Features:

Structural advantages: High rigidity & symmetrical stability

Performance: Optimized dynamics enable high-power, high-torque, efficient precision machining

Applications: Shipbuilding, Metallurgy, Mining, Power, Engineering & Heavy Machinery

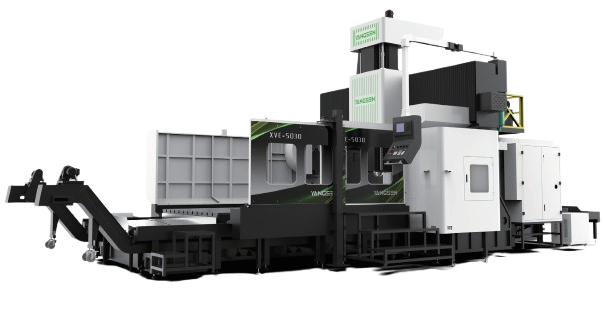

XVE-5030

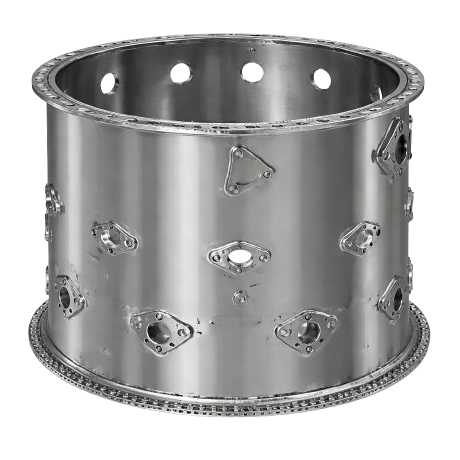

Engine Housings

Horizontal Machining Center

Features:

T-structure bed: Enhanced long-term accuracy (±0.005mm retention); reduced moving inertia for high-speed precision.

X-axis differential-height rails: Lowered column CG improves counterforce resistance; boosts boring accuracy.

Optimized for: High-tolerance batch production of complex box-type parts and structural components.

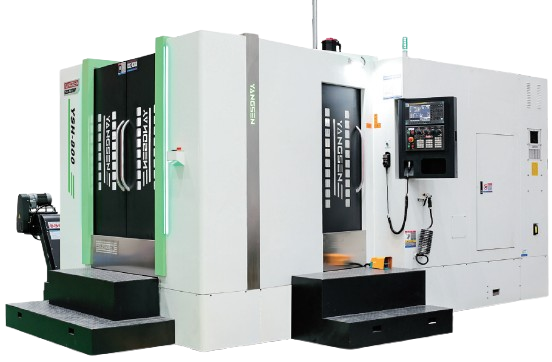

YSH-800

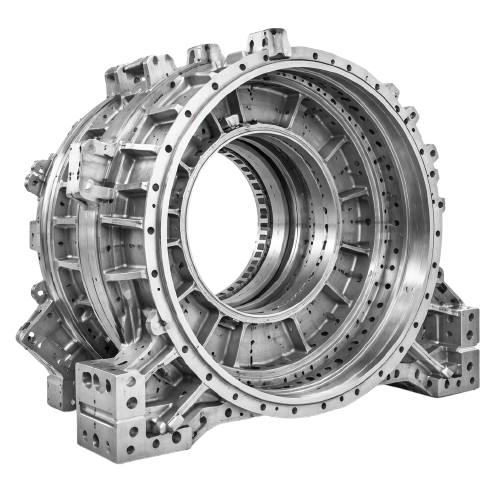

Engine Casing

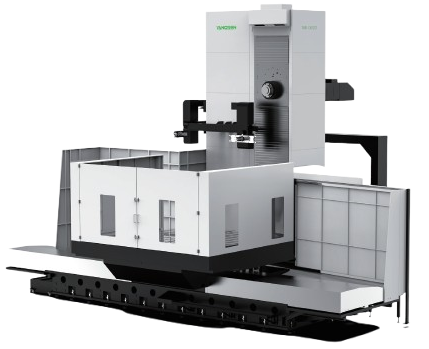

Horizontal Boring Machine

Features:

Primary Operations: Precision milling & boring; secondary: drilling, reaming, facing, OD turning

Specialization: Multi-bore systems & box-type components requiring exact bore spacing

Industrial Applications: Metallurgy · Energy · Shipbuilding · Aerospace (multi-process: boring /milling /drilling)

YSBD-130/15T

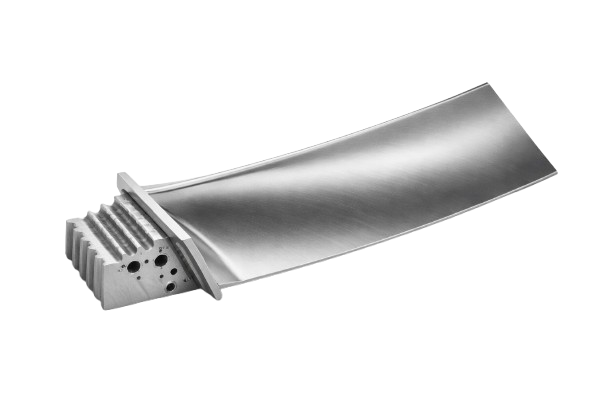

Compressor Blade

5-Axis Machining Center

Features:

Equipped with a high-speed and high-precision electric spindle HSK-A63 spindle with 20,000 rpm to ensure high-speed cutting ability.

X, Y, Z three-axis installs high-precision ballscrew pairs to ensure the machining accuracy of the machine tool.

It has the characteristics of fast response, good stability, high transmission accuracy, high component rigidity, low friction, and it can eliminate transmission gaps.

YS650-5AX

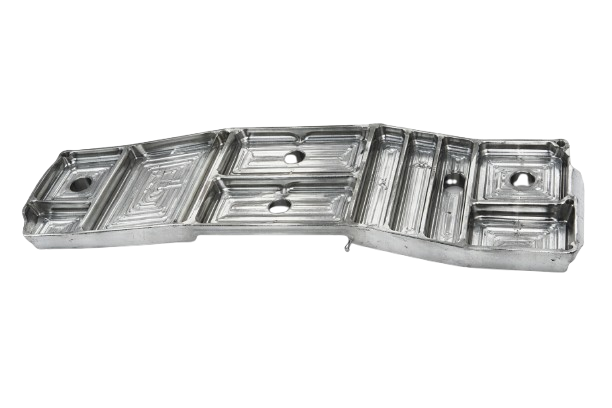

Aircraft Stiffeners

Gantry 5-Axis Machining Center

Features:

The bed, columns, beams, spindle box, etc. are all cast using high-strength cast iron materials and resin sand technology.

Simultaneous 5-axis movement enables efficient processing of complex surfaces and multi-angle aerospace structural parts.

Widely used in aerospace, automotive, mold manufacturing, and heavy equipment industries for high-precision large-part machining.

NHE-3028

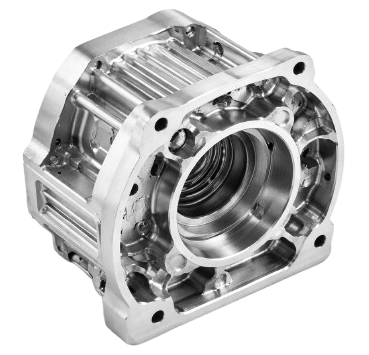

Actuator Housings

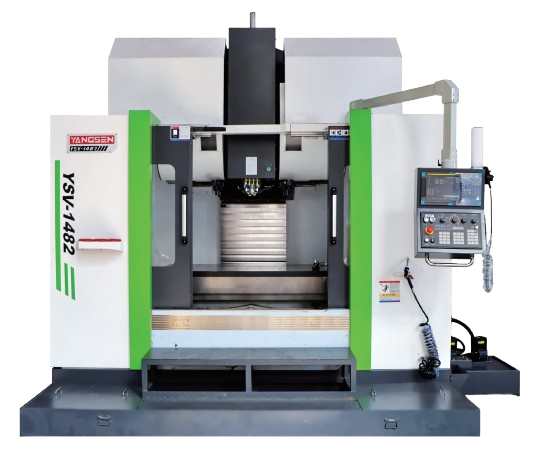

Vertical Machining Center

Features:

High-rigidity bed + 64-tool ATC: Compact footprint, enhanced capability

Multi-process precision: Aluminum/steel/exotics machining

Automated efficiency: Maximized uptime & ROI

YSV-1482
