Automotive Industry-www.cncyangsen.com

Application

Recommended Solution

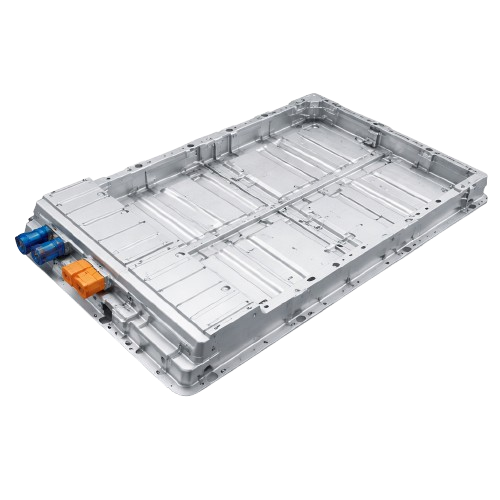

Battery Tray

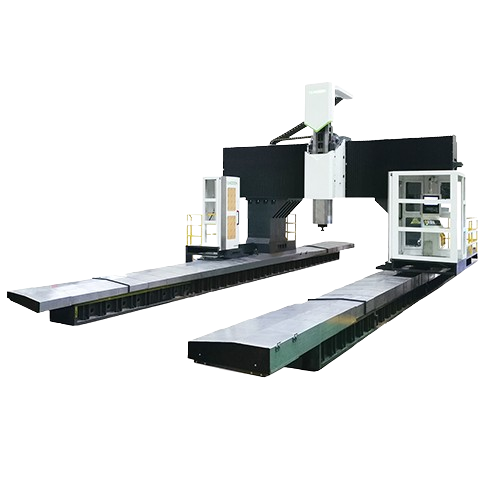

Gantry Moving Column Machining Center

Features:

A moving column gantry structure provides high rigidity and excellent stability for machining large, heavy workpieces.

Long X-axis travel and heavy load capacity allow efficient machining of oversized components in a single setup.

Suitable for heavy cutting, drilling, milling, and tapping operations on large structural parts.

YSMD-18046

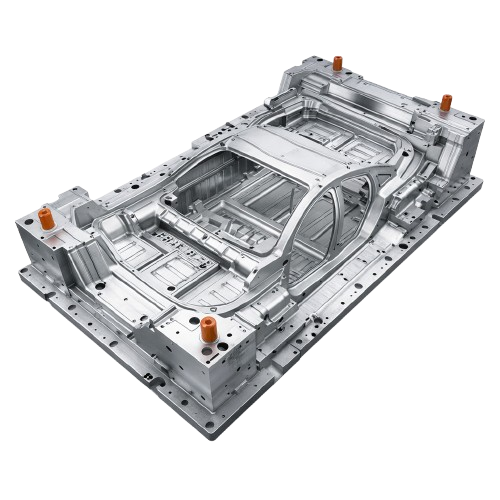

Automotive Body Mold

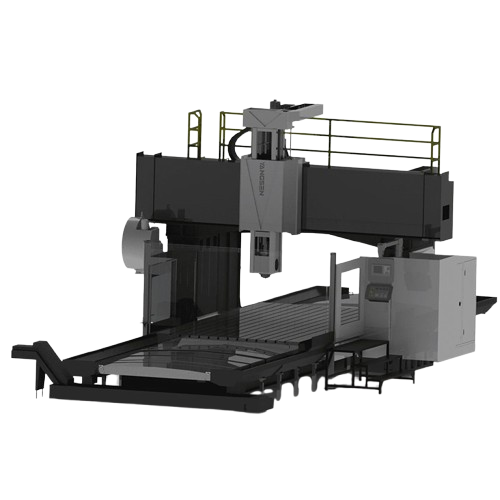

Gantry Double Column Machining Center

Features:

Rigid dual-column frame with a wide-span beam design ensures excellent stability when machining large metal components.

Commonly used in industries such as heavy equipment manufacturing, energy machinery, automotive tooling, mold making, and large metal structure processing.

YSM-9038

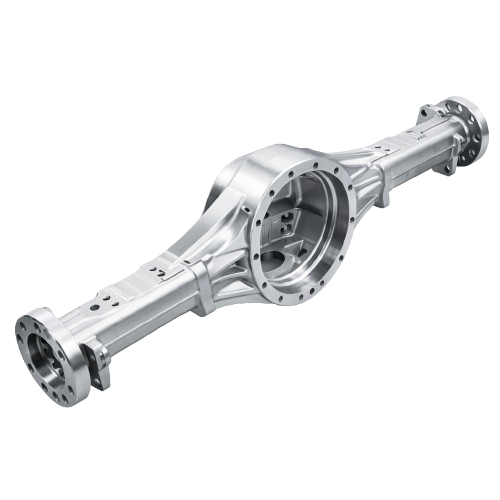

Axle Housing

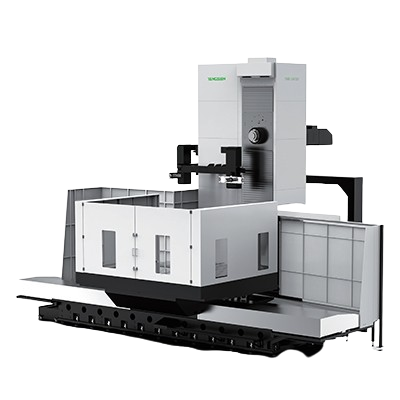

Horizontal Boring Machine

Features:

Horizontal spindle with a rotary worktable enables stable machining of large box-type and structural parts.

Rigid machine frame and high-torque spindle support efficient boring, milling, drilling, and tapping operations.

Long axis travel and high load capacity allow precise machining of large workpieces in fewer setups.

YSBD-110

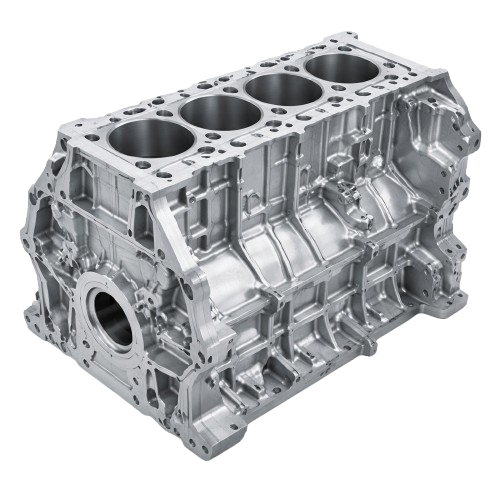

Engine Block

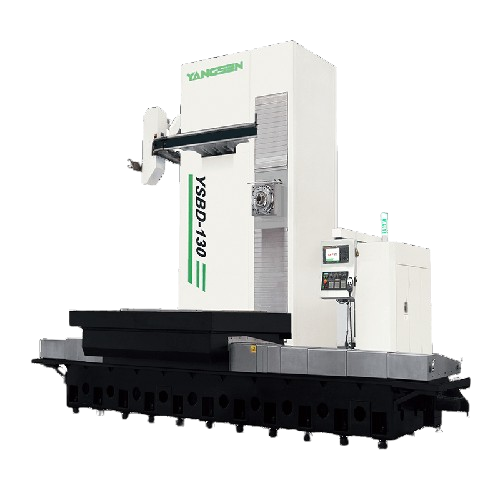

Horizontal Boring CNC Machine

Features:

Designed for precision milling and boring operations with additional capabilities for drilling, reaming, and facing.

Optimized for machining box-type components and multi-bore parts requiring accurate bore alignment and spacing.

Suitable for multi-process machining of large structural parts in a single setup, improving efficiency and accuracy.

YSBD-130

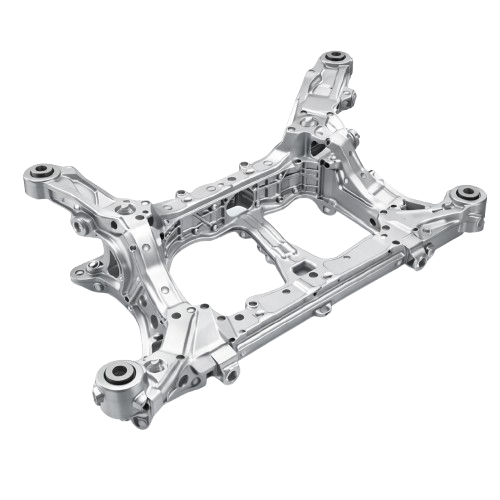

Suspension Subframe

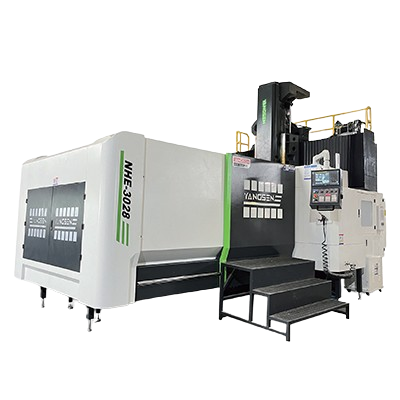

Gantry 5-Axis Machining Center

Features:

Large gantry structure combined with 5-axis simultaneous machining enables efficient processing of complex and oversized components.

High-rigidity frame and advanced spindle system support stable cutting and high-precision machining of complex surfaces.

Capable of multi-side machining in a single setup, improving efficiency for large 3D parts and molds.

NHE-3028

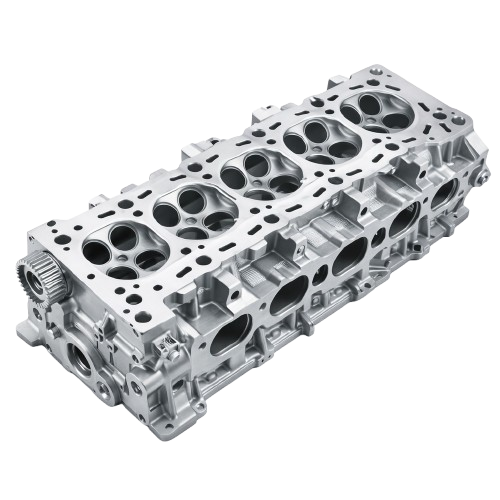

Cylinder Head

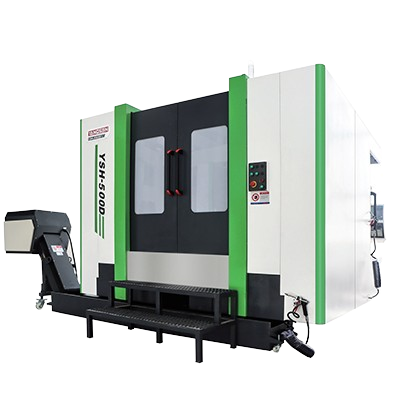

Horizontal Machining Center

Features:

Horizontal spindle with dual-pallet table enables efficient multi-surface machining and continuous production.

Rigid machine structure with high-speed spindle ensures stable cutting and high-precision machining.

Automatic tool changing and indexing table allow multiple operations to be completed in a single setup.

YSH-500D

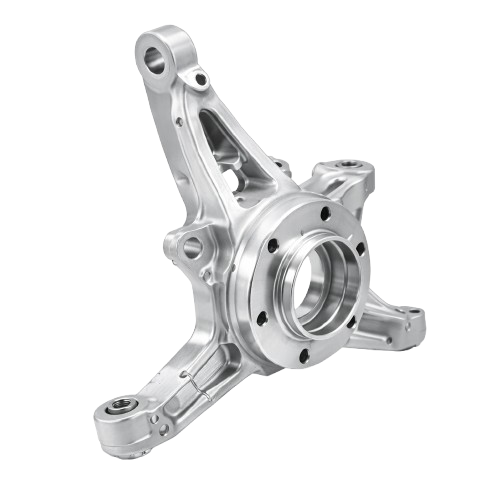

Wheel Hub Carrier

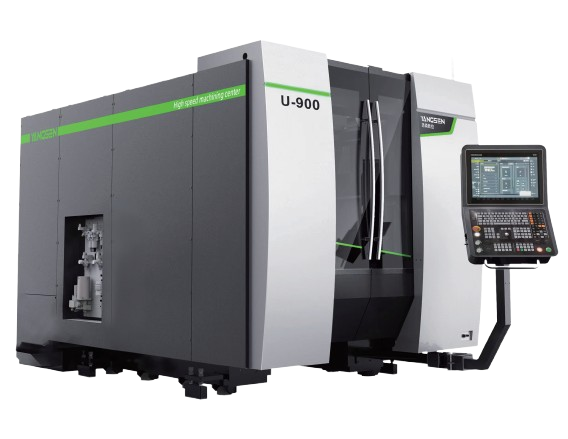

5-Axis Machining Center

Features:

Gantry structure with crossrail, saddle, and ram configuration reduces moving mass and improves motion stability.

Coaxial drive system near the center of gravity enhances axis synchronization and positioning accuracy.

Bridge-mounted rotary table keeps rotation independent from linear axis movement for stable multi-axis machining.

U-900

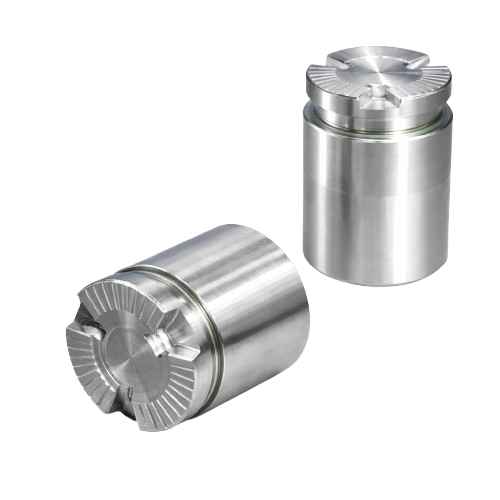

Caliper Piston

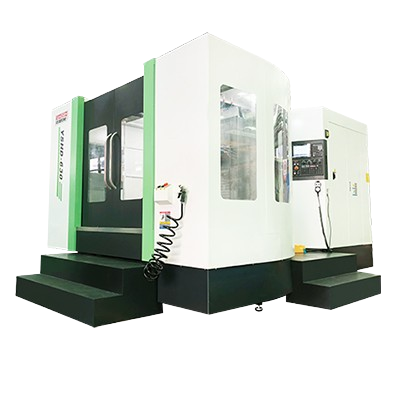

Horizontal CNC Milling Machine

Features:

High-rigidity horizontal machining structure ensures stable cutting and consistent precision during long production cycles.

Large tool magazine and automatic pallet system improve machining efficiency and support continuous production.

An optimized spindle and feed system provides reliable performance for high-precision multi-surface machining.

YSHD-630
