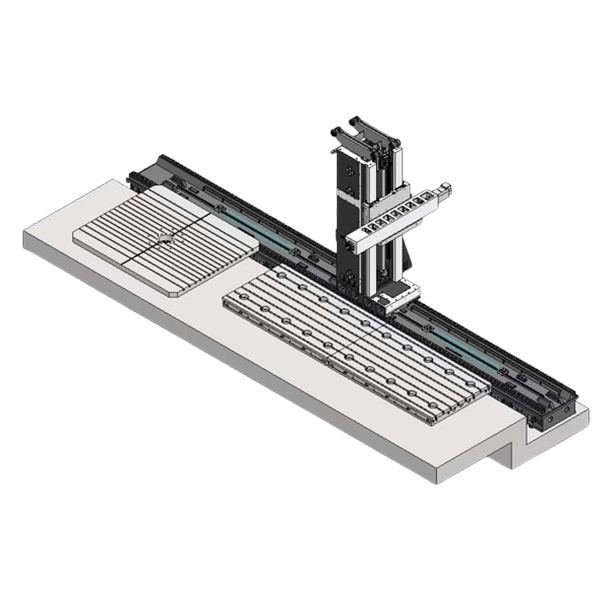

WHS-160F floor type horizontal boring and milling machine features a Ø160 mm gear-driven spindle, 25-ton rotary table, and heavy-duty structure for machining large industrial components with high precision.
Max. X-axis Travel :
10000mmMax. Y-axis Travel :
3100mmMax. Z-axis Travel :
1000mmMax Workpiece Length :
1800mmMax Workpieces Width :
2200mmMax Workpieces Weight :
25TBoring and Milling Machining Center Structure Characteristics
High-Rigidity Roller Guideway System
The X/Z/W axes are equipped with imported heavy-duty roller linear guideways with V3 preload, delivering excellent rigidity and load capacity. With rapid feed rates up to 10/5/5 m/min (X/Z/W), the machine ensures smooth movement and stable accuracy during heavy-duty machining.
Ø160 mm Gear-Driven Through-Spindle Coolant Spindle
The Ø160 mm gear-driven spindle features through-spindle coolant, a labyrinth sealing system, and air-blow protection to enhance spindle reliability. With a maximum speed of 2,000 rpm, it delivers the high torque and rigidity required for large-part boring and milling.
Efficient Chip Management
A reserved interface for a screw chip conveyor and an integrated cutting flush system enable efficient chip removal during machining. Timely chip evacuation minimizes thermal influence, helping maintain stable machining accuracy.
Rigid Machine Structure
The machine is built using resin-sand castings with aluminum-wood combined patterns, while the worktable is manufactured from HT300 high-grade cast iron, providing excellent rigidity, vibration resistance, and long-term machining stability.
Parameters
| Item | Specification | Unit | WHS-160F/25T |
| Travel | X axis | mm | 10000 |
| Y axis | mm | 3100 | |
| Z axis | mm | 1000 | |
| W axis | mm | 900 | |
| Spindle | Spindle taper (model/installation size) | mm | BT50 |
| Spindle speed | rpm | 2000 | |
| Milling spindle diameter | mm | Φ160 | |
| Spindle transmission mode | - | Gear type | |
| Worktable | Worktable area | mm | 1800×2200 |
| Minimum indexing angle | deg | 0.001° | |
| Maximum worktable load | kg | 25000 | |
| Fixed worktable | mm | 3000×6000 | |
| Maximum load | kg/m² | 10000/m² | |
| Feed | X/Y/Z/W-axis rapid feed | m/min | 10/6/5/5 |
| Maximum cutting feed | mm/min | 10/5/5/5 | |
| Motor | Spindle motor | kW | 22-57 |
| X/Y/Z/W/B-axis servo motor | - | 5.4/5.4/5.4/5.4/5.4 | |
| Cutting fluid pump motor | m/h-m | 4-60 | |
| Power Requirement | Power requirement | kVA | 95 |
| Air source requirement | kg/cm² | 6^8 |
