You must have stood by a machine at least as big as your drawing-room table, on which a motor car could stand--and then seen it cut metal with the calm caprice of a painter drawing a pencil sketch. That shot is a frame of what large CNC (computer numerical control) machining is all about. Whereas parts processed in common CNC shops can peer out of the palm of a hand, in specific industries, components are measured in meters, not millimeters.
Subsections below discuss how stores obtain precise cuts, the machinery that they use, and the dangers of making the wrong decision by basing plenty of options on the wrong choice, which may push the store to incur expensive mistakes. Whether it is a discussion of gantry mills to portable laser trackers, this is a book that gets to the depths without overwhelming the reader with terminology.
“Large” is a moving target. A machining center with a 1 m × 2 m table seems huge inside a tool-and-die shop, yet it looks modest beside a bridge mill that travels 20 m down a rail. Industry practice often defines large work as anything outside the ISO 40 tool-changer envelope or heavier than a forklift’s safe lift. Practical markers include:
● Table length above 3 m or column-to-column spacing above 2 m
● Z-axis stroke greater than 1 m
● Part weight that requires an overhead crane, not a pallet jack
Traditional machining centers rely on cast iron frames and a box-like work area. Large CNC machines stretch that architecture. Columns may ride on rails embedded in the shop floor, while cross-rails move up and down to clear parts of mixed heights. Thermal drift grows with length, so compensation routines become part of daily setup, not optional extras. Feed rates drop to curb vibration, and tool holders grow longer to reach deep pockets without crashing the spindle nose.
Large CNC machining still removes material with rotating or reciprocating cutters. A controller drives axis motors. G-code specifies to the machine when to accelerate, decelerate, and offset checking. Multi-axis motion, three, four, five or even seven axes, allows the drill to reach complicated angles with only one setup. The scale change implies that any minor misstep magnifies at the scale of the working surface area, hence the operators hold onto probes and sensors to keep the cutter on course.
Sometimes it helps to step back and compare the most common large-format machines at a glance. The table below highlights each type’s working envelope, main strengths, and the jobs where it usually delivers the best results.
Machine type |
Typical work envelope (L × W × H) |
Key strengths |
Common applications |
Gantry/bridge mill |
3 – 20 m × 2 – 6 m × 1 – 3 m |
Handles very wide parts in one setup; flexible head options |
Aircraft wing spars, wind-turbine hubs, and large molds |
Floor-type horizontal boring mill |
5 – 30 m × 2 – 4 m × 2 – 6 m |
Deep-hole drilling and facing; rotary tables for heavy castings |
Turbine casings, engine blocks, and hydraulic manifolds |
Long-bed turning center |
Ø 0.5 – 4 m × length 3 – 12 m |
Rigid support for shafts; live tooling for grooves and flats |
Drive shafts, propeller hubs, rail axles |
Multipurpose mill-turn |
2 – 10 m × 1 – 3 m × 1 – 3 m |
Combines milling and turning; fewer part transfers |
Satellite structures, complex valve bodies |
Large surface grinder |
1 – 6 m × 0.5 – 3 m × 0.5 – 1 m |
Achieves tight flatness and finish on hard materials |
Press platens, machine-tool beds, armor plates |

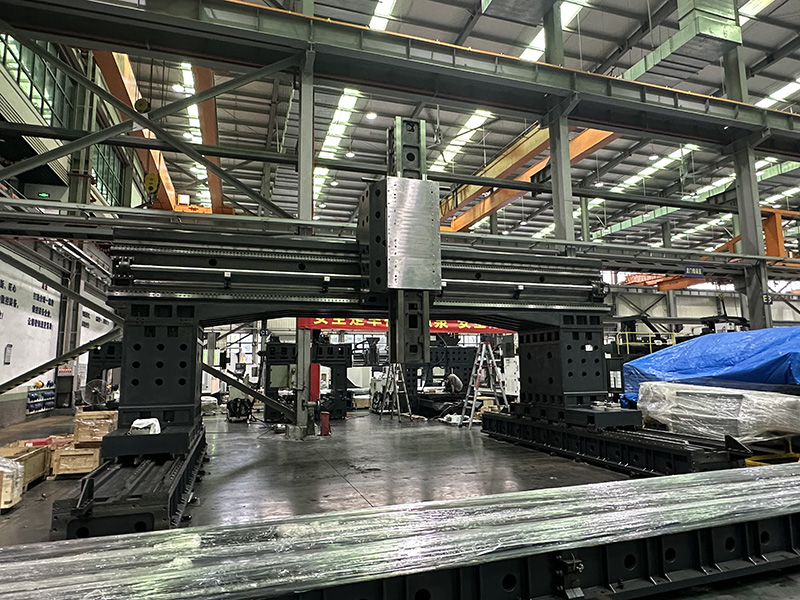

Picture a bridge crane parked over a machine bed. The cross-beam—the gantry—carries a milling head that sweeps back and forth. Rails on each side guide the gantry while massive ball-screws or rack-and-pinion drives push it along. Many gantry mills support interchangeable heads: high-speed spindles for aluminum, gear-cutting heads for drivetrain housings, and right-angle attachments for deep side walls. Some models even switch to additive heads for hybrid build-and-cut cycles.
Horizontal boring mill, often shortened to HBM, spins a long bar aligned with the floor. The bar slides in and out of the headstock to drill, bore, or face without repositioning the work. Large HBMs carry rotary tables that handle 30-ton forgings. Extra-long DRO scales track movement with sub-micron resolution, turning slow, heavy cuts into precision features.
When a shaft stretches six meters, standard lathes sag under the load. Heavy-duty turning centers use twin headstocks, steady rests, and tailstocks reinforced with hydrostatic bearings. Many add live-tool turrets or milling spindles, blending turning and milling in one cycle. Rotational axes (C and B) index the part so that cutters reach key ways or oil grooves without a secondary setup.
Clamps, vises, and chucks scale up along with the platform. Modular tombstones bolt to T-slots and reconfigure fast. Hydraulic clamping saves elbow grease when 60 bolts would otherwise demand a half-day of wrench work. To stop vibration, machinists slide tungsten-filled bars into boring tools, slightly changing mass and damping chatter.
Large work typically starts with face milling—skimming the top to establish a clean reference. Cutters range from 200 mm shell mills to 400 mm fly cutters. Contour passes, then carve edges and ribs. Pockets follow, often three or four times deeper than the tool diameter. Extra-reach extensions keep shanks clear of walls; every added centimeter increases whip, so spindle speeds stay modest. Finishing passes straighten surfaces and meet call-outs like Ra 1.6 µm.
Raw forgings arrive with scale and draft angle. Roughing tools shave them down in a flurry of blue chips, leaving 3–5 mm stock. Carbide inserts with positive rake cut freer and cut cooler, which saves cycles on later heat-straightening steps. Finish tools, then bring diameters within ±0.02 mm—a tighter band than many expect from parts the size of telephone poles.
Some aerospace beams need lubrication passages several meters long. Gun-drills, ejector drills, and BTA drills do the job. Through-spindle coolant flushes chips out so they do not weld inside the hole. To tap threads M60 or larger, machines resort to rigid tapping with torque-release holders. Stage drilling protects tap life; each pilot hole sets the path for the bigger tool.
When tolerance demands drop below ten microns, cutters hand over to grinders. Bridge grinders travel across the part like a silk ribbon on a gift box. CBN wheels eat through hard nitrided layers without loading. Flatness checks follow, using autocollimators or laser interferometers at multiple points across the surface.
Some shops weld sub-assemblies on the boring-mill table, then machine them in the same clamp. That saves lifts and hastens alignment. After welding, cutters remove heat-affected distortion. The partnership between fabrication and machining feels seamless when both teams share the same coordinate system.
Low-end carbon steels (A36, 1045) are champions of the press frame, the crane boom, and so on. Alloy grades (4140, 4340) provide an additional tensile strength of shafts that are subjected to a twisting load.
Aerospace giants pick 7050 and 7055 plates for spars. Aluminum-lithium variants save weight yet hold stiffness, ideal for satellite decks.
Oil-and-gas manifolds cut from 17-4 PH or duplex stainless resist corrosion in brine. Heat-resistant steels—A286, Incoloy 800—service power-plant internals.
Titanium 6-4 balances low density and high yield strength, but its gummy nature dulls tools fast. Super-alloys—Inconel 718, Hastelloy X—shrug off 700 °C exhaust flows yet push spindle loads to the red line.
Not every large part is metal. Carbon-fiber panels for race-car monocoques machine cleanly with diamond-coated cutters. UHMW-PE liners for bulk-handling chutes resist abrasion and glide over rollers with less noise.
Aluminum grows roughly 23 µm per meter per °C. On a 10 m panel, a 5 °C swing shifts holes by more than the thickness of a piece of paper. Shops install climate-control systems that hold ±1 °C. When that is not possible, machines probe reference datums right before a cut, updating offsets in real time.
Every motor step travels farther on a flexible frame. Gantry columns weigh many tons yet still flex under load. Designers pour polymer concrete into cavities, stiffening the castings without massive steel ribs. On the floor, isolator pads separate the machine from forklift rumble coming through the concrete.
Laser trackers shoot beams at retro-reflective spheres to map a part’s coordinates within 0.020 mm across a 30-m span. Portable CMM arms clamp to the table and reach into pockets for live readings. In-process probes check features between passes, avoiding the “cut, crane, measure, crane, recut” merry-go-round.
Wing spars stretch like the spine of a flying whale. One-piece milling removes fastener rows, cuts weight, and limits fatigue cracks. Landing-gear beams machined from 300M steel carry the full shock of touchdown; their sidewalls must stay parallel within fractions of a millimeter to avoid side-load chatter.
Steam-turbine casings, each the size of a delivery van, need flat mating flanges to trap pressure. Wind-turbine hubs weigh 50 tons yet must accept blade bolts that align within 0.05 mm to prevent vibration at 10 rpm.
Injection molds for rock-truck bodies measure 12 m end-to-end. A bridge mill contours the inner sweep so stamping dies form panels without buckles. Excavator frames, built from thick plate, see boring-mill passes open pin holes that hold hardened bushings for the arm pivot.
Propeller hubs, often nickel-aluminum-bronze, emerge from rough castings full of chilled dimples. CNC lathes and mills finish them in one clamping. Subsea housings for ROV thrusters demand o-ring grooves with mirror surfaces; a slip here floods electronics in minutes.
Launch-vehicle bulkheads combine pockets, ribs, and dome flanges in oversized monolithic forgings. Precise machining lets them survive cryogenic cycles during ascent. Armor plates for land systems pass across traveling-column mills that slot bolt windows without warping.
A giant machine clamps the entire workpiece once. That single clamping drops the stack-up errors caused by moving parts between fixtures.
Designers join formerly separate ribs, skins, and webs into one billet. Fewer welds mean shorter assembly times and less inspection paperwork.
Before large CNC, finishing a hydro-turbine runner could take months of template tracing and hand grinding. Now programmers load a model, simulate chips, and let the roughing start the same week.
Digital control repeats tool paths down to the micron. Surface roughness stays within spec from the first part to the fiftieth, even as operators swap shifts.
Titanium prices jump with aerospace demand cycles. Aluminum plates above 150 mm in thickness may require mill-direct orders. Suppliers quote by the pound, but shipping fees balloon when flats exceed truck-deck limits.
Shops track actual spindle minutes through built-in counters. Roughing at 5 mm depth and finishing at 0.5 mm do not cost the same. Hourly rates climb to cover depreciation, operator wages, and maintenance reserves.
Carbide inserts last half as long in Inconel as in 6061 aluminum. Budgeting for fresh edges avoids line-stop surprises. Some shops use vending machines that log each insert’s ID, linking wear data to shifts and jobs.
Large parts often call for third-party verification to ASME Y14.5 or ISO 2768. Portable CMM rental and inspector travel fees add line items. When a finished module exceeds 4.2 m height, special low-boy trailers, route surveys, and police escorts join the invoice.
Check work-envelope length, width, height, spindle power, maximum table load, and live-axis count. A shortfall in any one derails the program.
ISO 9001 shows baseline process control. AS9100 signals aerospace rigor. API Q1 or Q2 soon matters in oil and gas. Without them, auditors will question documentation trails.
Photos of finished parts reveal more than brochures. Ask to see surface-finish data, first-article inspection reports, and customer testimonials.
Delivery dates shift when machines run near capacity. Extra spindle time, weekend shifts, and quick-change fixtures cushion demand spikes. Post-sale touch-ups—spot facing or extra holes—need flexible schedules, too.
Large CNC machining brings laboratory-grade precision to components that weigh as much as city buses. Gantry mills, HBMs, and long-bed lathes, paired with laser trackers and climate controls, make that feat routine—almost. Material behavior, vibration, and thermal drift still test engineering teams, so smart buyers weigh a shop’s envelope, certifications, and track record before committing.
An honest audit of current production lines often reveals assemblies that could shrink to single, stronger pieces under one heavy-duty spindle. When that happens, lead times shorten, quality rises, and projects advance with fewer late-night scrambles. To see whether oversized machining would streamline the next build, gather drawings, list tolerance bottlenecks, and start a conversation with a proven large-format partner.
