What is a Universal Milling Machine

Oct 26, 2023

Milling machines are the unsung heroes of manufacturing and fabrication. They are the workhorses responsible for shaping and transforming raw materials into countless products we use daily, from precision components in aerospace to intricate parts in the automotive industry. Among the different types of milling machines, the "Universal Milling Machine" stands out as a versatile and crucial player in various industries.


The Basics of Milling Machines

Types of Milling Machines

Before we dive into the specifics of universal milling machines, let's take a moment to understand the broader categories of milling machines. Milling machines are classified primarily based on the orientation of their cutting tool and the movement of the workpiece. Here are three primary types:

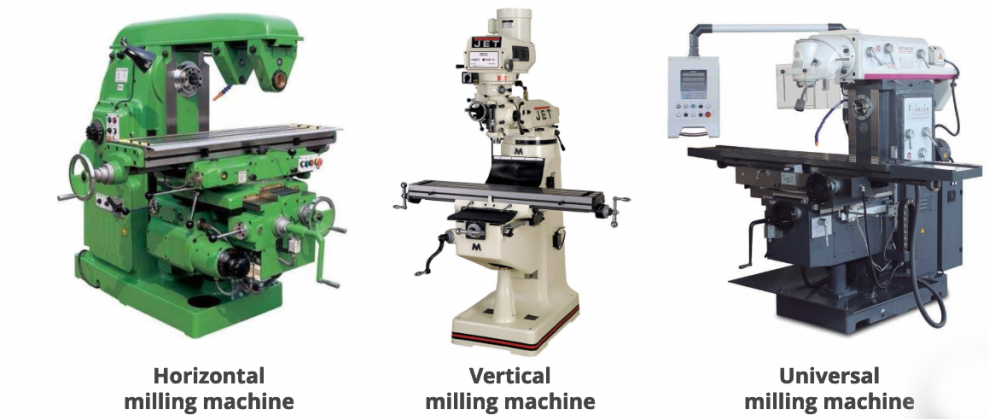

1. Universal Milling Machine: This versatile machine can handle both horizontal and vertical milling, making it highly adaptable for a wide range of tasks. It offers incredible flexibility and precision, making it a popular choice in many industries.

2. Vertical Milling Machine: In a vertical milling machine, the spindle is oriented vertically, and the cutting tool moves up and down. This type is excellent for tasks that require depth rather than width.

3. Horizontal Milling Machine: In contrast to the vertical machine, a horizontal milling machine has a horizontally oriented spindle. It is ideal for creating wide, flat surfaces and is commonly used in industries where horizontal cuts are needed.


Historical Background

The concept of milling machines took off in the early 19th century. Inventors and engineers from various countries contributed to their development. The first recognizable milling machine, known as the "column and knee" milling machine, emerged in the 1830s. It laid the foundation for the diverse range of machines we have today, including the universal milling machine.



As milling technology continued to advance, the introduction of numerical control (NC) and, later, computer numerical control (CNC) brought about a revolution in precision and automation. Today, modern milling machines, including universal milling machines, are integral to various industries, from aerospace to medical equipment production.


Anatomy of a Universal Milling Machine

Main Components

A universal milling machine is a complex piece of engineering, comprising several essential components that work in harmony to produce precise and intricate parts. Understanding these components is crucial to comprehending how the machine functions. Here are the primary components:

1. Column and Base: The column provides support for the entire machine, and it is attached to a heavy base. The column's rigidity is essential for maintaining stability during operations.

2. Spindle: The spindle holds the cutting tool, allowing it to rotate and make contact with the workpiece. Spindles come in different sizes and configurations to accommodate various tool types and sizes.

3. Worktable: The worktable is the surface on which the workpiece is secured. It can move horizontally and vertically, enabling precise positioning of the workpiece. This table can also rotate at various angles, adding to the machine's versatility.

4. Saddle and Knee: The saddle is responsible for moving the worktable horizontally along the X-axis, while the knee facilitates vertical movement along the Y-axis. This dual-axis movement is essential for milling operations, as it allows the machine to create complex shapes and features on the workpiece.


Key Features

A universal milling machine's design is marked by several key features that set it apart from other milling machines. Understanding these features is crucial in appreciating the machine's adaptability and precision:

1. Versatile Head Movement: One of the standout features of a universal milling machine is its ability to change the orientation of the cutting tool. The machine's head can pivot and rotate, enabling both horizontal and vertical milling, as well as angular milling when needed. This versatility makes it a go-to choice for tasks requiring multi-directional cuts.

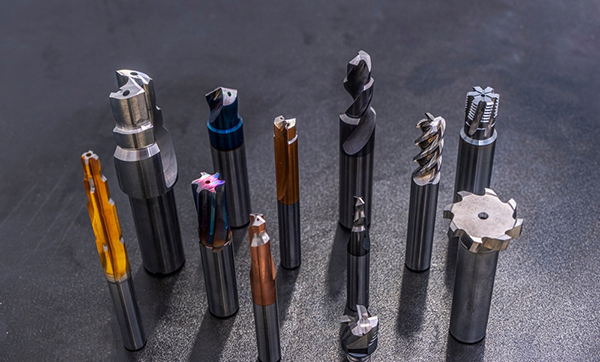

2. Tool Holding Mechanisms: Universal milling machines offer various tool holding options, including collets, end mill holders, and more. These mechanisms ensure that the cutting tool remains firmly in place, reducing vibrations and enhancing cutting precision.

3. Workpiece Clamping Methods: Securing the workpiece is paramount in milling operations. Universal milling machines offer a range of clamping methods, such as vices and clamps, which can be adjusted to hold workpieces of different shapes and sizes firmly in place.


The Working Principle

Overview of the Milling Process

At the heart of a universal milling machine lies its ability to precisely remove material from a workpiece. This process is known as milling, and it involves using a rotating cutting tool to shave away layers of material to achieve the desired shape or finish.


Cutter and Workpiece Interaction

The precision of the milling process depends on how the cutter and workpiece interact. Key factors in this interaction include:

• Cutting Speed: The rotational speed of the cutter significantly impacts the quality of the cut. Proper cutting speeds prevent excessive tool wear and improve material removal efficiency.

• Feed Rate: The feed rate, which determines how fast the workpiece moves relative to the cutter, influences the quality of the cut and the surface finish. A controlled feed rate is essential for precision.

• Depth of Cut: The depth of cut refers to the thickness of material removed in each pass. A shallow depth of cut is often used for fine finishing, while deeper cuts are employed for roughing operations.

• Cutting Tool Geometry: The shape and angles of the cutting tool's edges play a vital role in the cutting process. The right tool geometry minimizes vibrations and heat generation while maximizing material removal.



Role of the Universal Milling Machine in Material Removal

Universal milling machines are prized for their versatility, and this adaptability extends to the milling process. Here's how these machines play a crucial role in material removal:

• Multi-Axis Milling: The universal milling machine's ability to move the head in multiple directions allows for complex multi-axis milling. This means it can cut intricate shapes and contours with precision, ideal for producing intricate components.

• Efficiency and Precision: The precise control over the milling process, including the feed rate and depth of cut, allows for high precision. This makes it indispensable in industries where tight tolerances are required.


Role of the Universal Milling Machine in Material Removal

Universal milling machines are at the core of various manufacturing and fabrication processes, playing a pivotal role in the creation of numerous products. Some of their key applications in these industries include:

1. Precision Component Manufacturing: These machines are vital in producing intricate components for industries such as aerospace and medical equipment manufacturing. Their multi-axis capabilities allow for the precise shaping of complex parts.

2. Automotive Industry: Universal milling machines are used to create components for vehicles, from engine parts to transmission elements. They play a significant role in ensuring the efficiency and safety of automobiles.


Customization and Versatility

One of the standout features of universal milling machines is their adaptability. They excel in situations that require customization, small-scale production, or the creation of one-off prototypes. Some noteworthy applications include:

Key Advantages over Other Milling Machines

Universal milling machines possess several advantages that set them apart from other types of milling machines:

1. Versatility: Their ability to perform both horizontal and vertical milling operations in a single machine is a significant advantage, as it reduces the need for multiple machines.

2. Precision and Control: The multi-axis capabilities, precise control over feed rates, and depth of cut make these machines ideal for tasks demanding high accuracy.

3. Time and Cost Efficiency: The versatility and precision of universal milling machines can result in time and cost savings by reducing setup and tool change times.


Universal Milling Machine Variations

Universal milling machines come in various configurations to suit different machining needs. These variations cater to specific applications, making them more versatile and adaptable in various industries. Let's explore these variations:


Horizontal vs. Vertical Spindle Orientation

1. Horizontal Universal Milling Machine: This type features a horizontally oriented spindle and is known for its proficiency in creating wide, flat surfaces. It excels in tasks where horizontal cuts are required, such as machining large workpieces or creating horizontal slots.

2. Vertical Universal Milling Machine: In contrast, vertical universal milling machines have vertically oriented spindles. They are ideal for tasks that require depth rather than width. This variation is commonly used for drilling, tapping, and creating holes in workpieces.


Single Universal vs. Dual Universal Machines

1. Single Universal Milling Machine: As the name suggests, this type features a single milling head that can be adjusted to perform both horizontal and vertical milling. It's a versatile choice for smaller operations that don't require simultaneous horizontal and vertical milling.

2. Dual Universal Milling Machine: Dual universal machines, on the other hand, are equipped with two milling heads, one oriented horizontally and the other vertically. This configuration enables operators to perform both types of milling simultaneously, increasing productivity and efficiency.

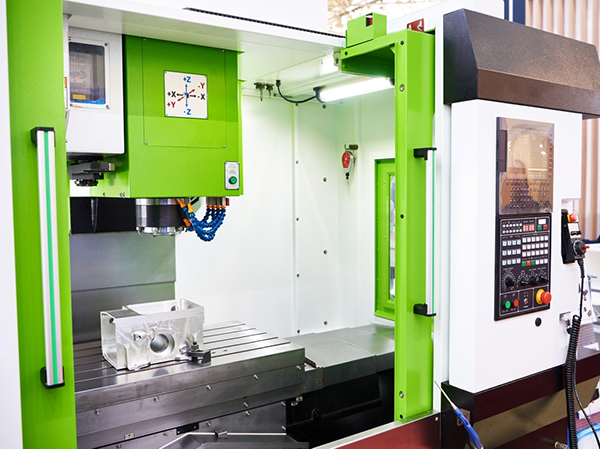

CNC Universal Milling Machines

In the age of automation and precision machining, many universal milling machines are now equipped with Computer Numerical Control (CNC) technology. CNC universal milling machines offer the following advantages:

Enhanced Precision: CNC systems allow for extremely precise control over tool movement and material removal, resulting in parts with tight tolerances.

Efficiency: CNC automation can significantly reduce the time required for setting up and changing tools, making production processes more efficient.

Complex Shapes: With CNC, operators can program the machine to create highly intricate and complex shapes, further expanding the machine's versatility.


How to Operate a Universal Milling Machine

Operating a universal milling machine requires precision, knowledge, and safety precautions. Here's a step-by-step guide on how to use these versatile machines effectively:


Safety Precautions

1. Wear Appropriate Attire: Ensure you're wearing safety gear, including safety glasses, hearing protection, and a lab coat. Steel-toed shoes are advisable as well.

2. Inspect the Machine: Before use, check the machine for any loose or damaged components. Verify that all safety features and emergency stops are functional.


Setting Up the Machine

1. Power On: Start the milling machine by turning on the power. Make sure the emergency stop is disengaged.

2. Machine Warm-Up: Allow the machine to run for a few minutes to ensure all components are properly lubricated and ready for use.

3. Table and Head Positioning: Position the worktable and milling head according to your project's requirements. You can adjust both horizontal and vertical angles as needed.


Toolpath Programming

1. Manual Operation: For simple operations, you can control the machine manually. Adjust the machine's levers, handles, and controls to move the cutting tool along the desired path.

2. CNC Operation: If you're using a CNC universal milling machine, program the toolpath into the CNC control system. This will automate the milling process, allowing for precise and complex cuts.


Workpiece Preparation

1. Workpiece Alignment: Ensure the workpiece is correctly aligned with the cutting tool. Use precision measuring tools to verify its position.

2. Safety Measures: Keep hands and loose clothing away from moving parts. Stand clear of the work area to prevent accidents.


Milling Process Step by Step

1. Initial Contact: Bring the cutting tool into contact with the workpiece at the starting point, ensuring it's just above the surface.

2. Feed In: Gradually lower the tool onto the workpiece by moving the worktable. Be mindful of the feed rate to avoid overloading the tool.

3. Control Movement: Use the machine's controls to move the tool along the desired path. If using a CNC machine, initiate the programmed sequence.

4. Constant Inspection: Continuously monitor the milling process. Ensure that the machine is operating smoothly, and there are no issues with tool wear, vibrations, or material removal.

5. Finishing and Cleanup: Once the milling operation is complete, retract the tool and power off the machine. Remove the workpiece and clean the machine and work area of any chips or debris.


Maintenance and Care

Proper maintenance is key to ensuring the longevity and consistent performance of a universal milling machine. Regular upkeep minimizes wear and tear, reduces the risk of breakdowns, and maximizes the machine's efficiency. Here's a breakdown of the essential maintenance tasks:


Routine Maintenance Tasks

1. Cleaning: Regularly clean the machine, removing chips, debris, and excess lubricants. A clean machine runs more smoothly and extends the life of its components.

2. Lubrication: Lubricate the machine's moving parts following the manufacturer's recommendations. Well-lubricated components reduce friction, minimizing wear and heat generation.

3. Check for Wear: Periodically inspect the cutting tools, worktable, and other components for signs of wear. Replace or sharpen tools as needed and address any worn or damaged machine parts promptly.


Troubleshooting Common Issues

Despite routine maintenance, milling machines may encounter issues from time to time. Here are some common problems and their potential solutions:

1. Tool Breakage: If tools break frequently, it may indicate improper feed rates, tool selection, or wear. Adjust these factors as needed.

2. Chatter or Vibration: Excessive chatter or vibration can result from various issues, including improper feeds, dull tools, or machine misalignment. Address these factors by adjusting the machine's settings, changing tools, or realigning components.


Extending the Machine's Lifespan

To extend the lifespan of your universal milling machine, consider these tips:

1. Proper Storage: Store the machine in a clean, dry, and temperature-controlled environment to prevent rust and corrosion.

2. Use Quality Tooling: Invest in high-quality cutting tools and accessories to reduce wear on the machine.

3. Operator Training: Ensure that operators receive proper training on the use and maintenance of the machine to prevent misuse and damage.

By following these maintenance and care guidelines, you can keep your universal milling machine in optimal condition, ensuring it continues to deliver precision and reliability in your manufacturing or fabrication processes.



In closing, we encourage you to explore the world of universal milling machines further. Whether you're an industry professional or an enthusiast seeking to learn more, these machines offer a world of opportunities in precision manufacturing.
