The automated manufacturing tool known as Computer Numerical Control (CNC) operates through programmed code instructions to shape and cut materials including metal, wood, foam and plastic. The process of learning CNC equipment setup and operation requires both study and practice yet basic CNC mastery enables both hobbyists and professionals to create precise parts efficiently.
This guide provides step-by-step education for beginners who lack CNC experience through detailed explanations of standard CNC workflow preparation and programming and machining and maintenance procedures. The article provides essential information about CNC terminology and equipment components and safety protocols which every CNC operator must learn.

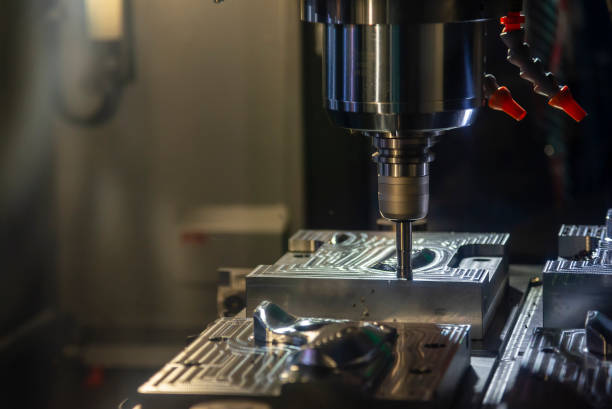

CNC machines operate as automated milling and routing tools with drilling and cutting capabilities which use computerized controls to transform stock materials into custom parts and designs. The automation of manual machining operations through CNC systems delivers enhanced precision and speed together with repeatability and complex capabilities beyond what human craftsmen could achieve.
The main CNC machine categories consist of milling machines, lathes, routers, laser cutters and plasma cutters. Advanced 5-axis CNC machines have the capability to execute complex three-dimensional cutting operations. The majority of CNC machines used by hobbyists function as vertical milling machines with adjustable beds or small routers.
● CNC Mill - A versatile computer controlled vertical milling machine center, typically with a movable table or bed that the workpiece is secured to. Common configurations are 3-axis (X, Y, Z motion) and 5-axis (with rotary axes) controlled.
● CNC Router - A gantry style machine that moves a spindle over a stationary table and is ideal for routing wood or soft materials. Z-axis is controlled, allowing intricate 2D and 2.5D shapes.
● CNC Lathe - Highly rigid and accurate computerized turning center that rotates the part while the cutting tools move radially to cut complex patterns on the sides of the workpiece.
● CNC Plasma Cutter - Uses a digitally controlled plasma arc to melt and cut electrically conductive materials like stainless steel or aluminum. Tolerances down to 1mm.
● CNC Laser Cutter - A CO2 laser beam burns through sheet stock by either vector cutting outlines or rastering patterns. Ideal for precise, clean cuts in wood, acrylic, fabrics, and paper.
● CNC Waterjet - An extremely high pressure stream of water with abrasives cuts through metal, glass, foams, plastics, and composites along a programmed path with zero heat damage or fumes.
It's vital to understand the physical components and motion capabilities of a CNC machine before attempting operation:
● Axes - The moving directions labeled X, Y, Z that the tool or part can be positioned along using coordinated motion control.
● Spindle - The electric high speed motor that rotates the cutting tool or bit at RPMs sufficient for machining.
● Collet - The clamping chuck on the machine's spindle that grips and secures the cutting tools.
● Gantry - The bridge assembly that allows movement of spindles or material over the workspace below.
● Working Envelope - The maximum part size capacity based on the machine's travels along each axis.
● Controller - The computer and monitor that converts CAM-generated G-code into electrical signals that command axis stepper motors.
● Stepper Motors - Precise digital actuators that can position the axes or spindle speed based on input pulses.
A CNC device requires proper setup before turning on the power for any cutting operation to proceed safely. The failure to properly set up the machine and workspace creates risks that range from equipment damage to serious injuries from flying debris and sparks and other potential hazards.
You should examine both the operational manual and risk assessments for the CNC model you operate because it contains unique hazards. General safety tips include:
● Protect your eyes with safety glasses and your ears with ear protection and wear shoes that cover your entire foot while operating equipment.
● Check for machine stability before adjusting the leveling feet when operating on an uneven floor surface.
● The work area must have open pathways for access and no slippery surfaces should exist.
● Long hair should be secured and all loose clothing and jewelry and other objects must be removed to prevent them from getting trapped in machine parts.
● Keep a first aid kit and fire extinguisher easily accessible in the work area.
● The machine operator needs to install methods that reduce risks according to the machine specifications and material cutting requirements.
CNC machining requires a digital design file generated from CAD software which defines the desired part geometry. Common file types are .DXF files or CAM specific files with toolpath information. The operator must fully understand the critical dimensions, geometries, any datum references or other specifics called out in the blueprints or models before attempting to replicate them physically.
Pay attention to fine details regarding necessary hole sizes, surface finishes, tolerances, or notes clarifying setup instructions or machining steps. Planning may be required for necessary fixture creation or workholding choices as well.
The raw material blanks must match the type and dimensions specified in the cutting plan. Ensure adequate stock is available for the entire job or production run with consideration for potential scrap and defects needing discarded. Stable sheet goods should be flattened if warped to allow proper holding.
Selecting suitable cutting tools is also mandatory for efficient material removal without tool failure or damage risk. Consider factors like these when tooling up:
● Flute count, helix angle, length, diameter based on optimum chip loads
● Tool coating durability for the specific material hardness and run durations
● Insert shape and angle tuned for effective shearing action
● Tool stick out constraints to minimize vibration and deflection
Sharp and undamaged tooling is essential for clean, accurate cuts and optimized machine performance.
Once the necessary safety steps have been performed and the job has been programmed and tooled up for, the hands-on CNC operation can commence. The following procedural checklist summarizes the key usage steps that typical small-scale CNC workflows follow from power-on to finished parts.
Locate the master electrical disconnect switch and set it to "ON" to energize the device. Then toggle the operational power button to initialize the control panel and operating system. Stepper motors will likely need to index their positions as part of this startup synchronization.
Per manufacturer guidance, certain critical machine components may require time to reach steady-state operating temperatures before cutting begins. Spindle bearings, ballscrews, and electronics need proper heat levels and lubricant viscosity to function accurately and reliably.
Degrease and clean the table surface or subplate where workpieces will be mounted. Select appropriate vises, clamps, toe clamps or custom fixturing solutions to securely hold parts in place while managing chip and coolant runoff.
Improperly aligned parts risk tool strikes, dimensional errors, unwanted vibration and other technical issues. Confirm with indicators like dial test indicators that the workpiece is both immobile and precisely oriented relative to the machine zero position.
.NC files contain numerical control instructions to direct machine movements and functions. Other extensions like CNC or TAP also store coded cutting data. CAM software converts 3D models to G-code toolpaths automatically.
Use USB drives, Ethernet networks or the controller interface to upload program files created offline into the CNC system's memory storage location. Verify the proper file name and storage path to avoid operational issues.
Carefully insert cutting bits fully into the machine's collet or chuck, avoiding contact with the delicate flutes. Tighten to appropriate torque specifications with matched wrench sizes.
Input or digitize each tool's radial dimensions and tip length values to record into the tool library offset register. This allows compensation for differences during program run time.
Trial actual hole drilling, surfacing or profile cutting to dial-in and validate entries. Continually refine offset data until satisfied with tool behavior before starting final program.
The CNC controller orients all commanded positioning, rapid moves and cutting passes to a defined coordinate system tied to the workpiece location and stock boundaries.
Instruct the machine to travel to touch off points helping correlate the vise or fixture coordinates to the workspace axis positions reported. This "zeroing process" syncs the programming perspective to actual tool tip placement.
Always simulation full G-code program execution at rapid speeds without engaging cutting. Seriously risk and liability reduction step to validate positioning, catch any crashes.
Many advanced CNC controllers include a realistic 3D graphical environment rendering the entire machining sequence. Use to help visualize program behavior.
With a proven, vetted toolpath program now loaded, carefully begin the full production run. Monitor constantly for any alarm conditions or abnormalities requiring an immediate feed hold or full stop. No unattended operation.
Control feed rates, spindle speeds and other critical parameters must match both program settings and equipment capacities to achieve target finish quality and prevent tool breakage. A conservative approach is smart initial practice.
Upon fully completing all encoded operations without any axis overtravel errors, the CNC machine will signal job done status. Inspect finished part inside the machine before removal.
Carefully remove workpiece from fixture or vise without damage after power disabled. Also clear tool debris and machining detritus from moving components near way covers to prevent accumulation.
Manually reviewed the machined workpiece for any remaining burrs, casting flash or undesirable surface inconsistencies needing improvement using bench grinding or sanding techniques. Edge rounding helps strengthen components against crack propagation as well.
Confirm all critical to function dimensions and 3D geometries match engineering requirements and product specifications before proceeding to secondary operations or customer delivery. Record data trends.
Pay close attention to these known CNC machining fault modes when inspecting finished pieces for accuracy:
● Chatter marks - Insufficient rigidity during cutting passes
● Tapered walls - Improperly trammed or aligned machine axes
● Steps in floors - Dull cutters with reduced chip loads
● Overcut radii - Excessive tool stick out and deflection
Thoughtfully tune operating parameters and mechanical adjustments until achieving satisfactory tolerance and surface finish capability. Eliminate the root cause - don’t just treat one-off symptoms.
Consistently performing scheduled preventative maintenance extends the productivity and lifespan of CNC equipment. Follow the OEM recommendations for cleaning methods, lubricants, and component replacement intervals.
● Blow off metal chips and debris near moving components using compressed air after operations
● Vacuum coolant tanks and chip conveyors to avoid clogging sensitive pumps and tooling
● Check machine structure bolts for any loosening due to vibration
● Lubricate linear rails, ballscrews and gear cases per guidance
● Inspect machine wiring for rodent or moisture damage
Replace or resharpen cutting bits immediately once tolerances start to suffer or finish quality degrades. Worn tools increase heat and forces, accelerating component fatigue. Proactively managing tooling condition prevents damage cascades.
Import updated G-code postprocessors, machine interfaces and motor control firmware from vendors when available to fix bugs and unlock new capabilities. However, carefully test any revisions adequately before relying upon for production.
While generating optimized toolpaths from CAD files involves specialty CAM software expertise, beginners can start learning fundamentals with these concepts:
These instruction sets use alphanumeric formats to control axes motion, spindle actions, coolant states and other CNC functions. Mastering code structures helps operators program manually or troubleshoot files.
Powerful interface programs like Fusion 360, MasterCAM and SolidWorks translate 3D models into machining operations, accounting for fixtures, tools and stock. The output is simulatable G-code.
Understanding how to modify speeds, feeds, tool selections within code files allows refining cycle times, quality factors and tool loads. But changes can also introduce new problems if unfamiliar with underlying calculations.
Learning to safely and efficiently operate CNC machining centers requires studying key concepts like coordinate systems and G-code programming before attempting cutting. Additionally, properly preparing raw materials, creating fixtures, and selecting suitable cutting tools are all vital for success.
Carefully stepping through important procedures like defining machine zero, mounting workpieces, loading programs, and calibrating offsets will build core competencies over time. Gradually implement speeds and feed rates that optimize cycle times without compromising finish quality or accuracy.
Consistently maintaining CNC equipment and inspecting parts for errors allows continually dialing in tolerances and surface finishes towards optimum performance. Mastering these fundamental principles of CNC usage is challenging but very rewarding.
