Horizontal Boring Machine: All You Need to Know

May 04, 2023

A boring machine is a very versatile tool that is deployed in boring holes into heavy and large parts such as machine housing, steam engine cylinders, engine frames, and so on. The boring machine works in conditions where a drilling machine or an engine lathe is unable to function efficiently.

The machine performs hole boring to an exceptional degree. Furthermore, the machine comes with various components that work differently to make the tool an indispensable fixture in the machine shop. A boring machine can be upgraded further by adding various attachments.

This way, the purpose of the machine can be further increased to include various other functions. One example of a boring machine is the horizontal boring machine. This is a machine that is very essential in the fabrication yard. A horizontal boring device is applied when it comes to drilling all types and sizes of holes in work-pieces. As versatile production machines, a horizontal boring instrument works with numerous work-pieces. They can effectively drill holes into work-pieces. with high accuracy and tight tolerances.

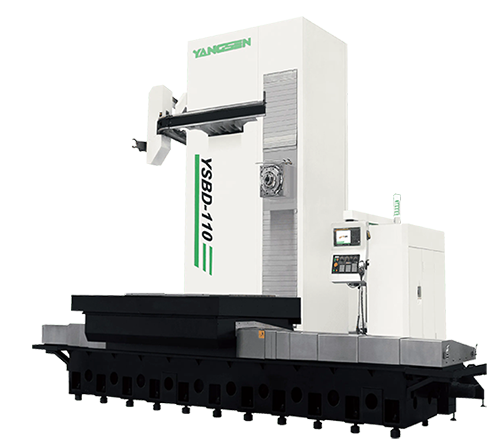

 Horizontal boring machine


An Overview of the Horizontal Boring Machine:

The horizontal boring machine is essentially used to bore/drill holes into work-pieces. Operators bore holes onto work-pieces to enable them further to process drilled, cast, or forged holes. The process of boring holes in the work-pieces helps to increase the diameter, enhance the dimensional accuracy, or enlarge the size of the holes. The process can also be used to enhance the smoothness of the surface.

It can also be used to correct any deviations in the axis of the original hole. To execute this, horizontal boring machines are applied. This is a machine that consists of the ram, the saddle, the spindle, the bed, and the column common parts. With a horizontal cutting machine, you can cater to the needs of several industries such as marine, oil and gas, shipping, automotive, aviation, steel mills, and many more.

The horizontal boring machines help operators provide reliable and professional cutting services. This way, they can complete timely, high-quality, and accurate components according to specifications. Many of these machines come with a maximum work envelope as well as a five-axis operational capacity. The horizontal boring devices offer amazing capabilities to empower operators to produce a wide range of machine parts at high speeds. These boring machines also allow operators to maintain high-level previsions with cutting tolerances of between – 0.0005” and + 0.0005”.


How Does the Horizontal Boring Machine Work

The horizontal boring machine works by traveling in the horizontal plane along the bed on the X-axis. However, the saddle works vertically along the Y-axis. Then the boring tool and the plunger works by moving along the Z-axis and the W-axis in the outward direction. The static work-piece is installed at the front part of the boring machine – the machine cuts around the work-piece. Its basic operation method is what differentiates horizontal boring from vertical boring. In the vertical boring device, the tool is stationary while the work-piece is meant to turn.


The Functional Importance/Components of the Horizontal Boring Machine:

The machine works by remaining static while the boring tool works by a rotary motion. The machine uses boring tools and bars to create holes in work-pieces. To bore holes, the boring tool is attached to a spindle. The cutter is positioned on the bar with the required dimension. The most important factor for a boring machine is to accurately produce a bore of the required sphere and length. The functional components of the horizontal machine include:


The bed:

The bed is made from cast iron and it is positioned on the ground. This way, it helps to support the column and the table.


The column to support the ends and the headstock:

The column of the machine is produced from cast iron. It helps to support the headstock. It works by moving vertically from left to right. The column that provides support is positioned on the bed.


The Table:

The work-piece is placed on the table which provides adequate support as it is being worked on. The table comes in a T-arrangement that is used to hold various parts firmly on the boring machine.


The Headstock:

This is part of the machine that is placed on the column’s supports. It is used to hold the operation tool firmly. The headstock moves in the vertical position and is used to set the required working height for the operation tool.


The Saddle:

The saddle of the boring machine makes the work-piece move easily along the bed in a longitudinal motion. The saddle is also used to control the speed at which the work-piece moves.


Boring bars:

The boring bars works by holding the column, the spindle, and the cutter for the boring process to take place. The support provided is determined by certain parameters such as the short/deep depth holes, bore diameter, and so on.


The Available Types of Horizontal Boring Machines:

There are various types of available horizontal boring machines and each comes with its capabilities and features. Some common types of machines include:


The table horizontal boring machine:

With this type of machine, there is a horizontal table that moves in both the X and the Y directions. This two-way motion system makes it possible for the work-piece to be positioned precisely. This machine comes with a spindle that is attached to a vertical column. The spindle moves upwards and downwards to drill holes that come with varying depths. This is the most common type of horizontal boring machine and also has the most versatility. This type of horizontal boring machine is also referred to as the universal type.


The Planar horizontal boring machine:

The planar variant of the horizontal boring machine features a large horizontal planar bed. The spindle is held in place with a fixed cross-rail. The spindle is used to drill holes into the work-piece as it is moved along the planar bed.


The Floor horizontal boring machine:

This is a floor-mounted horizontal boring machine that is applied in heavy-duty industrial applications. The machine features a long horizontal bed for working on large work-pieces. The spindle of this machine is versatile and can be easily adjusted to drill at various depths.


The Portable horizontal boring machine:

Horizontal boring machines are produced as portable devices. This way, they are moved about and can be applied to on-site drilling operations. In such applications, the work-piece is too large to be moved about or is simply anchored in position. This type of boring machine is made to be compact - this way, it can be transported easily to various locations.


The CNC horizontal boring machine:

This is the type of horizontal boring machine that is compatible with the CNC computer. Using CNC technology, the machine can automate the process of drilling. Furthermore, due to its high-level automation, it is used in complex drilling applications where high accuracy and precision are needed.


Benefits of the Horizontal Boring Machine:

Due to the benefits of the horizontal boring machine, several efficiencies in manufacturing can be executed. Some of the benefits of this machine include:


Able to machine large-sized parts:

The horizontal boring machine can work with large-sized work-pieces – this way, it can produce large parts for different industries. This is function is beneficial for agricultural and industrial applications.


Able to create large numbers of working parts:

The horizontal boring machine can produce multiple cuts at the same time. It is also known for cutting work-pieces. at high speeds. This means that it can be used in applications where a high volume of parts and materials are needed.


Minimal tool deflection:

Many industrial boring tools are known to exhibit occasional tool deflection during the process of cutting. However, the horizontal boring device usually minimizes deflection while cutting materials. This is prevented since the machine has a smaller distance between the anchor point and the drill during the drilling process.


Great for large projects:

The horizontal boring machine is a useful tool to have with large projects. This is a very versatile machine that can be used to handle both groovy and heavy objects. They are engineered to complete various tasks simultaneously – which improves efficiency and productivity.


They are very fast:

The horizontal boring machines are produced to execute concurrent cuts in the quickest possible time. These machines can be rotated easily – which gives them the leverage to bore holes from several angles rather than on a horizontal plane. This equipment can accelerate the material production process without compromising accuracy.


Efficient chip removal:

The horizontal boring machine is designed in such a way that it removes chips easily. This means that the end product will have a nicer and cleaner surface finish. This will minimize the amount of fabrication needed.


Compatible with CNC cutting technology:

Computer numerical control (CNC) technology is a type of computer-aided machining tool that is controlled by software programming. With CNC technology, yard operators can input specific commands for the machines to follow. Horizontal boring machines work to follow simple commands from CNC devices. CNC-enhanced horizontal boring is used to maximize precision while also reducing the risks of human error during the process of boring.


Horizontal boring machines: Why are they recommended for industrial operations?

The horizontal boring machine is a set-up in the production yard that helps to enhance efficiency and increase productivity. Due to their relevance to industrial operations, the machines are recommended by experts due to the following reasons:Horizontal boring machines



Boring machines provide great performance. This is further maximized when they are connected to digital devices like CNC machines. A CNC horizontal boring machine is highly efficient and would help execute the entire production phase. Boring machines can easily increase the efficiency of manufacturing projects in various ways. They can help operators and businesses save a lot of time. All over the world, industries depend on CNC boring machine devices because they improve the process of boring by executing more work in lesser time in comparison to manual cutting methods. A new or used CNC boring machine can get any work-piece perfectly bored and drilled.


Cost-effective investment:

A horizontal boring machine is a great investment for a processing or production plant. They are more in demand than traditional boring tools and machines. They work well in environments where they are needed for long-term industrial projects. Reputable manufacturers usually stock various highly efficient boring machines – vertical or horizontal.


Durability and serviceability:

Considering their importance in the manufacturing process, boring machines are engineered for durability and serviceability. Thanks to amazing and innovative designs, you can use your boring machines for a very long time. The machine also comes with robust materials enhanced by a sturdy manufacturing process. To ensure serviceability, many suppliers of boring machines provide advanced post-sales support and services. Most suppliers of the machine provide full servicing, general repairs, and modernization for all customers.


Noise/odour free:

The horizontal boring machine is known to work noiselessly. This is an important feature of this important fabrication tool. The machine does not emit any offensive odour. This is different from various other traditional machines found in factories that make a lot of noise and emit offensive odours. A boring machine is meant to ramp up efficiency and throughput without creating unease or discomfort in the fabrication yard.


Small form factor:

A boring machine can occupy a lot of space in the fabrication yard, but many devices come in small sizes. You can choose from a wide range of sizes available in the market. However, many of these machines are made to occupy smaller footprints in contrast to the type of efficiency that they provide. Smaller footprints mean that you can use your production facility for other purposes.



A horizontal boring machine should possess core components and various benefits needed for a manufacturer to meet key product specifications. For manufacturers looking to go versatile and serve various industries, the horizontal boring machine is an indispensable tool. Acquiring this machine makes it possible for machine shops to meet the various needs of their customers. Aspiring buyers can easily find reputable suppliers with an authentic horizontal boring machine for sale.
