CNC, VMC, HMC: A Comparative Analysis of Machining Technologies!

Jun 16, 2023

Embark on a journey into the world of machining technologies. The focus lies on CNC, VMC, and HMC, diverse but interconnected. Together, they power industries, shaping metal, plastic, and more. Experience their structure, operation, and application, plus a detailed comparative analysis.


Understanding CNC, VMC, and HMC



Full Forms  and  Basic Definition


CNC (Computer Numerical Control)

CNC means Computer Numerical Control. Inside a CNC machine, a computer directs tools to shape materials. By inputting instructions, precise cuts and shapes get created. This technology enhances speed, productivity, and precision.

CNC machines work with various materials. For instance, metals like aluminum, brass, and steel get easily shaped.


VMC (Vertical Machining Center)

Vertical Machining Centers, or VMCs, belong to the CNC machine family. Instead of manual control, computers guide the process. Machines hold the workpiece vertically. The cutting tool moves up and down.

This arrangement gives VMCs their name. CNC vertical machining center ensures high precision and productivity in numerous industries.


HMC (Horizontal Machining Center)

HMC stands for Horizontal Machining Center. These machines also follow the CNC approach. However, HMCs hold workpieces horizontally.

The spindle carries out side operations. Offering more rigidity, HMCs handle heavier cuts than VMCs. HMCs find extensive use in the manufacturing sector.


Key Components and Structure


• Understanding CNC Structure and Components

CNC machines consist of several key parts. Firstly, the controller acts as the machine's brain. Secondly, the machine operator panel is where instructions get entered.

Thirdly, the machine tool contains the cutting or shaping element. Lastly, the spindle holds and moves the machine tool.


• Analyzing VMC Structure and Components

VMCs also share some common components with CNCs. However, VMCs have a vertical spindle. The table, holding the workpiece, moves in the X and Y axes.

Moreover, VMCs feature an automatic tool changer. This part makes tool switches fast and efficient.


• Examining HMC Structure and Components

HMCs differ slightly from VMCs. The workpiece is held on a horizontally oriented table. The spindle carries out operations on the side.

HMCs also have automatic tool changers. Yet, their main advantage lies in allowing four-sided machining without repositioning.


Process Overview: CNC, VMC, and HMC


Detailed Understanding of CNC Process

In the CNC process, first, a design gets fed into the computer. The software translates the design into numbers. Next, the machine reads these numbers.

Then, the tools start cutting and shaping the material. The result? High precision components, every time.


Comprehensive Insights into VMC Process

The VMC process begins with loading the workpiece on the vertical table. After setting the tool paths, the machining starts. The spindle moves up and down, cutting the workpiece. The result? Precisely machined parts in less time.


Thorough Review of HMC Process

In the HMC process, the workpiece gets loaded horizontally. The spindle, moving on a path set by software, does the machining. This setup enables four-sided machining without repositioning. As a result, HMCs deliver excellent productivity and precision.





Full Form

Computer Numerical Control

Vertical Machining Center

Horizontal Machining Center

Initial Setup

Design to Computer

Workpiece Loading (Vertical)

Workpiece Loading (Horizontal)

Spindle Orientation




Tool Path Setting

Computer Controlled


Software Controlled

Multi-side Machining




Machining Time


Less Time

More Productive


High Precision


Excellent Precision

Table on Process Overview: CNC, VMC, and HMC


Applications and Uses


Primary Applications of  CNC

CNC machines fabricate parts for aircraft. These parts require high precision and adherence to stringent standards.

In the automotive industry, CNC machines produce engine components. Efficiency and speed are critical here.

In medical equipment manufacturing, CNC machines create intricate, precise parts.


Core Uses of  VMC

VMCs get used in producing large mold cavities. Precision is key in this process.

VMCs are ideal for machining parts for oil and gas industries.

In die casting, VMCs provide the required speed and accuracy.



Main Uses of  HMC

HMCs excel in high volume production environments due to their robustness.

For manufacturing large components, HMCs are a top choice.

In the aerospace sector, HMCs deliver precision-engineered parts.


Comparative Analysis: CNC, VMC, and HMC


Differences and Similarities



CNC machines are versatile, handling complex shapes with ease. VMCs, vertical machining centers, are a subtype of CNC.

VMCs excel in cutting on three axes simultaneously, giving precise control. CNCs and VMCs share similar control software, but VMCs have fixed spindle orientation.


• CNC vs HMC

Shifting focus, CNCs and HMCs, or horizontal machining centers, also overlap. HMCs, like VMCs, fall under the CNC umbrella.

Yet, HMCs differ in spindle orientation, lying horizontally. Thus, HMCs allow for more cutting angles, providing more flexibility than their CNC counterparts.


• VMC vs HMC

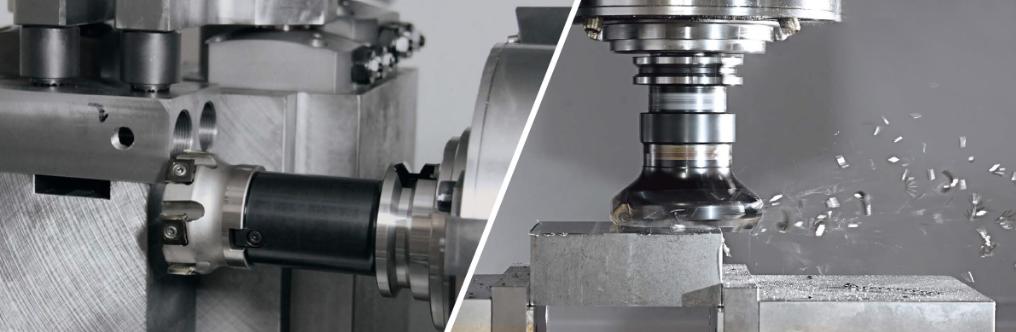

Comparing VMCs and HMCs, spindle orientation differs, impacting performance. VMCs can't handle heavy cuts like HMCs due to their vertical spindle. However, VMCs require less floor space, making them a preferred choice for smaller operations.


Analyzing CNC, VMC, HMC on Various Parameters


• Precision and Accuracy

Precision is a key factor when comparing CNC, VMC, and HMC. CNC offers great precision, with an accuracy range of 0.02 to 0.1 mm.

VMCs, being a subtype of CNC, also provide similar accuracy. HMCs, however, can offer better precision with their horizontal spindle, especially for larger, heavier parts.


• Flexibility and Versatility

Flexibility is a deciding factor in machine choice. CNCs are versatile, handling a variety of tasks. VMCs offer the same flexibility, but their fixed spindle restricts cutting angles.

HMCs have more flexibility due to their spindle's ability to cut from multiple angles.


• Speed and Efficiency

Looking at speed, CNC machines boast feed rates of 200 to 300 ipm. VMCs mirror this speed, given their CNC roots. HMCs, due to their horizontal spindle, can cut faster without vibration, boosting productivity.


• Ease of Operation and Maintenance

Operation and maintenance ease affect machine choice. CNCs and VMCs have simple, user-friendly interfaces. HMCs, despite their performance advantage, may require more maintenance and training due to their complex structure.


Advantages and Disadvantages



Advantages and Disadvantages of CNC

• CNC machines offer great precision, improving product quality. Accuracy in CNC machines usually lies within 0.02 to 0.1 mm, making them ideal for intricate designs.

• One downside of CNC machines is their cost. Initial investment, programming, and maintenance all add up, making CNC machines a pricy option for some businesses.



Pros and Cons of VMC

VMCs boast user-friendly interfaces, easing the learning curve for operators. Thus, training time and costs decrease.

A disadvantage of VMCs lies in their limited cutting angles due to their fixed, vertical spindle. This restriction may limit flexibility when handling complex shapes.


Benefits and Drawbacks of HMC

HMCs offer a high degree of flexibility due to their horizontal spindle. This allows for cutting from multiple angles, making HMCs a robust choice for diverse tasks.

One challenge with HMCs is their complex structure. Operators require more training to handle HMCs, resulting in longer setup times and higher costs.


Operational Efficiency and Productivity


Evaluating Operational Efficiency of CNC, VMC, HMC

CNC machines offer high operational efficiency, with feed rates reaching 200 to 300 ipm. This speed boosts productivity, enhancing output quality.

VMCs, despite their advantages, may face limitations in heavy-duty tasks due to their vertical spindle orientation. This restricts their operational efficiency when compared to HMCs.


Productivity Comparisons of CNC, VMC, HMC

CNC machines offer high productivity, thanks to their high speed and precision. The ability to handle complex shapes also adds to their productivity.

HMCs, due to their horizontal spindle, can handle heavy-duty tasks more efficiently. This advantage results in increased productivity, despite their higher setup and training costs.


Material Suitability


Materials Suitable for CNC

• Aluminum: Light and easy to cut, aluminum suits CNC machines. The machine quickly processes this material, yielding high-quality results.

Wood: CNC machines also work with wood. They create intricate designs with high precision.

Plastic: CNC machines manage plastics too. They craft complex parts, maintaining high accuracy.

Copper: CNC machines handle copper. They create precise, intricate auto parts from this softer metal.

Stainless Steel: Tougher than other materials, stainless steel requires high-quality CNC machines. They produce accurate, smooth results.


Materials Suitable for VMC

Brass: VMC machines often process brass. This softer metal provides easy machining.

Mild Steel: Mild steel suits VMC machines. They create detailed, precise parts.

Titanium: VMC machines work with titanium, a tough metal. This capability extends their use in aerospace industries.

Graphite: VMC machines can handle graphite. They create intricate designs with precision.

• Alloy Steel: VMC machines manage alloy steel. They manufacture heavy-duty parts for various industries.


Materials Suitable for HMC

Iron: HMC machines frequently deal with iron. They provide detailed parts with high precision.

Hardened Steel: Hardened steel suits HMC machines. They process it efficiently, maintaining accuracy.

Super Alloys: HMC machines manage super alloys. They create durable, resilient parts for demanding applications.

Inconel: HMC machines can handle Inconel. They maintain precision, even with this tough material.

Composite Materials: HMC machines work with composite materials. They deliver high-quality parts, preserving detail and precision.


Comparative Analysis: Quality of Output



Quality of CNC Output

CNC machines are known for producing high-quality parts. They can achieve an accuracy level of 0.01 millimeters. Precision and consistency are their strengths.

Regardless of material, they create detailed and intricate designs. Industries, from automotive to aerospace, value this accuracy. CNC machines provide efficient, high-quality outputs.


Quality of VMC Output

VMC machines are known for precision in machining. They can create complex shapes with a precision level of 0.005 millimeters. Speed and efficiency are their strengths.

From brass to titanium, they handle various materials. The medical, automotive, and aerospace industries appreciate these qualities. VMC machines deliver exceptional output quality.


Quality of HMC Output

HMC machines excel at working with tough materials. Their strength lies in handling hardened steel and super alloys. Precision is maintained, even at high production speeds.

They offer an accuracy of up to 0.001 millimeters. Industries like automotive, aerospace, and energy sectors value HMC machines for their robust output quality.


Maintenance Aspects


CNC Machine Maintenance

• Regular Lubrication: Essential for maintaining CNC machines. Lubrication reduces friction, extending the machine's lifespan.

Routine Inspection: Regular checks ensure the machine operates at peak efficiency. Inspection uncovers potential issues early.

Cleaning: Regular cleaning is crucial. Dust and debris can impair machine performance.

Software Updates: Keeping software updated is important. This ensures optimal machine operation.

Proper Training: Operators need proper training. Understanding how to use and care for the machine extends its life.


VMC Machine Maintenance

Periodic Lubrication: VMC machines require regular lubrication. Lubrication helps in smooth operation and reduces wear.

Inspection Routine: Regular inspections detect early signs of problems. Early detection prevents major issues.

Regular Cleaning: Maintaining cleanliness is vital. Debris can cause operational problems.

Firmware Updates: Updated firmware ensures optimal functioning. Latest updates bring improved features.

Skilled Operators: Knowledgeable operators can manage VMC machines better. They can identify and fix problems early.


HMC Machine Maintenance

Lubrication Schedule: Regular lubrication ensures smooth operation of HMC machines. This extends their service life.

Routine Check-up: Regular check-ups are crucial. They catch potential issues before they escalate.

Consistent Cleaning: Clean machines work better. Removal of dust and debris prevents operational issues.

Software Upgrade: Up-to-date software is crucial. It ensures the machine functions at its best.

Training: Adequate training for operators is essential. They can spot issues early and keep the machine running smoothly.


Factors to Consider While Choosing Between CNC, VMC, and HMC!


Production Needs: High-volume production favors HMCs. For fewer pieces, CNC or VMC machines excel.

• Size of the Part: Larger parts require CNC machines. Smaller ones fit VMCs or HMCs better.

• Precision: CNC offers high precision. Yet, VMC and HMC still maintain good accuracy.

• Material: Tough materials need the power of a CNC. For softer materials, a VMC or HMC may suffice.

• Tool Life: HMCs extend tool life due to lesser vibration. CNC and VMC machines can wear tools faster.

• Operational Costs: CNC machines consume more power. VMC and HMC machines present a more economical solution.

• Training and Skill: CNC machines require extensive training. VMC and HMC operation are easier to grasp.

• Versatility: CNC machines offer high versatility. VMCs and HMCs might require additional equipment for complex tasks.


Common Misconceptions


Debunking CNC Misconceptions

A prevailing misconception is that CNC machines are only for large industries. CNC machines cater to businesses of all sizes, offering flexible solutions for varied manufacturing needs. CNC does not only handle large-scale tasks.

Their exceptional versatility allows the execution of intricate and delicate jobs. Furthermore, the idea that CNC machines necessitate a high level of expertise isn't entirely accurate.

Modern CNC systems have become user-friendly, reducing the learning curve for operators.


Clearing VMC Misconceptions

A common misconception is that VMC machines are inferior to CNC machines. It's crucial to understand that VMCs provide efficient production for specific jobs.

They are not necessarily less versatile than CNC machines. They can perform tasks with equal precision and are more economical.

Moreover, the misconception that VMCs can't handle hard materials is false. Proper tooling and programming allow VMCs to work with a broad range of materials.


Addressing HMC Misconceptions

One common misbelief is that HMCs are overly complex and difficult to operate. In reality, modern HMCs come with simplified interfaces, making them operator-friendly.

Additionally, the perception that HMCs are only suitable for large-scale production is misleading. HMCs can perform excellently in both low and high-volume manufacturing setups.

Lastly, the notion that HMCs are costly to maintain is inaccurate. Regular maintenance can extend their lifespan and reduce operational costs.




Insight into CNC, VMC, and HMC unravels their vast impact on manufacturing. Their unique strengths, applications, and differences illuminate their roles.

The choice between them depends on specific needs. For further assistance, consider exploring CNCYANGSEN, an authentic resource on machining technologies.
