A CNC mill is one of the most important machine tools in modern manufacturing, helping manufacturers produce precise and complex parts with high efficiency and consistency. From simple brackets and housings to aerospace components and industrial parts, CNC mills are widely used across various industries.
In this guide, you'll learn the basics of CNC mills, including their working principles, main components, common types, machining processes, and key factors to consider when choosing the right CNC mill for your application.
A CNC mill is a computer-controlled machine tool that uses rotating cutting tools to remove material from a workpiece and create precise parts. Unlike manual milling machines, CNC mills follow programmed instructions to control tool movement, cutting speed, and machining operations automatically.
CNC mills can perform various operations, including milling, drilling, boring, and contouring, and are widely used for manufacturing precision components in industries such as automotive, aerospace, mold, and general machinery.
A CNC mill works by converting a digital design into machine instructions that control the movement of cutting tools. The machining process usually includes several basic steps:
1. Create a CAD Model
The part design is created using CAD software, defining the shape, dimensions, and machining requirements.
2. Generate CNC Program
CAM software converts the design into tool paths and generates G-code that the CNC controller can understand.
3. Set Up the Machine
Operators install the cutting tools, secure the workpiece, and set the machining parameters before operation.
4. Perform Machining
The CNC mill follows the programmed instructions to move the cutting tool along different axes, removing material and producing the final part.
A CNC mill consists of several key components that work together to achieve accurate and efficient machining. Understanding these basic parts helps you better understand how a CNC mill operates.
CNC Controller
The CNC controller is the brain of the machine. It reads the programmed instructions and controls axis movement, spindle speed, and machining operations.
Spindle
The spindle holds and rotates the cutting tool during machining. Its speed, power, and rigidity directly affect cutting performance and machining accuracy.
Worktable
The worktable supports and secures the workpiece during machining. It moves along the X, Y, or Z axis depending on the machine design.
Axis System
Most CNC mills use three primary axes:
Advanced CNC mills can include additional rotary axes for machining complex parts from multiple angles.
Tool Magazine and Automatic Tool Changer (ATC)
The tool magazine stores multiple cutting tools, while the ATC automatically changes tools during machining to improve efficiency and reduce manual operation.
Guideways and Ball Screws
Guideways and ball screws ensure smooth and accurate axis movement, helping maintain machining precision and repeatability.
CNC milling machines come in different configurations, each optimized for specific machining tasks. The main types include:

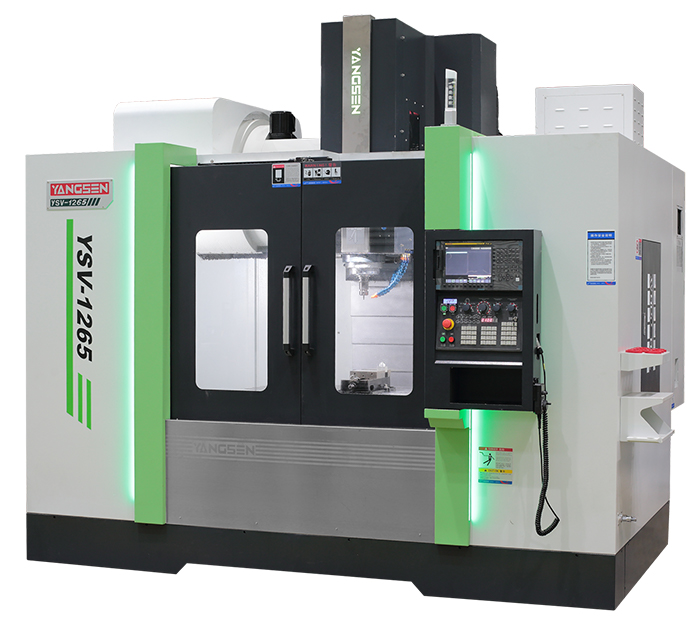

Spindle oriented perpendicular to the worktable.
Ideal for drilling, boring, and general-purpose milling operations.
Easy tool changes and accessibility for small to medium-sized parts.

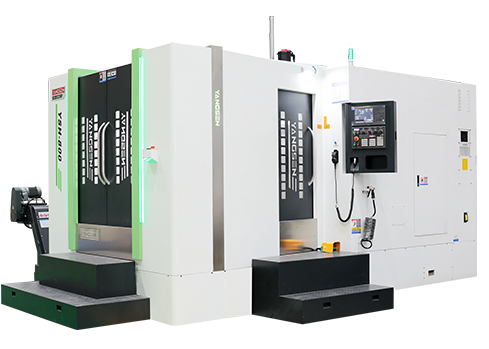

Spindle positioned parallel to the workpiece.
Suitable for heavy cutting, slotting, and grooving operations.
Handles large and dense workpieces efficiently by distributing cutting forces.
Provides simultaneous movement along five axes.
Enables machining of complex geometries, contoured surfaces, and intricate 3D shapes in a single setup.
Commonly used in aerospace, automotive, and mold-making industries for high precision and superior surface quality.
Bed-type CNC mills: Large-scale production and stability for heavy workpieces.

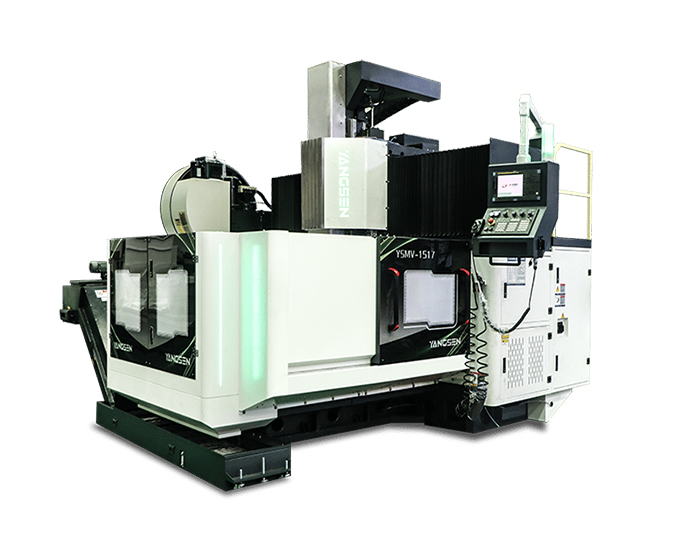

Gantry CNC mills: Suitable for very large parts or workpieces requiring long travel distances.
Multi-spindle CNC mills: Efficient for high-volume production or multi-tool operations.
|
Slotting, profiling, contouring |
Various shapes: square, ball nose, corner radius; different materials for specific applications |
Vertical, Horizontal, 5-Axis CNC Milling Machines |
|
|
Face Mills |
Surface cutting and finishing large flat areas |
High-efficiency material removal |
Vertical, Horizontal CNC Milling Machines |
|
Ball Nose Mills |
3D contouring, complex surface machining |
Ideal for molds, dies, and intricate shapes |
5-Axis CNC Milling Machines |
|
Drill Bits & Taps |
Drilling and threading operations |
Precision cutting, compatible with most setups |
Vertical, Horizontal CNC Milling Machines |
|
Tool Holders & Collets |
Secure cutting tools in the spindle |
Enhance precision, reduce vibration, extend tool life |
All CNC Milling Machines |
|
Fixtures & Workholding Accessories |
Positioning and securing workpieces |
Includes vises, clamps, and rotary tables; ensures repeatability |
All CNC Milling Machines |
|
Coolant Systems & Chip Management |
Maintain cutting temperatures, remove chips |
Improve surface finish, extend tool life |
All CNC Milling Machines |
The CNC milling process follows a series of precise steps to transform raw material into a finished component:
Design & Programming – A CAD (Computer-Aided Design) model of the part is created and converted into a CAM (Computer-Aided Manufacturing) program. This step defines tool paths, cutting parameters, and machining sequences.
Material Preparation – The selected raw material (such as aluminum, steel, or plastic) is cut to the required size and inspected for quality before machining.
Machine Setup – Cutting tools are installed, tool holders and collets are adjusted, and workholding fixtures are positioned to ensure stability and accuracy during milling.
Workpiece Mounting – The material is securely clamped on the machine table or fixture to minimize vibration and maintain repeatability.
Tool Path Simulation – A dry run or software simulation is performed to check for potential collisions, verify tool movements, and correct any programming errors.

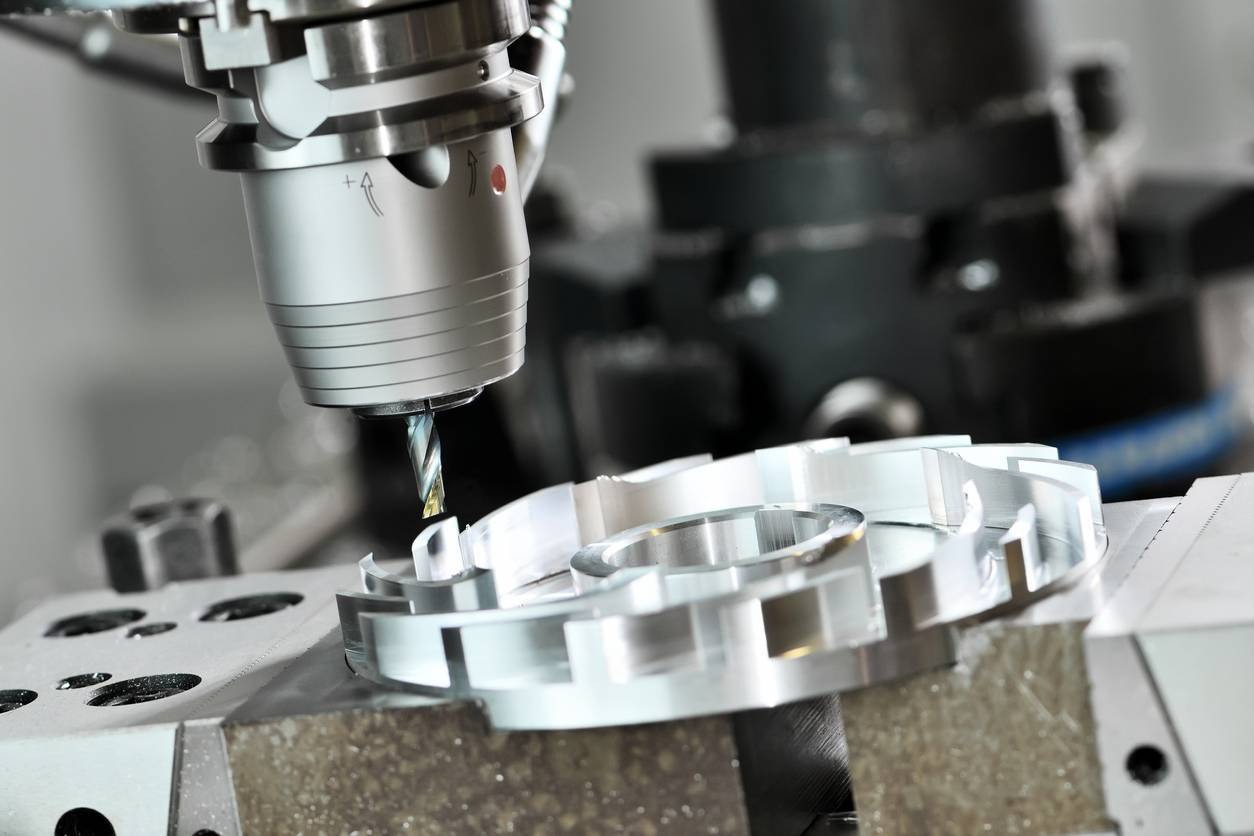

Milling Operation – The CNC machine executes programmed cutting operations such as facing, slotting, drilling, contouring, or complex 3D milling. Operators monitor spindle speed, feed rate, and coolant flow for optimal results.
Inspection & Quality Control – Finished parts are measured using precision instruments to confirm dimensional accuracy and surface finish.
Finishing & Cleaning – Burrs are removed, surfaces are polished, and chips are cleared to prepare the part for assembly or delivery.
Proper setup and operation are critical to achieving accuracy, efficiency, and long tool life in CNC milling. The following best practices help ensure stable machining performance:
Select the correct cutting tools, tool holders, and collets based on the material and machining requirements.
Use high-quality CNC milling tools to reduce vibration and maintain precision.
Ensure fixtures, vises, or clamps securely hold the workpiece to prevent movement during machining.
Check for proper alignment to avoid dimensional errors and surface defects.
Set tool length, spindle speed, and feed rate according to the material and cutting operation.
Perform a test run or dry cut to confirm correct tool paths and eliminate potential collisions.
Maintain consistent coolant flow to control cutting temperatures and extend tool life.
Remove chips frequently to prevent tool damage and improve surface finish.
Regularly inspect end mills, face mills, and inserts for wear or damage.
Replace or resharpen tools as needed to maintain accuracy and avoid unexpected downtime.
Clean the machine bed, lubricate moving components, and check spindle alignment periodically.
Routine maintenance ensures consistent performance and prevents costly repairs.
By following these tips, operators can maximize the performance of CNC milling machines, improve machining quality, and reduce production costs.
1. What is a CNC mill used for?
A CNC mill is used to manufacture precise parts by removing material from a workpiece. It can perform operations such as milling, drilling, boring, and contouring, and is widely used for producing components in industries including automotive, aerospace, mold, medical, and general manufacturing.
2. What are the main parts of a CNC mill?
The main components of a CNC mill include the CNC controller, spindle, worktable, axis system, cutting tools, tool magazine, and guideways. These components work together to control tool movement and achieve accurate machining results.
3. What materials can a CNC mill machine?
CNC mills can machine a wide range of materials, including aluminum, steel, stainless steel, titanium, brass, and engineering plastics. The suitable material depends on the part requirements, cutting tools, and machine capabilities.
4. How many axes does a CNC mill have?
Most CNC mills operate with three axes (X, Y, and Z), which are suitable for common machining tasks. More advanced machines can include four or five axes, allowing manufacturers to machine complex parts from multiple angles.
5. How do I choose the right CNC mill?
Choosing the right CNC mill depends on factors such as workpiece size, material, machining complexity, production volume, and accuracy requirements. Manufacturers should consider machine rigidity, spindle performance, axis travel, and available automation options before making a decision.
Understanding the basics of CNC mills is the first step toward choosing the right machining solution. From how CNC mills work and their main components to different machine types and machining capabilities, having a clear understanding of these fundamentals helps manufacturers make better decisions.
The right CNC mill depends on your part requirements, materials, production volume, and machining accuracy. Whether you need to produce simple components or complex precision parts, selecting a suitable machine configuration can improve efficiency, quality, and long-term production performance.
