What Is CNC Machinery: An In-Depth Look Into Its Functions

May 24, 2023

Introduction to CNC Machinery

Remarkable strides have been made in industrial manufacturing courtesy of computer numerical control (CNC) machinery, which has dramatically enhanced accuracy, efficiency, and automation in production processes by ensuring precise cuts and shapes, resulting in flawless products. This revolutionized approach that has seen the emergence of complex jewellery pieces alongside aerospace components such as engines is attributed to CNC machines that depend on computer programming for movement control.

By reducing human error rates within production processes while delivering at unprecedented speeds, these machines have also played a significant part in cost saving throughout various industries, ensuring profitability. CNC machinery flexibility is another crucial factor attributed to its widespread adoption across diverse sectors. It can manufacture multiple products made from various materials, including metal, plastic, and wood, adhering to industry standards while lowering material wastage levels. This article details more on how CNC machinery stands out amidst conventional methods discussing facets such as its historical background alongside industry applications today, sharing insight into its crucial role in modern manufacturing, including machine types available and used across numerous industries.

This article aims to showcase how employing CNC machinery can offer advantages such as amplified accuracy and productivity while acknowledging its potential shortcomings – exceptionally high initial investment costs. Additionally, we will investigate various industrial applications for CNC machinery, such as used in medical or aerospace fields.

Components of CNC Machines

The advent of advanced technology has introduced Computer Numerical Control (CNC) machines into modern-day manufacturing processes, effectively revolutionizing how things get made automatically across different fields like woodwork and metalwork, amongst other areas where precision matters most. Critical elements necessary for the efficient operation of any CNC machinery including cutting tools, motors, and controllers; each playing unique critical roles on their own but working synchronously together once integrated. But, the part of controlling operations done by this same machinery lies in the hands of a single component- the controller.

The command centre interprets software instructions and translates them into precise tool movements as instructed to operate on axes X, Y and Z, plus managing spindle speed.

Any movement required in a CNC machine occurs via motors built onto X, Y, and Z axes. Representing all possible three-dimensional directions of motion in these machines allows forward/backward movement on X; left/right movement on Y, while up/down motion is made possible thanks to the Z axes. Converting signals sent from a controller into mechanical motion output to specific axes required for functionality - motor mechanisms play crucial roles in operating these machines properly.

As for performing actual material cuts within it - this task falls under the cutting tools' responsibility; these components vary from drills, lathes, routers, mills or even lasers! To enable such cuts to be made physically, mounting them onto spindles powered by motors present within machines becomes necessary. Cutting tool movement along those same three axes ensures precision at every cut attempt.

CNC machines' additional components might also have sensors to monitor the position and accuracy of each task at every stage, as well as cooling systems and tool changers for further flexibility. If you're looking for cutting-edge manufacturing technology, look no further than CNC machines! These impressive engineering marvels seamlessly use advanced software and hardware components to streamline production processes. When creating products with these automated devices cooling systems provide crucial support by regulating temperatures that could otherwise cause damage to cutting tools or other materials being used. Additionally, tool changers enable these incredible devices to automatically switch up their methods as needed without any manual interference required!



If you are looking to find one for you and is confused about this, then surely you can try CNC Machine YSV-855-5X. if you are wondering why that would be, then let us dive into the details of the CNC Machine.


Vertical Machining Centers Customized CNC Machine YSV-855-5X

Unmatched precision, flexibility and efficiency have become hallmarks of modern manufacturing since CNC machining was introduced into mainstream production processes. One stand-out innovation is Vertical Machining Centers Customized CNC Machine YSV 855 5X - an advanced machine purposely designed for medical applications to accommodate a powerful five-axis system and vertical machining capabilities through its foundation on YSV 855 technology. In this article, we'll examine the critical elements of this revolutionary product, plus its potential uses across different industries.

Key Features

With its cross-slider T slot workbench structure, the YSV 855 5X vertical machining center boasts two sets of vertical motion mechanisms responsible for movement direction and an X direction feed table cover responsible for Y direction feed guide rail. It's highly versatile, easily switching between a grid screw-hole workbench and a rotary workbench. What's even more impressive are its technical specifications. This centre has an incredible X-axis travel distance of 850mm, a maximum Y-axis travel distance of 550mm, and a maximum Z-axis travel distance of 550mm. In addition to these impressive specs, it can accommodate workpieces up to 1000mm in length by 550mm in width while supporting up to a remarkable maximum weight capacity of 800 kg.



The YSV-855-5X vertical machining centre boasts versatility across multiple industries, such as precision mould, auto parts, and aerospace engineering. Among its impressive features are surface milling, drilling holes, and tapping.


5-Axis Linkage + RTCP Processing Advantage

Get ready for precision as you've never seen before--thanks to the YSV 855 5Xs five-axis linkage system. By allowing for movement in all five axes simultaneously, this machine takes accuracy to new heights. But that's not all--when combined with Real Time Control Processing (RTCP), it becomes a true wonderworker. RTCP delivers even greater precision across multiple applications and keeps your tool firmly connected to the workpiece for a genuinely seamless machining experience.


Overview of CNC machine

For efficient production of diverse components across several industries like aerospace, automotive electronics amongst others; manufacturers utilize Computer Numerical Control Machineries (CNC) to automate operations using computerized controls. The widespread adoption of this advanced technology has led to revolutions in manufacturing processes as it guarantees accuracy while reducing costs efficiently. In this article are insightful details on the benefits and applications of the CNC machinery process aimed at providing readers wiser insights into its potentials.


CNC Programming and CAD/CAM Software:

The successful operation of any CNC machinery relies heavily on its programming capabilities. Essentially this means creating instructions or codes that can be accurately interpreted by each individual machine involved in any given project. To achieve this goal requires some knowledge of both CAD (Computer Aided Design) as well as CAM (Computer Aided Manufacturing). Both technologies allow designers and engineers alike not only generate their specific design requirements but also produce the G codes necessary to precisely execute them. These G codes are essentially a series of programmed commands which instruct the CNC machine on how to effectively cut, move and shape raw materials for optimal results.


CNC Machines and Tooling:

From milling machines to lathes to routers and plasma cutters - CNC machines exist for several purposes. Armed with specialized cutting fixtures and tools meant for metals, plastics or wood - these machines cater to all kinds of material processing needs.


Automation and Precision:

CNC machinery presents a significant edge over conventional manufacturing methods in terms of its high level of automation. This feature substantially decreases manual involvement in production processes, effectively reducing potential mistakes while boosting overall precision. Further highlighting its capabilities is a CNC machine's ability to produce complex geometries and achieve tight tolerances that may pose challenges if done using other techniques. In effect, this results in greater component quality and consistency across batches.


Flexibility and Efficiency:

CNC machinery provides a crucial advantage through its adaptable nature that allows for quick adjustments and changes within the production procedures. This translates into manufacturers being able to expeditiously tackle design fluctuations or customer demands without enduring prolonged downtimes. Moreover, given their incessant 24/7 functionality capabilities, CNC machines enhance productivity levels while also facilitating swifter turnaround times for products.



CNC equipment may require a significant initial capital investment; nevertheless this expenditure is worth it considering its long-term advantages which offset these initial expenses. The amplified efficiency rates delivered by implementing computerized machining results in less wastage and better product quality leading to significant financial benefits down the line. Furthermore, fewer employees are required when using CNC technology thereby decreasing total production costs even further.


Types of CNC Machines

Computer Numerical Control (CNC) technology operates on computer software that facilitates machine use during manufacturing procedures. These state-of-the-art CNC devices have revolutionized product manufacturing by allowing for accurate production in an efficient manner. Here are some types of CNC machinery you may encounter, along with their corresponding applications:


Milling Machines:

Milling Machines are among the most common types used in CNC machinery. They are known for their rotary cutter design for removing materials from the workpiece, effectively creating gears, shafts or any object with intricate geometric shapes. They found wide usage within the Automotive, Aero Space sectors & Molding/Die producing industries.


Lathes are another common category within CNC machining that uses spinning tools to remove portions of material from workpieces specifically designed to create cylindrical objects like screws, bolts or any similar entity. Industries appreciate CNC machines' accuracy and speed, making them integral in production processes. Specifically, mills find significant use in creating minute parts for medical equipment or electronic devices. Meanwhile, routers work by carving or shaping materials with their cutting tools - a process that proves helpful in woodworking by producing intricate designs in wood pieces. These machines have multiple applications, such as sign-making and crafting plastic components or circuit boards.


Plasma Cutters And 3D Printers:

Plasma Cutters And 3D Printers

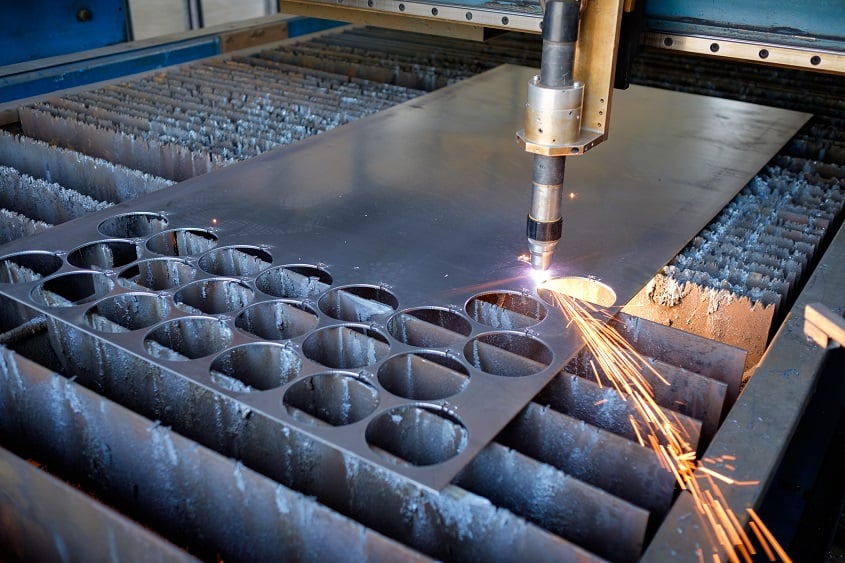

When manufacturing, two innovative technological advancements worth mentioning are plasma cutters and 3D printers, both classified as CNC machines. Plasma cutters employ high-speed jets of ionized gas to penetrate various materials like metal sheets; they also ensure precision in design creation, making them suitable for fabricating metal parts in several sectors - especially aviation and automotive industries.

Likewise, additive manufacturing is responsible for bringing about unique capabilities in CNC machining through three-dimensional printing technology employed by 3D printers, which create specific products from digital files one layer at a time. Remarkably this technology is embraced across diverse fields like medical practice or dentistry, where custom-made prosthetics or implants can be produced.

Through their precise mechanics, CNC machines have brought about unique production processes; from milling to printing, technologies like 3D printing have always completely changed product development. However, To get optimal results when using these tools, each type must be matched with its corresponding application.

It is essential to remember that readability refers to the ease with which a reader can comprehend written material. In contrast, style pertains to how an author presents their ideas.


How CNC Machines Work

CNC machine

When it comes to manufacturing processes, CNC machines reign supreme due to their computer-controlled nature, making them highly precise and fast. Basic CNC operations involve moving cutting tools via programmed motors/actuators, employing G-code programming language while also factoring in the role of machine controllers. Cutting tools' movement follows specific paths at particular speeds based on an object's geometric shape & desired cut outcome.

The X, Y, and Z axes facilitate the curvy contours' creation via these motions. G-code programming acts as a communication medium between the operator/computer & machine. It features various task-based commands like directing a tool/bit to an exact spot or changing its pace/speed.

Programmers generate G-code through specialized software. It is then fed into the controller of the CNC machine, which reads and follows the instructions to direct the cutting tool's movement.

In CNC machines operations, the controller is central to every action these devices perform. The controller's primary role is to receive G-code instructions, which it interprets before sending signals to move the cutting tools via motors and actuators efficiently. Additionally, it monitors critical aspects of machine status, such as position tracking for cutting tools, spindle speed monitoring, and coolant temperature control, while ensuring safety by shutting down the device in case of errors or limit switch triggers.

Furthermore, CNC machines can carry out further actions like automatic tool calibration and workpiece positioning, which involves manual manipulation or automated systems leveraging sensor technology or camera functionality.

Such enhancements from traditional manufacturing methods have made CNC machines more preferred due to their capability for increased accuracy while maintaining high precision levels plus speedy production processes resulting in complex shapes and contours. Success in manufacturing requires a thorough comprehension of CNC machinery's basic operations. Essential components include knowledge regarding the movement mechanics utilized by cutting tools, proficiency with G-code programming language, and awareness regarding the significance of machine controllers.



As we continue to pursue ever more efficient ways of producing goods while minimizing our impact on the environment, it's no surprise that CNC machines are becoming increasingly popular among manufacturers worldwide. There are plenty of good reasons for this trend: These tools allow for faster production times and can produce parts with unparalleled accuracy- making them invaluable for ensuring consistent quality control across entire product lines.

At the same time, using these high-tech tools allows manufacturers to reduce their overall carbon footprint, helping to promote a more sustainable future for all. In short, using CNC machines in manufacturing represents a win-win situation: Greater efficiency and precision on the one hand and a cleaner, greener planet on the other.
