How to Use Different Types of CNC Milling Machines

Nov 23, 2023

Explore the Different Types of CNC Milling Machines

CNC machines, or Computer Numerical Control milling machines, are undeniably the veritable of contemporary manufacturing. In this digital world where precision is the currency of progress, these cutting-edge machines have changed our way of cutting and shaping materials.

The materials can range from aerospace to daily routine consumer goods. What sets apart the CNC milling machines is their immaculate precision and unparalleled efficiency.

In this advanced industry, various types of CNC milling machines have evolved. Every type has its unique purpose, whether the vertical and horizontal models or the avant-garde multi-axis machinery.

Knowing these types is essential for various reasons, like optimizing manufacturing efficiency. It ensures you have the perfect tool at your beck and call. It's not just about having a machine; it's about having the precise one that aligns seamlessly with your distinctive needs.

What is A CNC Milling Machine in Simplest Terms?

A CNC milling machine stands for Computer Numerical Control milling machine. As the name suggests, these machines use computerized controls for the movement and operations of the cutting tools.

As these tools move across the surface of the workpiece, the extra material is removed in a really precise and accurate way. The resulting product is an accurate piece with your desired shape and cutting format.


Types of CNC Milling Machines

Learn a variety of CNC milling, and you will discover a spectrum of specialized types. All of these types are tailored for precise machining quests. These devices feature a precise system that is computer-controlled to guarantee a high level of efficiency and accuracy.


1. Horizontal Milling Machines

For cutting and shaping, be it through unyielding metal, venerable wood, or versatile plastics, the name of horizontal milling machines rises above the din. It has a side-facing spindle and a variety of cutting tools to allow the efficient cutting of the materials.

They are highly specialized for tasks involving 0% inaccuracy. The horizontal CNC milling comes in a horizontal machining center and a horizontal boring machine center. Both of these are fine-tuned to address tasks demanding surgical accuracy.


2. Vertical Milling Machines

When the call of crafting intricacies reverberates, vertical CNC milling machines answer with a resounding thrust. Their skyward-pointing spindle paves the way for a graceful plunge of cutting tools. Their stamping grounds often encompass industries like automotive and aerospace with notable precision.

3. Bed Mill

Another CNC milling machine is a bed mill. It is called so due to its bed-like design. It has a sliding table that is mounted onto the heavy machine directly.

Due to its bed-like design, it cannot move transversely. Another reason for not moving in a transverse direction is that a table can move only in a longitudinal direction.


4. Traveling Column

The traveling column machines are well-known for flexibility. They move the components under a stationary spindle. That is why they are suitable for various machining tasks.

Moreover, the traveling column moves longitudinally due to its carriage-column assembly. So you can machine longer parts without worrying about the length of the product.

5. Double Column

In the wide variety of milling, double-column machines step forward as the heavy-weight champions. Their pillars of high stability and strength make them indispensable for projects demanding precision of the highest order.

Double columns are excessively used in large-scale industries that manufacture heavy-weight components. The reason for using it in these industries is its powerful construction for excellent precision.


6. C-Frame

The C-frame CNC milling machine is shaped with compact dynamism. It has a frame that mimics the graceful "C," allowing easy access to the workpiece.

Small workshops and any limited working place owners prefer the C-Frame milling. So, this is a go-to choice for various industries that require precision in a less working space.


7. Drill & Tap

Another CNC milling machine with a drill and tap feature is really helpful for multitasking. They don't merely cut and sculpt because they can even drill holes and create threads for fasteners.

This Drill and Tap milling operation is preferred by people who want to save their time because it avoids multiple machines by doing machining and drilling simultaneously.


8. Multi-axis CNC Milling Machines

The multi-axis CNC milling machines sprout multiple moving appendages to weave intricate designs and surfaces.

It further comes in 3-axis, 4-axis, and 4+axis milling operations. Each of its subtypes has been explained below:

● 3 Axis CNC Milling Machine

A 3-axis CNC milling machine's grace resides in its ability to traverse in three directions. It is ideal for easy tasks. But it still doesn't compromise the precision and accuracy.

● 4 Axis Milling Machine

The 4-axis CNC milling machine spins the workpiece with a high intricacy. You can use it for angular cuts and contours in a more complex workpiece.

● 4+ Axis Milling Machine

Let us introduce the 4+ axis CNC milling machine, the maestro of multi-axial execution. It turns in perfect unison to tilt and sway the workpiece. Moreover, it boldens the task of creating sophisticated 3D marvels.

● 5 Axis Milling Machine

It has unmatched freedom to give complex and precise components life since it moves in five dimensions. For the most demanding projects, where demands for aeronautical and medical devices reach dizzying heights, this is the tool of choice.


9. Gantry Machining Centers

The Gantry machining center is conceived for important tasks in their size and import. Its standard durability and strength make it the perfect tool for creating wide and complex components.


10. Double Spindle

Double spindle CNC milling machines are like doubles of the milling circle. These machines, equipped with twin cutting spindles, traverse two separate workpieces collectively and effectively double the arms.

They seek refuge in industries where time efficiency declines. In the automotive and electronics sectors, they respond to the call for productivity during working hours.


11. Straddle Milling Machines

In this machine, many cutters come together and spread a wide net across the material. These are the masters of accuracy in large-scale, complicated expanse feats.

Moreover, they shape vast expanses of flawless perfection, wielding the scepter of decision in construction and architecture.


12. CNC Engraving and Milling Machine

A CNC engraving and milling machine emerges as the master of complex design. It is deeply ingrained in the various industries that strive for the highest level of precision.

The manufacturing of jewelry, customized signs, and various artistic creations all support this bulwark of accuracy.

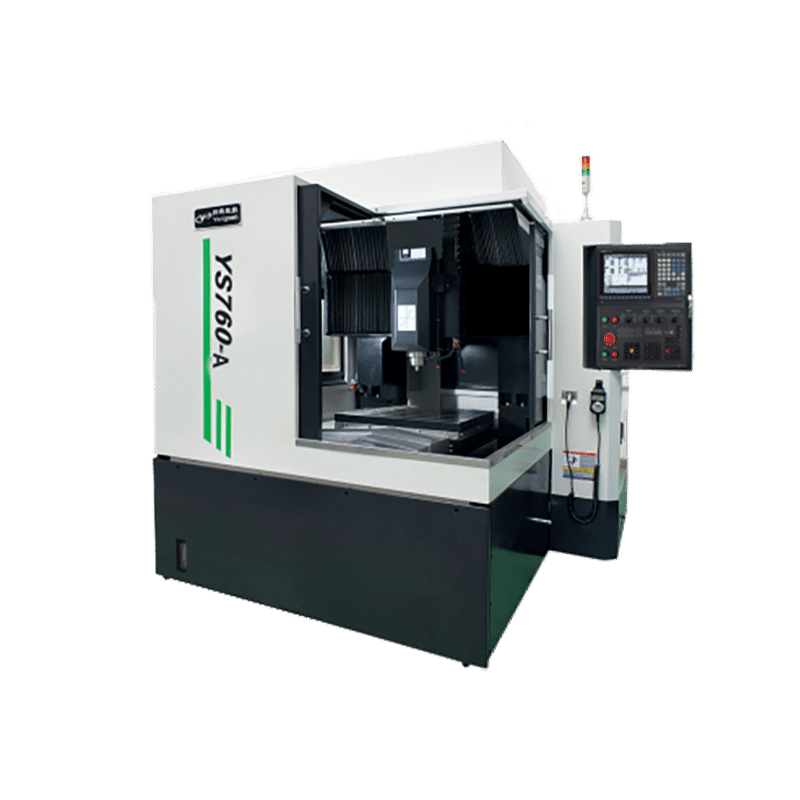

CNC engraving and milling machine

Parts of CNC Milling Machines

The fundamental investigation into the complex anatomy of CNC milling machines lies at the core of this understanding. These devices comprise a collection of essential parts skillfully knitted together to produce accuracy. At the center of this group is:

● The spindle, cradling the cutting tool,

● The worktable, where the material rests.

● The axis system choreographs the multi-directional ballet of the tool.

These are the three main components of the CNC milling machines. Without these, the CNC milling would be of no use.


Working Principle of CNC Milling Machines

CNC milling machines operate from a digital tapestry of the intended artifact that is etched into the digital soul of the machine. Here is how the CNC milling machines work:

● The machine's keeper programmed it with certain instructions, opening doors of toolpaths, records of speeds, and tales of depths.

● The spindle spins at lightning-fast speeds as the CNC milling machine becomes active.

● Concurrently, the work table sets off on a purposeful tour across the dimensions and draws along several axes.

● The blade performs a choreographed ballet. It carefully destroys the material according to the digitally inked script.


Best Features of CNC Milling Machines

CNC milling machines are infused with the lifeblood of computational technology. They provide you with an array of advanced features that metamorphose the landscape of precision machining. These three notable features are luminaries, which enrich their functionality and cement their dominance.

● Automatic Tool Changer

One of the standout features of CNC milling machines is the automatic tool changer. This tool surpasses routine tool changes. It helps in switching the tools quickly with a high accuracy.

● Spindle Coolant

The spindle coolant system provides endurance by controlling the thermal tapestry. Tool wear is eliminated, workpiece distortion is prevented, and the finished product is elevated to the highest possible level of quality.

When the production process continues for a long time, then there is a risk of machines blasting due to overheating. However, this is not the case when using CNC machines because, with their cooling agent, they remain calm and collected even in the face of high production.

● CAD/CAM Application

The intellectual powerhouse known as CAD/CAM (Computer-Aided Design/Computer-Aided Manufacturing) is the brains behind CNC milling machines.

This all-knowing software converts design concepts into exact choreography that CNC milling machines can do.


Applications of CNC Milling Machines in Various Industries

There is a wide range of industries where CNC milling machines are used. Here, we have prepared a list of all the applications of these machines:

● Aerospace

CNC milling machines are the architects of accuracy in the infinite sky and the universe beyond. They design the parts that are brave enough to explore the unexplored reaches of space and aviation, where performance and safety become synonymous with each other.

● Industries

CNC milling machines bring life to various businesses, from little workshops to enormous factories. They provided the foundation for the strong fortifications of bridges and drafted the design for elaborate jewelry.

● Automotive

CNC machining machines make a lasting impression within car sinews and under hoods. They mold engines' hearts, transform complex transmission systems, and precisely carve the bodywork.

● Robotics

CNC milling machines produce complex components that give robotic creatures the power to move and function. They shed light on the symphony of automation and the story of artificial life.

● Medical

CNC milling also contributes to saving your lives. Their advanced machinery is preferred for building artificial limbs and crafting intricate instruments that save human lives.

● Prototypes and Custom Designs

In innovation, CNC milling machines stand as midwives to developing ideas. Designers and innovators use these machines to turn their ideas of resting designs or prototypes into reality.

● Commerce & Telecommunication

In the age of digital expansion, CNC milling machines assume the mantle of vitality. They craft intricate components that empower communication networks, from smartphones to satellite communication equipment.

● Entertainment

The entertainment sector mostly depends on CNC milling operations. In this sector, these machines help craft stage props and illuminating systems.

● Technology and Security

In the technological era, CNC milling machines have the components that safeguard our digital sanctuaries. They also help us in staying connected irrespective of our locations.


Advantages of CNC Milling Machines

These five distinct benefits of CNC milling machines are all parts of one shining whole.

● Precision

The top benefit of the CNC milling operation is precision. They build highly accurate designs to master the art of detail. This precision is an essential requirement in industries like aerospace and medicine, where every detail matters.

● Accurate and Fast

CNC milling machines also excel in speed. Their working speed emerges as a game-changer in the fast-paced modern manufacturing, where time is gold and productivity reigns supreme.

● Advanced and Safe Features

Safety is a noble factor among the advantages. CNC milling machines drastically reduce the risk of accidents with their advanced features. They can work accurately for a long time without any major issues.

● Less Energy Consumption

The modest energy consumption of CNC milling machines not only reduces the carbon footprint but also confers cost-effectiveness. The reduced energy bills birth a harmonious union between business and environmental responsibility and shape a win-win scenario for all.

● Versatile Materials

Lastly, the CNC milling machines are highly versatile. These machines can work with the entire spectrum of materials ranging from the unyielding domains of metals to the versatile plastics and everything in between. That is why large-scale industries like using CNC milling machines.



CNC milling machines have assumed the mantle of transformation in manufacturing. Their exceptional precision, unfaltering speed, and pro versatility have eclipsed conventional methodologies. These machines are laden with advanced features and humble maintenance demands.

Moreover, they have ingrained themselves as indispensable assets across the diverse strata of industries. They have not merely streamlined production; they have etched a new archetype of excellence in the annals of manufacturing.
