Decoding G and M Codes: Your Comprehensive Guide to CNC Programming!

Aug 01, 2023

Decoding the mystery of G and M Codes holds the key to mastering CNC Programming. In this guide, the aim is to dissect these codes, revealing their function in operating CNC machines.

The detailed exploration includes understanding CNC machines, programming fundamentals, common mistakes, and optimization tips. All towards empowering you to confidently navigate the world of CNC Programming with G and M Codes.

In-depth Understanding of G Codes!

Definition and Role of G codes in CNC programming

G codes, pivotal in CNC programming, command machine movements. Each code implies an operation. G01, for example, instructs a linear move. By using G02 and G03, clockwise and counterclockwise arcs are crafted, respectively. Uniting these G codes in sequences fosters intricate patterns, enabling precise CNC machining.


Classification of G codes

· Motion Codes

Categorizing G codes, one finds Motion Codes crucial. These commands oversee CNC machine movements. G00 quickly positions the tool. For straight line movement, G01 is key. For creating arcs, G02 and G03 are of great importance. Hence, correct usage aids efficient manufacturing.


· Feed Rate

Consider G codes defining feed rate. G94 instructs the machine on how fast to move, measured in inches per minute (IPM). However, G95 considers feed rate in terms of revolution per minute (RPM). Proper applications guarantee optimal cutting speeds, fostering efficient CNC operations.


· Plane Selection

In CNC machining, G17, G18, and G19 denote plane selection. G17 means XY plane, G18 indicates XZ plane, and G19 points to YZ plane. Such codes guide CNC machines, shaping a workpiece's cutting path.


· Tool Length

G43 and G49 regulate tool length in CNC. G43 sets tool length compensation, using H as a parameter. Conversely, G49 cancels the compensation. Understand the importance of such codes in avoiding tool collisions.


· Dwell

Pause in the machine's operation, dwell, has G4 code. It requires a parameter P for the dwell time. In engraving and milling machine operations, incorporating dwell at certain points aids precision.

· Canned Cycles

Canned cycles simplify complex operations. G81 indicates drilling, G82 allows drilling with dwell, G83 represents peck drilling, and G85 means boring. These codes expedite programming and enhance machining efficiency.


Typical G Codes and Their Uses

· G00 Rapid Move

In machining, G00 helps to move tools rapidly. Think of a journey between two points -Point A to Point B, with no delay. Speed matters when time-saving equates to cost reduction. Hence, the CNC machine utilizes G00, ensuring swiftness and precision mold.


· G01 Linear Interpolation

Interpolation in CNC language signifies tool movement. So, G01 comes into play for straight lines. For instance, cutting or drilling along a defined path. Thus, with G01, you achieve neat, linear machine operations.


· G02 CW Interpolation

Visualize a potter’s wheel, spinning clockwise. That’s G02 for you in CNC machining. It aids in creating round or curved patterns. Moreover, it saves time by following a path of least resistance.


· G03 CCW Interpolation

What if the wheel spins in the opposite direction? G03 makes it possible. Anti-clockwise rotations aid in carving out unique shapes. With G03, CNC machines become more versatile, meeting diverse design requirements.


· G20 Inch Unit

CNC machines rely on G20 to understand inch measurements. Machine tool path, tool lengths, and offsets are all affected by this code. Ensuring proper setup with G20 guarantees precision in operation.


· G21 Metric Unit

Instead of inches, G21 dictates the use of metric units. These include millimeters, centimeters, and meters. Global industries frequently use this code, establishing a common language for CNC operation.


Understanding the structure of G codes

Each G code consists of a letter and number, like G20. The letter represents a group, while the number designates an action. Precision in programming these codes allows for the exact motion control in CNC machining. With ample knowledge of G codes, production efficiency and accuracy increase. Thus, mastery of G and M codes remains essential in the CNC world.


In-depth Understanding of M Codes!

Definition and Role of M codes in CNC programming

M codes, in CNC programming, act as crucial tools for machine operations. These codes, a crucial part of G and M codes, guide actions like turning coolant on/off, program start/end, and spindle direction. Every M code performs a distinct action, enabling precise control over complex machining tasks. Hence, M codes hold key roles in executing CNC operations accurately and efficiently.


Classification of M Codes

· Program Start/End

In CNC programming, M codes control program start and end. M codes like M02, M30 signify program end, ensuring efficient operation termination.

M codes like M03, M04 regulate spindle direction, marking program start. Understanding these M codes helps in better management of CNC machining processes.


· Tool Change

M codes also manage tool changes in CNC operations. M06, for example, denotes tool change, ensuring seamless transition between machining steps. Implementing these codes effectively can lead to substantial improvements in productivity and precision in CNC machining.


· Spindle Control

In managing spindle operations, M Codes excel. Codes M03, M04, and M05, for example, ignite, halt, and reverse spindle rotation respectively. So, with correct use, users command their machines effortlessly. Originality and simplicity underpin these codes, ensuring easy comprehension.


· Coolant Control

Coolant control also falls under M Codes' purview. M08 initiates the coolant flow, while M09 ceases it. Accurate application promises to enhance tool life and machining precision. These codes, short and unambiguous, ensure smooth machining processes.


· Pallet Change

The necessity of pallet changes in CNC machining isn't understated. Here, M Codes like M06 execute tool changes, fostering efficiency. The short form, clear instructions underscore the reliability of these codes in the manufacturing arena.


· Override Controls

Override controls contribute to flexibility in machining operations. M Codes such as M48 and M49 enable or disable speed overrides, offering control on demand. These numeric commands, compact yet powerful, cater to diverse machining requirements.


Typical M Codes and Their Uses

· M00 Program Stop

The M00 code in the realm of G and M codes represents a program stop. Crucial in managing machine operations, the code makes the machine halt temporarily.

Numbers, like the machine's RPM or the feed rate, pause, enhancing operator control. Abbreviations, such as RPM, signify rotational speed. Notably, machine safety heightens with M00.


· M01 Optional Stop

A paramount code in CNC programming, M01, signals an optional halt. Commanded to stop, machines pause operations when conditions allow.

Pertinent parameters, like spindle speed or tool position, hold still during the pause. Tools, like the end mill, wait in readiness for the next command. It's an integral part of maintaining workflow.


· M02 End Program

The M02 code carries a vital role, signaling the end of a program. A CNC machine stops completely, with the spindle halting and the tool retracting. Parts like the tool turret reset, concluding the cycle. Trust M02 for achieving a smooth operation termination in CNC programming.


· M03 Spindle Start

Initiating spindle rotation is the role of M03. Vital for cutting processes, M03 activates the machine's central axis. Various parameters like RPM and tool position come into play. Tools, like drills or lathes, can begin their job. Remember, M03 sets the stage for successful machining tasks.


· M06 Tool Change

As an M code, M06 commands a tool change. Imagine a CNC milling machine working on metal. When the command M06 triggers, the tool changes swiftly. The result is a smooth, streamlined process without manual intervention.

· M08 Coolant On

With M08, a coolant system activates. In a turning machine, M08 lets coolant flow. The coolant cuts down the heat generated, ensuring the machine's longevity. An imperative function, M08 keeps CNC machines safe and efficient.


Understanding the structure of M codes

Every M code follows a unique structure. A simple two-letter prefix, 'M', precedes each code number. In CNC programming, these codes are commands. M codes talk to machines.

They initiate various machine functions. M codes tell a machine when to start, pause, or end. These codes handle auxiliary functions like coolant activation (M08) or tool changing (M06). Hence, M codes ensure seamless machine operation.

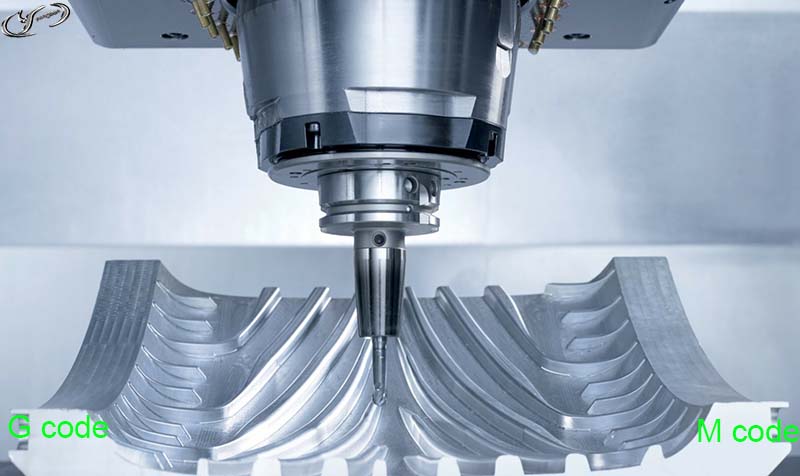

Relationship between G and M Codes!

G and M Codes

· Sequential Execution

G and M codes drive CNC machines in a logical sequence. Code G1 signifies a straight move, while M03 starts spindle rotation. Both function systematically to create a workpiece.


· Mode Grouping

G codes fall into various mode groups. Take G0 and G1, for instance. Both belong to group 1, controlling the machine's movement.


· Non-Conflict Coexistence

Some G and M codes can exist together without conflict. In a single program, M05 (stop spindle) might follow G0 (rapid move). Each does its part in harmony.


· Command Overriding

With G and M codes, some commands override others. As an example, code G0 (rapid move) cancels G1 (straight move) in the same group.


· Interaction Dynamics

G and M codes interact dynamically. G01 might guide a linear move, and M08 might release coolant. The interaction aids the work process.


· Function Specificity

Each G and M code serves a specific role. For instance, M02 denotes program end. G90 puts the machine in absolute mode. They govern machine operations.


Writing CNC Programs!

· Design Planning

Before embarking on G and M codes, design the piece. Define the part's dimensions. CNC machines need clear design details.


· Code Structuring

Create a blueprint with G and M codes. Structure these codes for optimal performance. The design then comes to life.


· Tool Pathing

Develop a tool path. Use G and M codes to navigate the machine. Direct the tool's route for precise shaping.


· G-Code Writing

Writing G codes is vital. G01 might guide a linear move. G02 could initiate a clockwise arc. Each code defines an action.


· M-Code Insertion

Insert M codes to control auxiliary functions. M03 might start the spindle. M05 could stop it. These codes add operational depth.


· Program Testing

Ensure the G and M codes work as planned. Mistakes can be costly in CNC operations. Correct them before the actual production.


Common Mistakes in Using G and M Codes!

· Incorrect Feed Rates

Feed rates control the speed of tool movement. Incorrect settings lead to poor surface finish and tool damage.


· Mismatched Units

Programming G and M codes in different units (inches or millimeters) can cause machine errors. Confirm the units before starting.


· Wrong Coordinate System

G and M codes rely on coordinates. Setting the wrong system may result in part inaccuracies.


· No Spindle Speed

Forgetting to set the spindle speed might halt your operation. Always remember to input the correct spindle speed.


· Neglecting Tool Changes

CNC machines use multiple tools. Neglecting to program tool changes can damage the machine and the part.


· Incorrect Tool Offsets

Mistakes in tool offset settings can result in inaccuracies. Always double-check before starting.


· Overlooking Program End

Missing an end code might confuse the machine. Ensure each program has a defined start and end.


· Incorrect Coolant Use

Coolant keeps tools cool and removes debris. Not using it or using it incorrectly can damage the tools.


· Missing Program Start

Forgetting to start the program can delay operations. Always ensure the program start is well defined.


· Improper Dwell Time

Dwell time is crucial for accurate results. Improper settings may cause errors or poor finish.


Tips for Optimizing CNC Programs!

· Utilize CAD/CAM

Computer-aided design and manufacturing tools help create precise, efficient G and M codes.


· Correct Feed/Speed

Precise feed and speed settings result in better surface finish and extend tool life.


· Efficient Tool Paths

Designing efficient tool paths saves time and energy. Optimization leads to faster, more efficient machining.


· Minimize Air Cuts

Air cuts, when the tool moves without cutting, waste time and energy. Minimize them for efficient operations.


· Use Canned Cycles

Canned cycles are predefined codes for common operations. Using them can streamline programming and improve efficiency.


· Appropriate Coolant Use

Correct use of coolant improves tool life and surface finish. Always apply coolant correctly for best results.



Throughout this comprehensive journey, the core essence and utility of G and M Codes in CNC programming have been unraveled. Knowledge of CNC machines, programming fundamentals, G and M Codes, and error prevention methods have been bestowed.

To deepen this understanding and apply these insights in real-world scenarios, head over to CNCYANGSEN. There, you can learn, apply, and become a skilled professional in CNC programming.
