CNC Milling Machine Operation

Apr 10, 2025

CNC Milling Machine Operation requires more than simply pressing start and anticipating the machine to perform by itself. Each cut, every pass, and every tool change matters. You will observe tool breakage and poor finishes or machine vibrations when something goes wrong through improper tool speeds, bad fixturing, or dull tools. The process results in both time loss and material waste and extra expenses during production.

A CNC milling machine operates flawlessly when users finish their setup work and select appropriate tools while keeping a close eye on each process step. The system delivers both high precision and fast operation and excellent efficiency at the same time without causing any problems.

This guide explains the setup methods together with calibration processes, as well as procedures for tool selection and troubleshooting steps, along with best practices for execution. The information will help beginners and experienced operators to cut material at high speed with intelligence along with complete assurance. Let’s get started!



CNC Milling Machine Components

A CNC milling machine attains its excellence through the quality of its components. All machine parts serve essential functions to achieve precise operation combined with stability and maximum efficiency. All essential parts required for smooth machine operation need detailed examination.

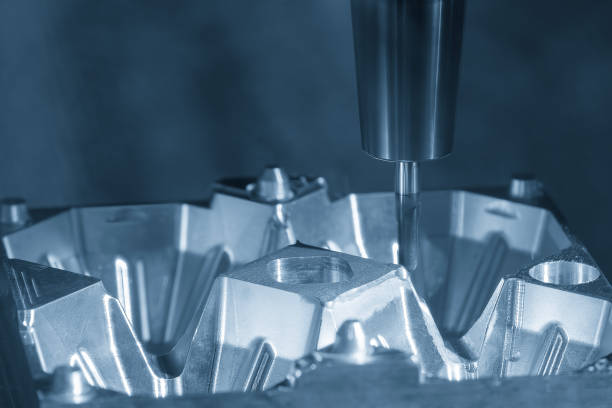

Spindle & Tool Holder – The Cutting Powerhouse

The spindle operates as the main operational component inside a milling machine. The cutting tool orbits at high speeds based on how it will handle material cutting operations. A machine's spindle speed, together with its power output, depends on its design specifications because high-speed spindles handle fine details, whereas high-torque spindles cut through tough metals.

The cutting tool remains fixed during operation through the tool holder mechanism. Poor-quality or loose tool holders introduce tool runout and vibration, as well as poor surface finishes. The safety of the machining process depends on operators who verify correct tool clamping along with maintaining balance and alignment.

Worktable & Fixtures – Keeping the Workpiece Steady

A successful operation in CNC milling depends entirely on a dependable setup. The worktable holds the material in place while the machine cuts. Fixtures, along with vises and custom clamps, must be in place to secure the material because material movement needs to be completely prevented.

Why does this matter? Workpiece displacement by any amount less than a millimeter causes both dimensional errors and tolerance failures and material waste. Fixturing approaches must receive proper attention because they determine the success of accuracy and repeatability results.

Linear Guides & Ball Screws – Precision in Motion

The operation of CNC milling depends on high-precision movement and linear guides and ball screws provide this capability.

  1. The design of linear guides provides a rigid, smooth motion on all X, Y, and Z axis movements. The smooth movement of the machine depends on these components, which decrease mechanical resistance.

  2. The servo motor's rotational signal becomes linear movement using ball screws which dictates precise machine movement routes. Ball screws of high quality produce better backlash performance, and tighter precision control and better dimensional accuracy which leads to smoother cutting processes.

Failure of these system components without proper maintenance or lubrication leads to both positional errors and machine failure and rough cutting over an extended period.

Coolant System – Controlling Heat and Extending Tool Life

Heating becomes a major issue when performing milling operations. The cooling system operates through lubrication to protect both tools and workpieces from overheating. A rapid increase in heat occurs when coolant is absent, which results in various negative consequences:

  • A failure of cutting edges occurs because of premature tool wear.

  • The heat from thermal expansion forces parts to warp, which lowers their accuracy levels.

  • Built-up chips that accumulate lead to re-cutting operations, which damage the surface.

Coolant delivery matters. A flood coolant system is suitable for removing substantial materials, yet air blast and mist cooling systems offer superior performance during precision machining operations. Proper filtration of coolant together with clean coolant fluid stops machine wear and contamination.

CNC Controller & Interface – The Brain of the Machine

All machine operations, together with speed adjustments and toolpath execution come under CNC controller management. The controller processes G-code instructions, which direct the motor movements for accurate precision.

The contemporary CNC controllers provide interfaces with touchscreens together with real-time monitoring and adaptive control features. The interface allows operators to modify speeds together with tool path programming as well as observe spindle loading conditions.

An appropriately written control program leads to clean cuts while reducing mistakes and enhancing part uniformity. The system can experience unexpected tool crashes and downtime and create scrap parts due to bad code, communication errors, or software bugs.



CNC Milling Machine Operational Setup and Preparation

CNC milling requires accurate setup as its foundation because it enables precise and reproducible operations. CNC performance decreases when the calibration fails or tool selection is inadequate or if the workpiece loses stability which leads to poor tolerance and surface finish and potential machine failure. The steps for analysis will be explained in detail.

Proper Machine Calibration & Zeroing

The CNC mill requires a reference point which work offsets (G54-G59) establish as a fundamental requirement. The machine receives table location information from these offsets precisely.

The cutter begins its operation in the incorrect zone when offsets are incorrectly configured, resulting in wrong part features, wasted materials, and potential tool failures. Before starting a program it becomes necessary to check and modify work offset values for each new machine setup.

Using Edge Finders and Probes for Precise Alignment

Edge finders and probes enable users to detect the specific position of workpieces. Edge finders function as material edge detectors that enable users to perform manual zero adjustments of their machines. Touch probes carry out automatic offset changes when detecting surfaces through their sensing capabilities.

  • A misalignment of mere 0.01 mm introduces tolerance problems, thus requiring setup with precise tools.

  • Tool Length and Diameter values must be checked through compensation systems.

Tool lengths differ from one another, which affects outcome quality. The spindle receives tool length offset values to adjust its movement according to different tool dimensions. Unproper offset settings result in part destruction either from excessive depths of cut or inadequate depths of cut.

The diameter compensation feature enables machines to handle changing tool sizes due to wear or variations. Before starting any job for tight-tolerance parts manufacturers should always confirm tool dimensions in actual measurements.

Selecting the Right Cutting Tools

The selection process for cutting tools depends on whether users need end mills, face mills, or drills while machining various materials.

A unique method applies to each material type.

  • End mills serve three purposes: profiling operations, slotting, and basic material removal.

  • Face mills help speed up the flattening of expansive surface areas.

  • The drilling process requires accurate control of movement rates and rotational pace despite its ability to make holes.

The choice of incorrect tool will cause surface finish deterioration and tool degradation, as well as machine component damage.

Understanding Tool Coatings and Their Effects on Machining

Coatings serve purposes beyond aesthetics because they increase tool longevity while delivering improved operational results.

  • The coating TiN shows reduced friction properties while offering suitable performance for regular machining tasks.

  • TiAlN (Titanium Aluminum Nitride): Withstands high heat, great for hard metals.

  • Diamond Coatings are the optimal choice during machining operations of composite materials and tough abrasive materials.

Inappropriate tool coating selection results in temperature problems, weak chip clearing, and broken tools. Every coating choice needs to correspond exactly to the material undergoing cutting.

Proper Tool Holder Selection to Prevent Vibrations

The cutting tool requires the tool holder to keep it secure, although different holders have different levels of performance. Tools held by poor-quality holders produce mechanical vibrations as well as running inaccuracies and tool bending that reduces machine precision.

  • Small tools find excellent support through the use of collet chucks.

  • Rigid end mill holders deliver better performance during heavy cuts.

  • The exceptional balancing properties of shrink-fit holders make them ideal for high-speed machining operations.

A tool holder that lacks proper fit will produce irregular cuts while accelerating tool deterioration as well as deteriorating surface quality. Each work operation should begin with verifying that the machine setup is suitable for proper fit.

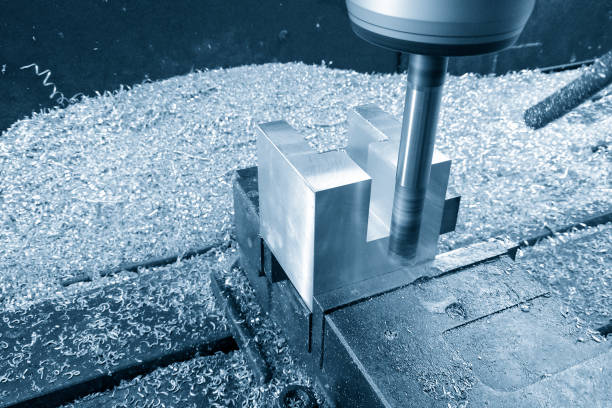

Workpiece Clamping and Fixturing

Manufacturers should use vices, Clamps, and Custom Fixtures as stability tools.

Running work materials will produce catastrophic results. Parts that receive proper clamping achieve both precision and safety in addition to repeatability.

  • Most workpieces use vise clamping as their standard method.

  • Large flat materials benefit from toe clamps as their preferred tool.

  • Complex parts require custom fixtures as their most suitable support method.

  • Poor machinery settings generate three main problems: part misalignment, excessive tool movement, and tool damage.

Workpiece movement should be prevented because it causes dimensional errors

Any minimal movement of the workpiece will destroy its tolerances. Always check for:

  • The part needs to touch the fixture at secure points.

  • The distance from the material surface to the edge must be minimal to avoid any bending or deflection.

Proper Alignment with the Cutting Tool Path

The setup of precision parts requires additional clamping inspections after roughing operations since tool vibration might cause fixture looseness.

  • Correct clamping pressure establishment helps stop part deformation in its tracks.

  • Too little pressure? The part moves. Too much? Material distortion becomes a factor when dimensions get misaligned after deformation.

  • The clamping force on soft metals like aluminum and copper should be light to minimize distorting their shape.

  • Steel and titanium materials withstand high clamping pressures better than other metals.

  • A proper balancing of pressure is needed to prevent crushing in thin-walled structures.

The correct pressure application leads to uniform parts with no damage.



Step-by-Step CNC Milling Machine Operation

Operating a CNC milling machine requires more than just initiating the start function. The entire process demands precise execution since it starts with program loading and ends with speed adjustment. The following guide presents all the necessary steps for you to achieve perfect results and smooth project completion during each operation.

The G-Code program requires two steps for successful operation.

Step 1: Loading and Running the G-Code Program

Placement of the G-code file into the machine controller stands as your first requirement. The CNC mill receives instructions through this program, which specifies both its position as well as the speed and depth of cutting. The tool requires a thorough error check before operation because a single incorrect line can result in equipment damage toward the workpiece.

Step 2: Running a Dry Run to Check for Toolpath Accuracy

Do a dry test operation, also known as an air cut, before starting any actual cuts. The machine’s motion can be observed through this function, which does not require activating the cutting tool. A toolpath problem can often be solved by verifying work offsets G54- G59 together with tool length compensation. Testing the machine in a dry run function protects investments from valuable errors and equipment damage.

Step 3: Adjusting Feeds, Speeds, and Depth of Cut if Necessary

Evaluate the program by checking its appearance then optimize feed and speed parameters. The tool life can be negatively affected by both slow operating speeds, which create built-up edge (BUE), and high speeds, which result in tool failure. The depth of the cut must change based on the material hardness together with the tool capacity limitations. The adjustments made to these parameters lead to operational excellence combined with better accuracy and improved tool durability.

Step 4: Controlling Spindle Speed and Feed Rate

Optimal Cutting Speeds for Different Materials

The correct spindle speed (RPM) ranges specifically depend on the material type. The process of aluminum material removal requires fast spindle speeds to prevent a built-up edge, but titanium material requires lower speeds to prevent heat generation. Running the machine at improper RPM levels causes both damaged workpieces and tool destruction together with overheating.

How Feed Rates Affect Surface Finish and Tool Life

Through feed rate control, the tool earns its speed within the material. Running at a slow speed creates rubbing motions which cause burned edges along with tool deterioration. The rapid movement of the cutter tool can cause deflection, resulting in tool failure, surface errors, and tool breakage. The optimal results emerge when the feed rate matches spindle speed according to material hardness, tool type, and depth of cut considerations.

Program different cut parameters for the roughing operation and finishing stage

Fast tool removal happens through aggressive feeds along with high speeds during roughing operations. The process of finishing passes demands controlled speed reductions for obtaining refined surface quality. The program separates parameters for roughing and finishing operations because it extends tool durability and preserves accuracy.

Step 5: Monitoring the Machining Process

Watching for Unusual Vibrations, Chatter, or Overheating

Machine chatter, along with unusual tool vibration, indicates that an instability exists between equipment wear-out, improper speeds, and unstable product setup. The tool needs either a coolant flow adjustment or a speed setting adjustment when it overheats. Proper correction of these issues will lead to partial system failure while creating expensive maintenance requirements.

Using Real-Time Tool Wear Monitoring to Prevent Failures

The tool wear detection functionality of modern CNC equipment sends alerts to users about necessary tool replacements. Operating tools with dullness or missing chips damages precision, which produces out-of-tolerance components and harms spindle units. Tool examination enables organizations to prevent both facility stoppages and expensive repair expenses.

Adjusting Coolant Flow for Better Chip Evacuation

The coolant functions beyond temperature regulation by ejecting chips to prevent their re-cuts of material surfaces. Inadequate coolant flow will result in tool failure as well as equipment overheating while causing chip buildup to form. The maintenance of clean chip disposal depends on proper cooling fluid direction in combination with exact pressure levels.

Best Practices for Efficient CNC Milling

1. Regular Cleaning and Chip Removal

The machine functions properly when chips and debris are eliminated, thus minimizing mechanical failure risks. Chips that accumulate within coolant lines will cause line clogging while simultaneously damaging linear guides. Proper workspace cleaning occurs each day to guarantee both operational machine efficiency and correct positioning precision. The removal of contaminants from the operating space allows heat levels to decrease, thus producing superior tools and better finished surfaces.

2. Proper Lubrication and Component Inspection

The reduction of linear guide and ball screw and spindle bearing wear occurs through their lubrication application. Extended equipment lifetime results from regular lubrication since it prevents damage caused by friction. Moving components should undergo regular checks to identify early wear symptoms that require immediate attention. Appropriate equipment maintenance prevents both equipment shutdowns and preserves the accuracy of machine processes.

3. Optimizing Feeds, Speeds, and Depth of Cut

The process achieves its maximum operational efficiency through the simultaneous use of tool life duration and cutting speed management. High-speed machining produces shorter cycle times only when machine operators establish suitable parameter settings. Modifying both the feed rate and depth of cut helps prevent tools from experiencing destructive damage. The right sort of optimization allows production systems to generate neat cutouts and finished products while preserving tool condition.

4. Monitoring Tool Wear and Performance

Equipment wear produces both surface damage and accuracy problems. Before beginning each work start the tool requires a condition inspection to stop equipment from unexpectedly failing. Deterioration indicators from tools transmit real-time data that helps manufacturing teams detect tool degradation before it becomes serious. The quality of products stays constant while machine performance increases when tools get replaced at their proper time.



Conclusion

Smooth CNC Milling Machine Operation requires three vital elements: maintenance consistency and appropriate parameter adjustment along with continuous system oversight. The machine operates optimally when maintenance personnel clean it alongside lubrication and inspection checks. Improving the tool's longevity together with increased operational efficiency comes from changing the feed rates and spindle speeds and cutting depth parameters. The correct maintenance practices lead to precise results while reducing operational interruptions and boosting operational output.
