CNC Machine Control Systems: The Heart of CNC Machining!

Jun 26, 2023

Unleash power with CNC machine control systems, the heart of modern crafting. Begin a journey into the realm of these systems, their parts, functions, and vast importance. Knowledge awaits, as the words herein will enlighten the mind, providing in-depth insights.

The Basic Components of CNC Machines!

Input Devices: CNC machines need input devices for instructions. For example, programmers use punch tapes or floppy disks. Now, most rely on USB drives. These instructions are vital to operate the machine.

Machine Control Unit (MCU): MCU forms the heart of a CNC machine. This unit reads and decodes instructions. MCU directs the machine to follow the coded instructions. Each operation relies on MCU's accurate interpretation.

Drive System: The drive system consists of drive motors and ball lead-screws. The motor rotates the ball lead-screws. This rotation moves the machine parts as per MCU instructions.

Machine Tool: CNC machine tools perform the actual cutting work. The machine tools include drills, lathes, and milling machines. Each tool has specific functions to shape the workpiece.

Feedback Devices: These are also called measuring systems. They provide information to the MCU about the machine’s actual position and speed. Devices like encoders help in achieving precision.

Understanding CNC Machine Control Units!

Defining a Machine Control Unit (MCU)

At the core of CNC machine control systems lies the Machine Control Unit. This component decodes the instruction fed into the system. Then, it converts these instructions into mechanical motions. In other words, MCU is the brain of the CNC machine, guiding all operations.


Functions and Responsibilities of an MCU

Instruction Decoding: MCU's primary function is decoding instructions. Each command from the input device is read and interpreted. This is the first step towards machine operation.

Signal Conversion: After decoding, the MCU converts the signals. These signals are then relayed to the drive system. The conversion ensures proper execution of the command.

Overseeing Operations: The MCU oversees all operations. It ensures each process occurs as planned. This function is crucial for high-quality output.

Error Detection: MCU checks for errors during operation. If it finds any discrepancy, the system halts. This prevents damage to the machine and the workpiece.

Coordination: The MCU coordinates the operation of the CNC machine. It manages the drive system and machine tool. This results in a synchronized operation.


Different Types of Machine Control Units

Point-to-Point Control Units: These MCUs are for simple operations. The workpiece moves from one point to another. These are common in cnc drilling machine and punching machines.

Linear Control Units: Linear MCUs manage machines with continuous tool paths. The tool moves in straight lines. This is common in cnc milling machine and lathe machines.

Contouring Control Units: These MCUs handle machines that require complex movements. The tool moves along several axes. These are common in advanced milling machines.



Instruction Decoding

Signal Conversion

Overseeing Operations

Error Detection




Interpret commands

Convert signals

Monitor processes

Check for errors

Manage operations

Specific Use


Read and interpret

Decoding to drive system signals

Ensure proper execution

Halt on discrepancies

Synchronize drive system and tool



Basic understanding of commands

Signal translation

Complex task management

Error analysis

Multitasking and timing

Ranges from simple to complex


Crucial first step

Ensures proper signal transmission

Guarantees high-quality output

Prevents damage

Harmonizes operations

Depends on machine type

Example Machines

All CNC machines

All CNC machines

All CNC machines

All CNC machines

All CNC machines



Common to all MCU types

Common to all MCU types

Common to all MCU types

Common to all MCU types

Common to all MCU types

Point-to-Point (drilling), Linear (milling), Contouring (advanced milling)

Axis Movement

Not applicable

Not applicable

Not applicable

Not applicable

Not applicable

Point-to-Point (single movement), Linear (straight lines), Contouring (multiple axes)

Table on Understanding CNC Machine Control Units!

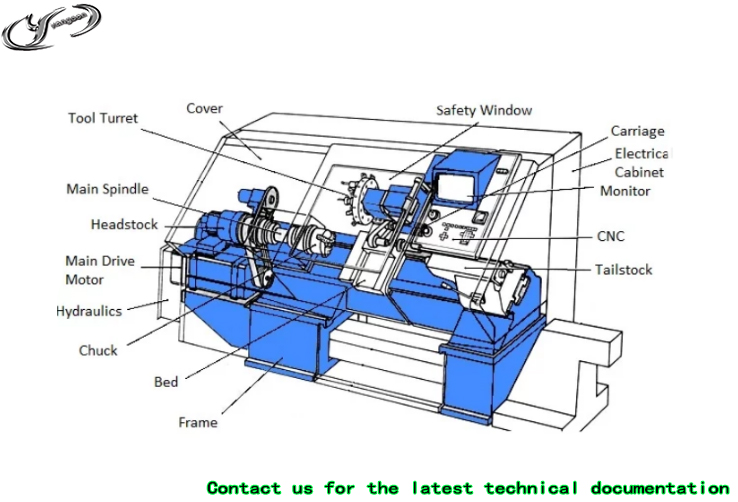

The Anatomy of CNC Machine Control Systems!

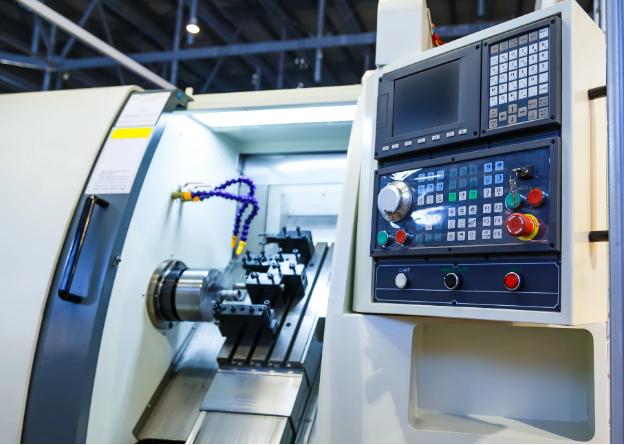

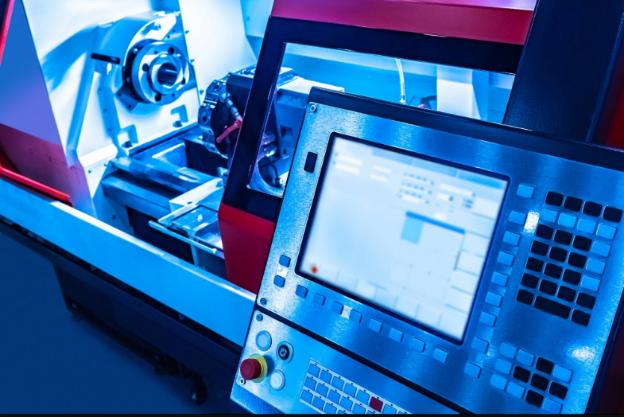

Operator Interface: This is the control panel. The operator uses it to feed instructions. The interface includes buttons, switches, and a screen for viewing operations.

Processing Unit: This unit stores and processes the instructions. It controls the speed, direction, and depth of the tool.

Servo Control Unit: This part of the CNC machine control systems controls the movement. It ensures the machine moves accurately. The servo control unit is responsible for precision in operations.

Spindle Control Unit: This unit controls the rotation of the spindle. It determines the speed of rotation based on the instructions.

Tool Selection System: This system helps in selecting the right tool for the operation. It chooses from a library of tools based on the instructions.



Basics of How CNC Machines are Controlled!

Computer Numeric Control (CNC) machines follow a set plan. This plan, a digital file, tells the machine what moves to make. Following this plan, the machine crafts the product.

A CNC machine has different parts. The interface, the drive system, and the machine tool play vital roles. Each part contributes to the machine's ability to follow the digital plan accurately.

In CNC machines, speed matters. Spindle speed refers to the speed of the cutting tool's rotation. Higher spindle speeds can improve the machine's precision.

The coordinates in a CNC machine guide the tool's movement. There are three axes, X, Y, and Z. A CNC machine can move along any of these axes.

CNC machines use motors. These motors help the machine to move along the axes. They turn the computer's digital plan into physical motion.

Software drives the CNC machine. It takes a digital file and turns it into commands for the machine. Without this software, the machine wouldn't know what to do.


Understanding CNC Programming!

Basics of CNC Programming

CNC programming plays a crucial role in the operation of CNC machines. Through specific codes, the programmer instructs the machine on what moves to make.

These codes dictate the speed, path, and depth of the cut. They also determine the tool used and the sequence of operations. Precision in CNC programming means a flawless end product.


Role of Programming in CNC Control Systems

The role of programming in CNC machines is crucial. Codes tell the machine where to move and at what speed. They make sure that the machine makes the right moves.

In CNC programming, the sequence of operations matters. The machine must do the steps in the right order. Correct sequence ensures a smooth workflow and a good product.

CNC machines use different tools. The program tells the machine which tool to use at what time. Changing tools at the right time helps avoid mistakes.

Programming also controls the depth of cut. The program will instruct how deep the tool should go. The correct depth ensures the product's dimensions are accurate.

Programming sets the spindle speed. It tells the machine how fast to rotate the cutting tool. Correct speed ensures a smooth cut and a good finish.


Common CNC Programming Languages

G-code is a common CNC programming language. It gives simple, clear commands to the machine. It is the standard language for many CNC machines.

Another popular language is M-code. M-code controls the machine's functions. It commands tool changes, spindle speed, and coolant activation.

Some CNC machines use parametric programming. This language lets the programmer set conditions. It allows for more complex commands.

A less common language is conversational programming. This language is user-friendly and intuitive. It is easy to learn, even for beginners.

Some high-end CNC machines use custom programming languages. These languages give the machine unique capabilities. They allow for more intricate products.


The Process of CNC Machine Working!

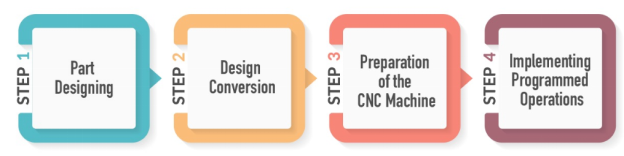

A CNC machine's process starts with a digital file. This file is a 3D model of the product. The file provides the machine with the blueprint for the operation.

Next, the file gets translated into codes. The CNC programming language turns the 3D model into a set of instructions. These instructions will guide the machine.

The machine then sets up the necessary tools. This step uses the codes to pick the right tools. The machine prepares itself for the job.

The machine starts cutting based on the codes. It moves along the axes, cutting the material. The codes determine the path, depth, and speed of the cuts.

As the machine works, coolant keeps the tool from overheating. It prolongs the tool's life and ensures a smooth cut. Coolant also clears away any chips from the workpiece.

The machine completes the job. It uses all the commands to create the product. The finished piece matches the original 3D model.


Common Types of CNC Machines and Their Control Systems!

Siemens Control Systems: Siemens offers smart and advanced control systems. These systems allow smooth interaction between operator and machine. Powerful software reads design input, enabling high accuracy and automation. Siemens' control systems make complex machining simple, proving their strength in the CNC industry.

Japan FANUC Control Systems: FANUC is globally recognized for its high-speed control systems. These systems guide the tools, making it possible to carve intricate designs effortlessly. FANUC's control systems are capable of processing minute details with ease. They promise high efficiency and precision, even with complex designs.


Factors to Consider when Choosing a CNC Machine Control System!

System Flexibility: High-flex CNC systems adapt to varied tasks. Control units with numerous axes can handle complex shapes. These systems bring precision. They cut, carve, and mill with extreme accuracy.

Software Compatibility: The control system must work with diverse software types. For instance, G-code language is a common requirement. CAD and CAM software use this language.

Ease of Use: The control system should be user-friendly. An intuitive interface speeds up tasks. A complex interface can slow production.

Power Requirements: High voltage might be necessary for a heavy-duty CNC machine. The control system should be able to handle such power levels. This ensures the smooth operation of machine components.

Durability: A sturdy control system withstands harsh manufacturing environments. Think about longevity. Durable systems provide value for money.


The Interplay between Control Systems and Machine Performance!

Control System's Influence on Precision: The control system is the brain of the machine. For high accuracy, the system should respond quickly. Precise movements lead to quality products.

Speed Regulation: The control system manages the machine speed. Proper speed control ensures efficient operations. Too slow, and production slows. Too fast and quality may suffer.

Tool Life: CNC machine control systems regulate tool wear. Proper use extends tool life. Prolonged tool life means reduced replacement costs.

System and Energy Efficiency: The control system influences energy use. Efficient systems lower the energy consumption of the machine. Reduced energy use means cost savings.

Safety Measures: Safety is integral in control systems. They should have failsafe features. Emergency stops and alerts prevent mishaps.


Tips on Maintenance and Troubleshooting of CNC Machine Control System

Regular Inspection: Always inspect the control system. Look for wear and tear. Frequent checks can prevent future malfunctions.

Cleanliness: Keep the control system clean. Dust can affect its performance. Use air blowers and soft cloths for cleaning.

Keep Software Updated: Updating the system software ensures optimal performance. Updates often come with improved features. They might fix known bugs, too.

Calibration: Regular calibration of the control system is crucial. It ensures accurate machine operation. Calibration can help avoid inaccuracies in the final product.

Seek Professional Help: Troubleshooting may require expert assistance. Professionals can identify and fix issues quickly. Their help can avoid further damage to the control system.


Enhancing CNC Machine Performance with Optimal Control Systems!

Better control systems in CNC machines mean improved performance. Think of a spindle that spins at 7,500 revolutions per minute (RPM). Moreover, the cutting feed rate is 15 inches per minute (IPM).

Through precise control systems, adjustments in feed rates and spindle speed can be made. Thus, a performance increase of 20% can be observed.

That's not a small feat. Therefore, optimal control systems are vital for effective CNC machine use.


Understanding the Role of Control Systems in CNC Machine Precision!

CNC machine control systems work like the brains of the operation. These systems control the X, Y, and Z axes movements. For instance, when drilling a hole, the control system instructs the drill bit to move down the Z-axis. Moreover, moving left or right would mean shifting along the X-axis.

With this in-depth coordination, CNC machines achieve precision in operations. Consequently, it ensures product uniformity and high quality.


Importance of Software in CNC Machine Control Systems

Software plays a vital role in CNC machine control systems. Software translates drawings into a language CNC machines can understand, known as G-code. The G-code instructs the machine on the path, speed, and depth of cut. For example, a simple line might use G01, the straight-line code.

With the right software, CNC machines can cut, drill, and carve complex patterns, enhancing their efficiency and versatility.


Understanding the Impact of CNC Machine Control Systems on Productivity

CNC machine control systems drastically improve productivity. A well-programmed CNC machine can produce parts at a high speed. For example, a complex component could be finished in 20 minutes, rather than an hour by hand. This high-speed production, coupled with minimized errors, increases productivity significantly. Thus, an efficient control system leads to less downtime and faster turnaround times.


Role of Control Systems in CNC Machine Flexibility

Control systems lend versatility to CNC machines. With precise software, the machines can handle varied jobs. One minute they might be cutting a circular pattern; the next, they're carving intricate designs. In one study, a machine using advanced control systems showed 30% more flexibility.

So, it's clear that control systems play a crucial role in enhancing CNC machine versatility.


A Look at Quality Standards in CNC Machine Control Systems

High standards of quality are paramount in CNC machine control systems. For instance, the ISO 9001:2015 standard stipulates specific quality requirements.

Control systems must be reliable, durable, and efficient. Thus, maintaining high standards ensures the machines run smoothly and produce high-quality results. Adherence to such standards establishes trust among users and promotes sustainable business growth.



An exploration of CNC machine control systems revealed their vast influence on productivity, flexibility, and performance. Remember, mastering these systems is the pathway to impeccable creations. For more wisdom, visit CNCYANGSEN, your beacon in the world of CNC machining.
