Understanding CNC Lathe Turning Process

Feb 08, 2024

CNC technologies are growing popular in the machining industry as they take manual labor to a whole another level. With features like advanced precision and repeatability, they increase the overall efficiency and productivity of the manufacturing process.

Depending on the type of turning operation and specific requirements, the machine can produce various forms and sizes. While this concept appears to be simple and easy to follow, it requires great expertise in programming the CNC system to select the right cutting tools for the operation.

In case you are wondering how modern-day CNC lathe machines work, this detailed guide answers all your questions regarding the components and operation of CNC lathe turning!


What Does CNC Lathe Turning Mean?

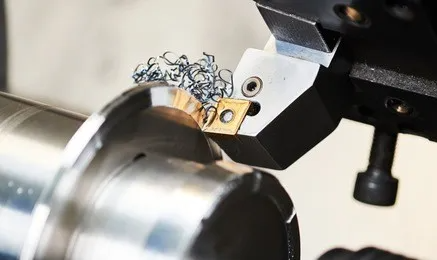

CNC lathe turning process means using advanced technology to shape a material, generally cylindrical. The machine spins the material and cuts away unnecessary parts to achieve the desired shape. Because we are using a computer-controlled machine, the end result is highly precise and automated.

To understand it better, let’s see a quick breakdown of the phrase "CNC Lathe Turning process":

● CNC: Stands for Computer Numerical Control. It means a computer controls the movements of machines to create precise and automated designs.

● Lathe: Usually, a lathe is a piece of machinery that rotates a workpiece around an axis to carry out operations like cutting, sanding, knurling, drilling, deformation, facing, and turning. Here, CNC lathe refers to a machine that rotates a workpiece (of metal or wood) against a cutting tool.

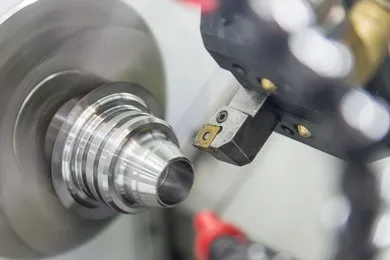

● Turning Process: The workpiece is "turned" into the desired shape by removing excess parts. In lathe turning, this is usually about creating cylindrical shapes by cutting away unwanted material.

So, when we say "CNC Lathe Turning Process," we mean using advanced technologies (computer-controlled) to spin a material and cut away unnecessary parts to give it a specific shape (cylindrical in most cases).

A Detailed Guide to CNC Lathe Turning Components

CNC lathe turning works with a number of components to cut material into cylindrical or oblong-shaped pieces.

Usually, all types of turning lathes have similar components. They are used to secure the material to be turned, select the cutting tools, and program the CNC system to guide the precise movements of the lathe during the entire machining operation.

Here is a detailed insight into those components before we explore more about how lathe turning works:

1. CNC Control Panel

Control panels in CNC lathe turning are similar to CPUs in computers. They are one of the most important parts of lathe turning, responsible for directing and overseeing the complex machining operations.

Machinists and technicians input codes and programs through the control panel, which then decodes the instructions and guides the machine to shape materials. These instructions are given using different keys on the control panel, like starting, entering codes, and finishing a project.

2. CNC Spindle

Generally, a CNC spindle is the shaft located at the center of a rotating axis inside the machine. It is one of the primary components after the control panel, responsible for holding and rotating the cutting tool.

When the machinist or technician inputs codes and programs through the control panel, the commands include instructions for the CNC spindle on the speed, direction, and depth of the cuts required.

3. CNC Headstock

A CNC lathe headstock is responsible for several things in a machine and takes different shapes according to the requirements.

First, it acts as a geared mechanism to power different lathe components. It also serves as the center hub for the rotational movement of the workpiece during machining operations.

However, the main function of a CNC lathe headstock is to secure the workpiece. The main spindle is located in the center of the headstock, which works along with the spindle to hold the workpiece. Together the mechanism creates rotational motion required for turning, drilling, and other machining processes.

Moreover, the headstock contains various sub-components, like gears, chucks, and control levers, among other machine pieces. Depending on the exact requirements of the machining activity, this mechanism can take the form of a chuck or a collet.

4. CNC Tailstock

Tailstocks are as important as headstocks in CNC lathe turning, located at the opposite end of the headstocks. The two work together to hold the workpiece during the cutting operation.

While the headstock provides rotational motion to the workpiece with the main spindle, the tailstock prevents deflection and vibration during machining.

Also, the headstock can rotate, but the tailstock is non-rotatory and only responsible for supporting the opposite end of the workpiece. Likewise, the headstock is generally not adjustable. But the tailstock is often adjustable along the lathe bed to help with different lengths of workpieces.

In simple words, both headstocks and tailstocks have unique features in a CNC lathe machine, but they work together to hold the workpiece.

To understand better, see the following comparison table between headstock vs tailstock in CNC lathe turning:



● Can rotate, is non-adjustable

● Provides rotational motion to the workpiece.

● Acts as a geared mechanism for power and rotation.

● Contains control components like levers and gears and can take the form of a chuck or collet based on requirements.

● Cannot rotate, but is adjustable

● Provides support and stability to the opposite end of the workpiece.

● Adjustable along the lathe bed for different workpiece lengths.

● Clamps and locks the workpiece in place for stability.

5. Beds

The beds are the most important component of any turning lathe because they are attached to everything else, including the headstock, chucks, tailstocks, and so on.

There are two types of bed designs for CNC lathe machines: flatbed and slant bed. The primary difference between the two is their structure. In a flatbed design, two rails run parallel to the ground plane. On the other hand, a slant bed features two rails where the ground plane intersects at angles such as 30°, 45°, 60°, and 75°.

Other than that, there are also other differences like:

● A flatbed design requires more horizontal space due to the parallel arrangement of rails, but the slant bed requires less space as the inclined design allows for a more compact footprint.

● In a flatbed design, the chip disposal is straightforward as it falls naturally away from the work area. On the other hand, the chips slide down the inclined plane helping in chip evacuation.

● Flatbeds are more rigid than slant beds due to the parallel rail design. In the case of slant beds, the inclined design can enhance rigidity and stability, especially during heavy cutting.

● Flatbeds are easier to operate and can quickly access the workpiece for setup and tool changes. For slant beds, accessing the workpiece can be challenging, but the inclined position provides better visibility during machining, which is not the case with flatbeds.

● Because of their simpler design, flatbeds are more cost-friendly than slant beds.

Usually, the flatbed is used in horizontal CNC lathe machines. In such a design, the workpiece is mounted horizontally and rotates around a horizontal axis. The cutting tools are positioned above the workpiece and are moved along the X and Z axes to perform various machining operations.

6. Chucks

Chucks hold the workpiece for machining in lathe turning. They are usually of three types:

● Hydraulic chuck is the most popular type used in CNC lathe applications. It is combined with a high-speed rotary cylinder and high rotation speed to complete tasks. It is also great in precision and has a stable clamping force, which takes it on the pricey side.

● Electrical chuck is more commonly used in domestic lathe turning. It is also precise and works with hard clamping, except that it cannot rotate. If we compare it to the hydraulic chuck, an electric chuck has lower stability, which makes it more suitable for domestic application. It is also easier to install and comes at a relatively affordable price than hydraulic chuck.

● Pneumatic chucks are the cheapest, yet they lack stability in clamping force compared to hydraulic and electrical chucks. Due to this, they are commonly used in less demanding lathe turning operations, such as in small-scale workshops where precision doesn't matter a lot.

7. Carriages

The carriage is located between the headstock and the tailstock. All the important elements like the saddle, cross slide, and apron are placed in a carriage, which acts as a guide for the cutting tool. Its primary purpose is to direct the controlled movement of the tool across the exterior of the workpiece.

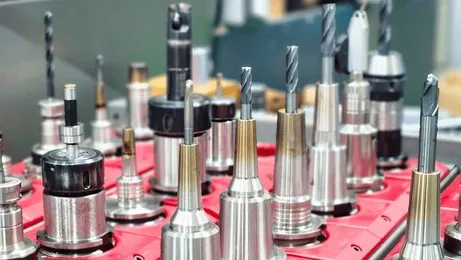

8. Cutting Tools

Cutting tools consist of different components that remove the material during turning. Depending on the severity of the work, different lathe turning machines have unique tool bits that work according to the specific requirements of the material being cut.

9. Tool Turrets

Tool turrets hold various tools on the lathe. The capacity of a tool turret to carry tools is based on its design. Some turrets can hold multiple tools while others are designed to carry specific tools. This is why it is important to carefully select the tool turrets for a lathe turning machine according to the requirements of turning operations.

10. Foot Pedals

Foot pedals provide an easy way to quickly open and close components like the tailstock or chuck. While it may seem like a simple task, it contributes a lot to the overall efficiency of the entire turning process.

Quick Summary

To sum it briefly, these are the components of CNC lathe turning along with their basic operation:



CNC Control Panel

Brain of the computer, responsible for all the machine operations

CNC Spindle

A shaft at the center of the rotating axis in the machine, responsible for holding and rotating the cutting tool.

CNC Headstock

Helps the spindle hold the workpiece and creates rotational motion required for turning, drilling, and other machining processes.

CNC Tailstock

Located at the opposite end to the headstocks, responsible for preventing deflection and vibration during machining


Everything in the CNC lathe turning is attached to beds, which can have a flat or slant design.


They are used to hold the workpiece, and come in three types: hydraulic, electric, and pneumatic.


Located between the headstock and the tailstock, it houses and guides the saddle, cross slide, and apron.

Cutting tools

Consist of different tools to remove the material during turning.

Tool turrets

They hold various tools on the lathe and have different capacities.

Foot pedals

They help quickly open and close the tailstock or chuck


Understanding CNC Lathe Turning Process

Using all the components mentioned above, the machine cuts the material into the required shape. However, not all components are used in every cutting operation, as it depends on the specific requirements of each task.

Generally, the CNC lathe turning process starts with the machinist who inputs all the instructions in the control panel, including toolpath, cutting parameters, and other specifications for the spindle. The CNC control panel activates the CNC spindle, dictating the speed and direction of the rotation.

Once that happens, the chuck in the CNC headstock securely clamps the workpiece into position, ready to be cut. The tailstock in the back is also activated, but only if needed, and is adjusted along the bed to provide additional support.

Next, the tool turret loads the required cutting tools that are needed to carry out the operation. Different tasks require different cutting tools, and they all are loaded in the turret.

The machinist again inputs instructions in the control panel to set the toolpath and adjusts cutting parameters such as depth of cut, feed rate, and tool engagement. The carriage then guides the cutting tool as it moves across the workpiece to cut it to the desired shape. Throughout the turning process, the CNC system monitors the operation, making real-time adjustments as needed.

Final Words

To sum up, CNC lathe turning is the process of cutting materials like metal, plastic, and wood into a cylindrical shape. There are different types of CNC lathe machines, each catered for a particular job. But usually, all machines work with components like a control panel, spindles, headstock, tailstock, beds, chucks and carriages, tool turrets and cutting tools, and foot pedals. Together all these components follow the commands input by a machinist to rotate the workpiece and cut the unwanted parts to achieve the required shape.
