Comprehensive Guide to Grooving Tools for Lathes

Sep 20, 2023

Precision is the heartbeat of manufacturing. In the world of lathe operations, achieving the highest level of accuracy and consistency is a never-ending pursuit. At the core of this precision lie the unsung heroes of machining – grooving tools. Whether you're parting, threading, or performing cutoff operations, the right grooving tool can make all the difference. Let us explore the various types, materials, and manufacturing processes behind these tools. We'll decipher the crucial tool geometry parameters and discuss the art of selecting the perfect tool holder. Additionally, we'll cover setup, alignment, cutting techniques, and the vital role of coolant and lubrication.

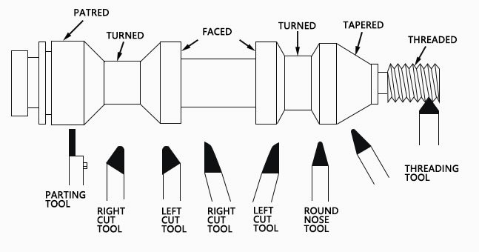

Types of Grooving Tools:

Fundamental Types

Let's start by establishing a fundamental understanding of the types of grooving tools and their applications. Grooving tools come in various shapes and sizes, each tailored to specific machining needs.

Parting Tools:

Designed for creating deep, straight-line cuts, parting tools excel at separating workpieces into distinct parts. They are indispensable for tasks like creating grooves, shoulders, and parting off materials, ensuring clean and accurate cuts.

Threading Tools:

Threading tools are threading maestros. They specialize in crafting threads on cylindrical surfaces, whether external threads on bolts or internal threads in nuts. With various designs to accommodate different thread profiles and pitches, they guarantee the production of high-quality threads.


Cutoff Tools:

When precision and clean finishes matter, cutoff tools shine. They are essential for making accurate cuts across workpieces, facilitating material separation, or providing those finishing touches on component edges.

Types of Grooving Tools


Key Characteristics

Parting Tools

Create deep, straight-line cuts for separating workpieces into distinct parts, grooves, shoulders, and parting off materials.

Excellent for clean and accurate cuts. Available in a variety of shapes and sizes to accommodate different applications.

Threading Tools

Craft threads on cylindrical surfaces, including external threads on bolts or internal threads in nuts.

Available in various designs for different thread profiles and pitches, ensuring high-quality threads. Can be manually operated or used with s.

Cutoff Tools

Make precise cuts across workpieces, facilitating material separation or providing finishing touches on component edges.

Ideal for maintaining precision and achieving smooth finishes. Available in a variety of shapes and sizes to accommodate different applications.


Materials and Manufacturing:

The Building Blocks

Grooving tools are only as good as the materials from which they are crafted. Manufacturers typically use high-speed steel (HSS) and carbide as the primary materials for grooving tools. Each material offers distinct advantages:

•High-Speed Steel (HSS): Renowned for its durability and ability to handle high temperatures, HSS is a versatile choice for grooving tools. It excels in general-purpose applications and can be sharpened to extend its lifespan.

•Carbide: Carbide tools are the go-to choice for demanding machining tasks. Known for their hardness and wear resistance, they maintain sharpness for extended periods, making them ideal for high-precision work.

The manufacturing process of grooving tools is a precise art. Grinding and sharpening are integral steps in creating tools that deliver consistent, high-quality performance. Computer Numerical Control (CNC) grinding machines ensure that the tools meet exact specifications. The choice of material for your grooving tool should align with your specific machining requirements. For tough materials like stainless steel or hardened alloys, carbide tools shine. For less demanding tasks, HSS may suffice. Remember, the right material is a cornerstone of precision.

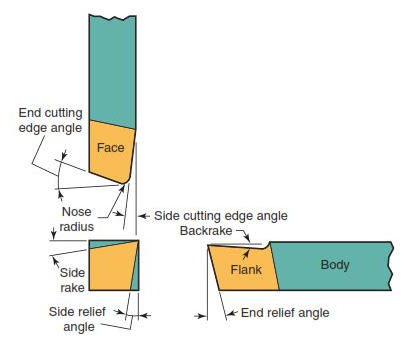

Grooving Tool Geometry

Understanding tool geometry is like solving a puzzle where each angle and curve plays a crucial role. Key parameters include rake angle, relief angle, and cutting-edge angle. These angles influence how the tool interacts with the workpiece.

Rake Angle

The rake angle determines the angle at which the tool contacts the workpiece. A positive rake angle reduces cutting forces but may lead to tool wear. Conversely, a negative rake angle increases cutting forces but enhances tool life.

Relief Angle

The relief angle is crucial for chip evacuation and preventing tool damage. A proper relief angle ensures that the tool doesn't rub against the workpiece, reducing heat and friction.

Cutting Edge Angle

The cutting edge angle affects the tool's ability to shear material effectively. It's especially important for threading and grooving tools. A smaller cutting edge angle results in finer finishes, while a larger angle may be necessary for heavy-duty cuts.


Customizing Geometry

Adjusting these parameters can fine-tune tool performance for specific applications. Manufacturers often provide detailed specifications for their tools, helping machinists select the optimal geometry for their needs.

Tool Geometry


Rake angle

The angle between the cutting edge and the workpiece surface. A positive rake angle reduces cutting forces but may lead to tool wear.

Relief angle

The angle between the face of the tool and the workpiece surface. It is crucial for chip evacuation and preventing tool damage.

Cutting edge angle

The angle between the cutting edge and the face of the tool. It affects the tool's ability to shear material effectively. It's especially important for threading and grooving tools.


Tool Holder Selection

Selecting the appropriate tool holder for your grooving tool is a foundational step in achieving precision in lathe operations. Different types of tool holders are available, each designed to serve specific purposes. Here, we explore the importance of this choice:

•Boring Bars: Ideal for internal machining tasks, boring bars provide stability and precision when creating holes and cavities.

•Quick-Change Tool Holders: These holders offer efficiency and ease of tool replacement, reducing downtime and enhancing productivity.



When choosing a tool holder, several factors come into play:

· Workpiece Material: Consider the material you're working with. Some tool holders excel in particular materials, ensuring optimal results.

· Tool Size: Ensure that the holder accommodates the size of your grooving tool, providing a secure fit.

· Machining Operation: The type of operation you're performing, whether it's threading, parting, or cutoff, will influence the choice of tool holder.

· Tool Reach: The tool holder's reach should match the depth of cut required for your application.

Selecting the right tool holder enhances tool stability and reduces the risk of chatter or tool deflection, ultimately contributing to precision machining.


Tool Setup and Alignment | The Crucial Setup Phase

Before you embark on the machining journey, the setup and alignment of your grooving tool deserve meticulous attention. Precision begins here, and any inaccuracies can lead to subpar results. Here's a step-by-step guide to ensure a flawless setup:

1) Securing the Workpiece: Properly clamp the workpiece to the lathe's spindle or chuck to prevent unwanted movement during machining.

2) Selecting the Right Tool Holder: As discussed earlier, choose the appropriate tool holder for your grooving tool, ensuring a secure fit.

3) Setting Tool Height: Adjust the tool height to the centerline of the workpiece. Precision here is paramount, as it directly impacts the depth of cut and the quality of your machined surface.

4) Alignment Is Key: Ensure that the grooving tool is aligned parallel to the workpiece's axis. Misalignment can lead to irregular cuts and compromised precision.

5) Tool Positioning: Position the grooving tool at the desired starting point for your machining operation, ensuring it's clear of any obstructions.

6) Checking for Runout: Use a dial indicator to verify that the tool is free of runout (wobbling). Any runout should be corrected to maintain precision.

Taking the time to meticulously set up and align your grooving tool is an investment in precision. In the upcoming sections, we'll explore various cutting techniques and delve into the crucial role of coolant and lubrication in ensuring optimal performance.


Cutting Techniques

Understanding the nuances of cutting techniques is essential for achieving precision with grooving tools. Whether you're parting, threading, or performing cutoff operations, the following steps can help you master the art of machining:

· Choosing the Right Speed and Feed Rates: The rotational speed (RPM) and the rate at which the tool advances (feed rate) are critical. They depend on factors like the workpiece material, tool type, and depth of cut. Properly balanced speeds and feeds ensure efficient chip removal and reduce tool wear.

· Depth of Cut: Control the depth of cut carefully. It determines how much material you remove with each pass. For precision work, take shallower cuts to maintain accuracy and surface finish.

· Tool Approach Angle: The angle at which the tool approaches the workpiece affects chip formation and tool life. Understanding how to optimize this angle is key to successful machining.

· Chip Management: Effective chip management is crucial to prevent chip buildup, which can mar the quality of your cuts. Consider using chip breakers or chip evacuation strategies when necessary.

· Consistency is King: Maintain consistent feed rates and cutting speeds throughout the operation to avoid variations in the workpiece.


Coolant and Lubrication

Coolant and lubrication play a pivotal role in grooving tool applications, especially during extended machining sessions. Their primary functions are:

1. Heat Control: Coolant dissipates the heat generated during cutting, preventing tool overheating and workpiece distortion.

2. Chip Evacuation: It helps flush away chips, keeping the cutting area clean and preventing chip re-cutting.

3. Tool Lubrication: Lubrication minimizes friction between the tool and workpiece, extending tool life and ensuring smoother cutting.


Types of Coolants

Various coolants are available, including water-soluble oils, synthetic fluids, and emulsions. The choice depends on factors such as material being machined and environmental considerations.

Proper Application

Ensure the coolant is directed precisely to the cutting area. Insufficient coolant flow can lead to overheating, while excessive flow may dilute the coolant's effectiveness.

Maintenance Matters

Regularly check coolant levels, quality, and the condition of coolant filters to maintain optimal performance.


Safety Considerations in Lathe Operations:

In the world of machining, safety is paramount. When working with grooving tools and lathes, adherence to safety measures is non-negotiable. Here's what you need to know:

· Personal Protective Equipment (PPE): Always wear the appropriate PPE, including safety glasses, hearing protection, gloves, and a dust mask, if necessary.

· Machine Safety: Familiarize yourself with the lathe's safety features and emergency shutdown procedures. Never override safety interlocks or bypass guards.

· Tool Inspection: Regularly inspect grooving tools for signs of wear or damage. Replace worn-out tools promptly.

· Secure Workpieces: Ensure workpieces are securely clamped to prevent unexpected movement during machining.

· Chip Handling: Handle chips and scrap materials with care. They can be sharp and hot.

· Training: Adequate training in lathe operation and tool handling is essential. Never operate machinery without proper training.


Advanced Topics

While mastering the fundamentals is essential, delving into advanced topics can take your machining skills to the next level. Here's a glimpse of what lies beyond the basics:

 Multi-Pass Grooving: Learn the art of multi-pass grooving to achieve intricate designs and shapes with precision.

 Interrupted Cuts: Master the technique of interrupted cuts, which are often encountered in real-world machining scenarios.

 CNC Lathe Programming: Explore the world of CNC (Computer Numerical Control) lathe programming. Automation can enhance efficiency and consistency in machining.

 Tool Coatings: Dive into the benefits of specialized tool coatings that improve tool life and performance.


Improving Grooving

Enhancing your grooving operations requires a commitment to continuous improvement. Here are some key strategies to elevate your grooving skills:

•Tool Selection: Invest in high-quality grooving tools tailored to your specific applications. Consider advanced coatings for improved tool life.

•Precision Setup: Pay meticulous attention to tool setup, alignment, and toolpath optimization to achieve consistent and accurate results.

•Advanced Techniques: Master advanced techniques such as multi-pass grooving and interrupted cuts to expand your machining capabilities.

•Coolant Optimization: Optimize coolant and lubrication systems to control heat, improve chip evacuation, and extend tool life.

•Training and Education: Stay up-to-date with the latest advancements in lathe operations through training and education. Knowledge is your most valuable tool.

By implementing these strategies, you'll not only enhance the quality and precision of your grooving but also unlock new possibilities for complex machining tasks.



In the world of lathe operations, precision is not just a goal; it's a requirement. Grooving tools, often overlooked but indispensable, are the unsung heroes behind precision machining. This comprehensive guide has delved deep into their world, covering types, materials, manufacturing, tool geometry, setup, alignment, cutting techniques, coolant, troubleshooting, safety, advanced topics, case studies, and future trends.

Armed with this knowledge, you're well-equipped to master precision in lathe operations. Whether you're crafting components for aerospace, automotive, medical devices, or any other industry, the choice and application of grooving tools are pivotal. With each cut, you'll be shaping a world of precision.

Remember, precision is not just a result; it's a journey. It's about attention to detail, continuous learning, and a commitment to excellence. As you embark on your own machining journey, may each grooving tool in your arsenal become a tool of precision, shaping the future with accuracy and finesse.
