Exploring the Drilling and Tapping Process in CNC Machining

Nov 21, 2023


 In manufacturing, creating holes and threads is a fundamental process that serves as the backbone for many industries, from aerospace and automotive to construction and electronics. Drilling and tapping are two essential techniques used to achieve this, enabling the fastening of components, assembly of structures, and creation of intricate designs. This comprehensive article will delve into the drilling and tapping processes, their applications, various techniques, and the tools and equipment involved.


Understanding CNC Machining

CNC machining, or Computer Numerical Control machining, is a modern manufacturing technique that relies on computerized commands to operate tools and 3D printers. It ensures precision, consistency, and efficiency in cutting, drilling, and shaping materials.

This process is widely used across industries, guaranteeing the creation of intricate components with minimal human error. CNC machining is essential for producing high-quality parts, from aerospace components to automotive parts, revolutionizing manufacturing through its computer-driven precision and automation.

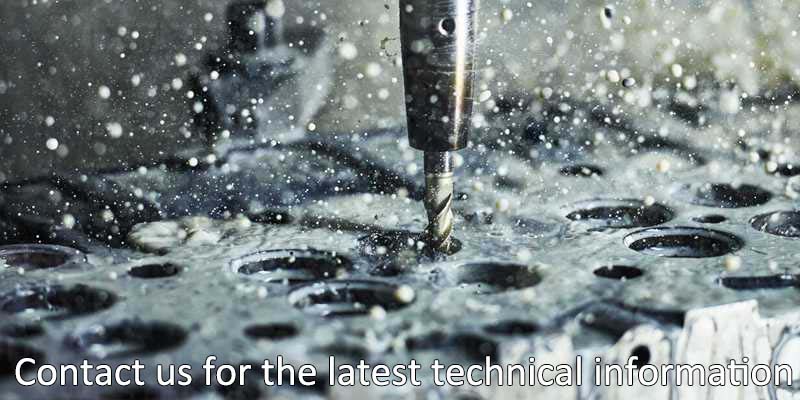

The Drilling Process

Drilling is a machining operation involving removing material to create a hole in a workpiece. The resulting hole can serve various purposes, from accommodating fasteners like bolts and screws to routing wiring and plumbing. Let's explore the drilling process in depth:

Types of Drilling Machines

● Bench Drills

● Pillar Drills

● Radial Drills

● CNC Drilling Machines

Drill Bits

● Types of Drill Bits (Twist, Brad, Forstner, Spade, etc.)

● Materials (HSS, Carbide, Cobalt, Diamond)

● Geometry (Point angle, Lip angle)

Drilling Techniques

● Center drilling

● Peck drilling

● Reaming and countersinking

● Step drilling

Safety Considerations

● Personal protective equipment

● Proper machine setup and maintenance

● Chip and coolant management


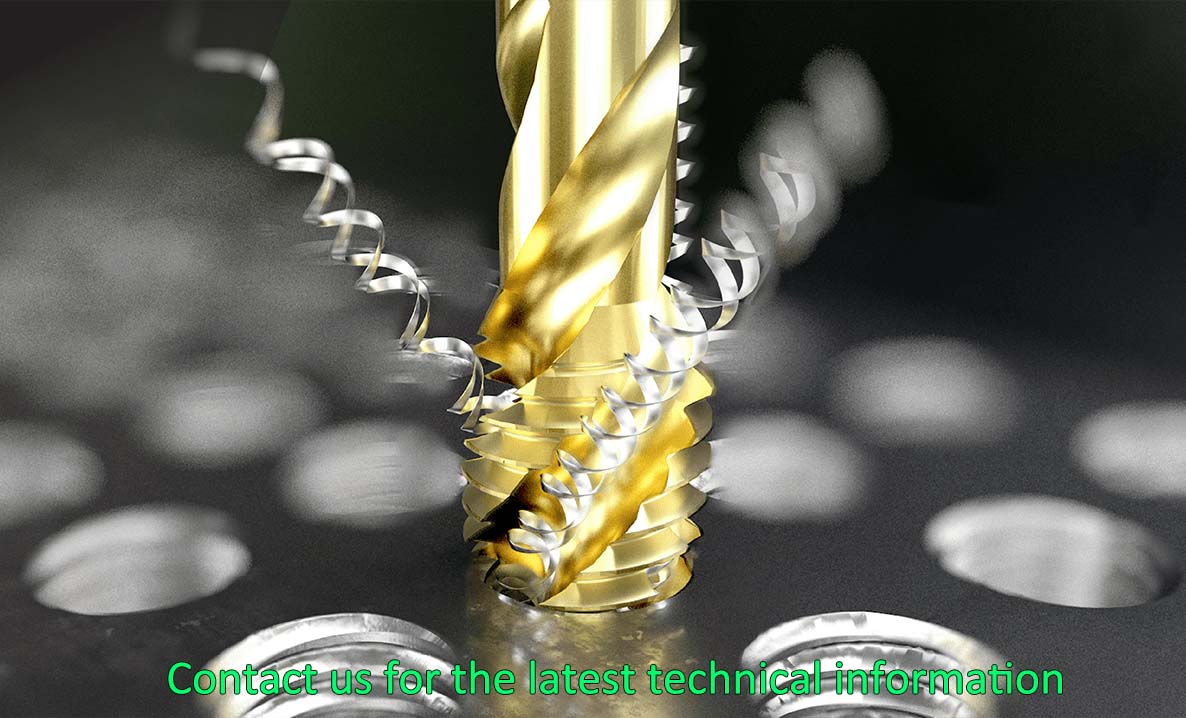

The Tapping Process

Tapping is the process of threading the interior of a hole, enabling it to receive a threaded fastener such as a bolt or screw. This is an essential step in assembly and manufacturing processes, as threads ensure secure and tight connections. Let's delve into the tapping process:

Types of Taps

● Hand Taps

● Machine Taps

● Spiral Flute Taps

● Spiral Point Taps

Tap Materials and Coatings

● High-Speed Steel (HSS)

● Carbide

● Titanium Nitride (TiN) Coating

● Polycrystalline Diamond (PCD)

Tapping Techniques

● Manual and power tapping

● Tapping speed and feed rates

● Lubrication and coolant use

● Depth control and alignment

Common Thread Standards

● Unified Thread Standard (UTS)

● Metric Thread Standard

● National Pipe Thread (NPT)

● Acme Threads


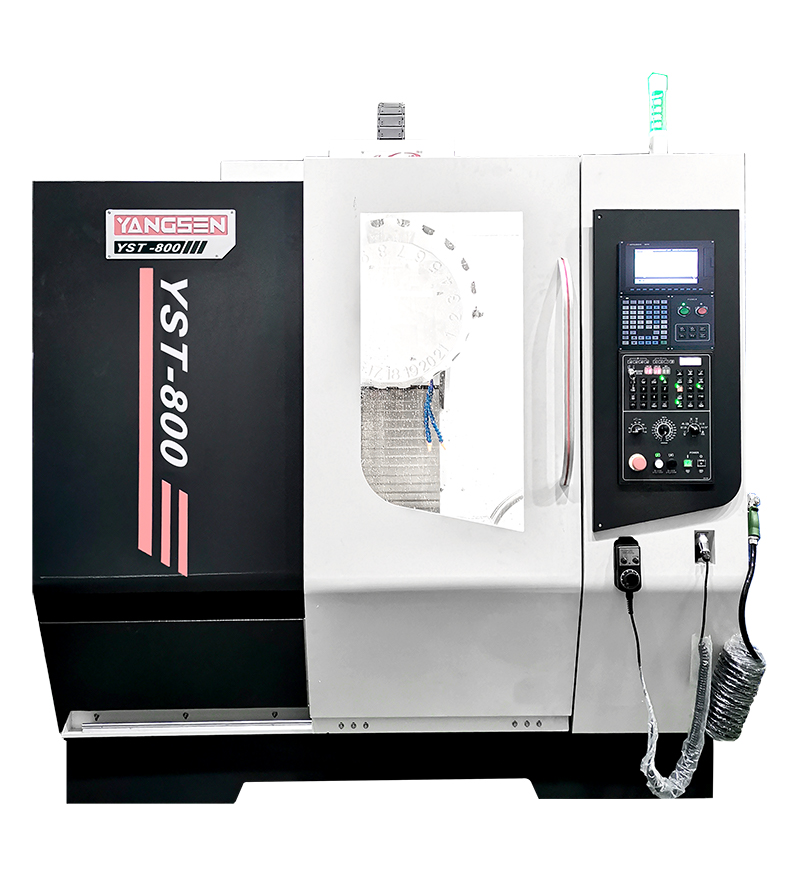

Advantages of Using CNC Drilling and Tapping Machine

CNC drilling and tapping machines represent a significant advancement in manufacturing technology, offering a wide array of advantages over traditional manual drilling and tapping methods.

These CNC machines seamlessly integrate the precision and efficiency of computer numerical control (CNC) technology with the flexibility required for drilling and tapping operations. Let's delve deeper into the key advantages of utilizing CNC drilling and tapping machines:

1. Precision and Accuracy

CNC drilling and tapping machines are renowned for their unparalleled precision and accuracy. By harnessing computer-controlled automation, they ensure that hole drilling and tapping operations are consistently executed with minimal error.

This level of precision is especially crucial in industries where exacting tolerances are non-negotiable, such as aerospace, automotive, and electronics. CNC technology guarantees that every hole and thread is executed with pinpoint accuracy.

2. Increased Efficiency

CNC drilling and tapping machines are efficiency powerhouses. They excel at streamlining the entire drilling and tapping process. These machines can perform multiple operations in a single setup, drastically reducing the need for manual repositioning and tool changes. This automation leads to shorter cycle times, increased production efficiency, and enhanced productivity.

3. Versatility

The versatility of CNC drilling and tapping machines is a remarkable feature. They can handle diverse workpieces, materials, and hole sizes. These machines can accommodate various drill bit and tap sizes, allowing for the creation of holes with varying diameters and thread specifications.

This adaptability makes CNC tapping machines suitable for an extensive array of industries and applications, from heavy metal machining to intricate electronics assembly.

4. Reduced Labor Costs

The automation inherent in CNC drilling and tapping machines translates to significant labor cost savings. Once the CNC program is set up, the machine operates autonomously with minimal human intervention. This reduces labor costs and frees operators to focus on other critical tasks, maximizing overall efficiency.

5. Flexibility in Hole Patterns

CNC drilling and tapping machines offer exceptional flexibility when it comes to creating hole patterns. They can effortlessly generate holes with precise spacing, angles, and patterns.

This includes the ability to create holes on irregular or curved surfaces. This flexibility is invaluable in woodworking, metal fabrication, and PCB manufacturing, where complex hole patterns are common.

6. Improved Safety

Operator safety is a top priority in CNC drilling and tapping machines. These CNC tapping machines have various safety features, including automatic tool changers, emergency stop buttons, and protective enclosures.

The reduction in manual tool handling not only enhances operational efficiency but also minimizes the risk of accidents and injuries, making the work environment safer for operators.


Applications of Drilling and Tapping

These processes have a wide range of applications across various industries:

Automotive Industry

● Engine components: Drilling and tapping are used to create threads for bolts and studs in engine blocks and cylinder heads.

● Chassis assembly: These processes are employed in chassis fabrication, ensuring precise alignment of structural components.

● Suspension systems: Bolts and joints in suspension systems require accurate threads for optimal performance and safety.

Aerospace Industry

● Aircraft frames and components: Precision drilling and tapping are vital for the assembly of aircraft structures, ensuring the integrity of the aircraft.

● Rocket propulsion systems: In the aerospace sector, drilling and tapping are used to create secure connections in rocket propulsion systems.

● Avionics: The assembly of avionics systems involves intricate components that rely on precision threading.

Construction and Architecture

● Structural steel fabrication: Drilling and tapping ensure the secure connection of steel beams, enhancing the structural integrity of buildings.

● Plumbing and HVAC systems: These processes are used in the installation of plumbing and HVAC systems to create watertight and airtight connections.

● Curtain wall installation: Drilling and tapping are crucial in attaching curtain wall components to the building's framework, providing structural support.

Electronics and IT

● PCB manufacturing: In electronics, these processes help create secure connections for components on printed circuit boards.

● Server rack assembly: Drilling and tapping are used to assemble server racks and cabinets, ensuring the secure placement of equipment.

● Consumer electronics: Small, intricate components in devices like smartphones and laptops often require threaded connections for assembly.

Oil and Gas Sector

● Pipeline construction: Drilling and tapping are essential in connecting pipeline sections, ensuring leak-free and robust connections.

● Drilling equipment: The construction and maintenance of drilling equipment rely on threaded connections for various components.

● Valve and fitting production: Precision threading in valve and fitting production ensures the reliable flow control of fluids and gases in the industry.

Medical Device Manufacturing

● Orthopedic implants: The assembly of orthopedic implants, like prosthetic joints, requires precise threads for a secure fit and stability.

● Surgical instruments: Many surgical instruments, such as screw-based devices, depend on accurate threads for their functionality.

● Prosthetics: Prosthetic limbs and components use drilling and tapping for secure and adjustable connections.

In all these applications, drilling and tapping are critical for creating secure and reliable threaded connections, contributing to the quality and functionality of products across diverse industries.


Tools and Equipment

The tools and equipment used for drilling and tapping processes are essential for achieving precision and efficiency in various industries. These processes necessitate specialized tools designed for specific materials and applications.

For drilling, commonly used tools include twist drills, center drills, reamers, and countersinks. Twist drills, with various geometries and coatings, are versatile for creating holes in materials such as metal, wood, or plastic. Center drills are crucial for creating starting points for accurate drilling. Reamers refine and smooth drilled holes, ensuring the desired finish, while countersinks create beveled openings.

In tapping, tap and die sets are primary tools. Taps have different designs for threading into materials like metal or plastic, while dies are used for external threading. These tools come in various sizes to accommodate different fastener requirements.

Modern CNC machining often integrates automated tool changes and controls, enhancing precision and reducing human error. The choice of tools and equipment depends on the material, thread size, and specific requirements, ensuring that each hole and thread is created with the utmost accuracy.

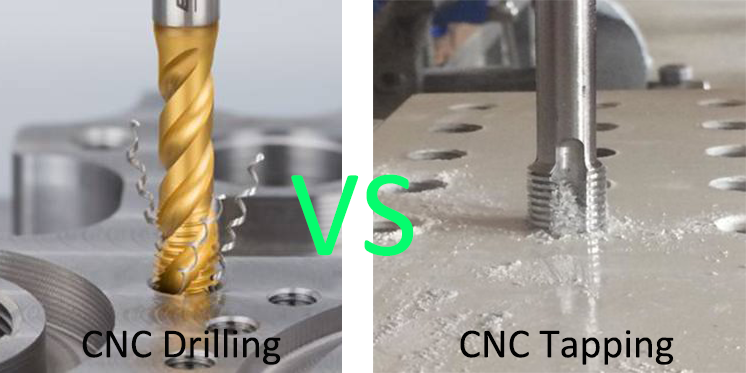

Difference Between CNC Drilling and Tapping Machine



Here's a tabular comparison highlighting the key differences between CNC drilling machines and CNC tapping machines:


CNC Drilling Machine

CNC Tapping Machine

Primary Function

To create holes in a workpiece.

To create threaded holes in a workpiece.


Uses drill bits for hole creation.

It uses taps for threading operations.


Performs drilling operations only.

Performs tapping operations to create threads.

Workpiece Material

Suitable for drilling holes in various materials.

Primarily used for threading in metal workpieces.


Can accommodate a wide range of drill bit sizes.

Typically used with a specific tap size for threading.

Tolerance and Precision

Ensures precise hole diameter and depth.

Provides precise thread depth and pitch.


Used in various industries for hole creation.

Common in industries requiring threaded connections.


May offer limited automation for hole drilling.

Offers automated threading operations.

Tool Change

Less frequent tool changes as drilling bits remain in use.

Frequent tool changes for different tap sizes and thread types.

Setup Complexity

Setup involves workpiece positioning and tool selection.

Setup involves workpiece positioning and specifying threading parameters.

Safety Features

Safety features are more focused on drilling operations.

Safety features include measures for tap engagement and disengagement.

Cycle Time

Generally shorter cycle times for drilling operations.

Thread tapping may take longer due to thread pitch.

Use in Manufacturing

Used for creating holes and cavities in components.

Essential for creating threaded connections in assemblies.

Examples of Industries

Automotive, aerospace, woodworking, and general machining.

Automotive, metalworking, machinery manufacturing.

While both CNC drilling and tapping machines are essential in CNC machining, they serve distinct purposes, and the choice between them depends on the specific requirements of a given application. Drilling machines are used for creating holes, whereas tapping machines are used for adding threads to holes to accommodate fasteners and connectors.


Troubleshooting and Maintenance

Drilling and tapping processes, essential in many industries, can encounter challenges impacting productivity and the final product's quality. Here's an in-depth look at how to troubleshoot common issues and maintain equipment effectively:

Common Drilling Issues:

● Chip Evacuation Problems: Poor chip removal can lead to tool damage and imprecise holes. Ensure proper coolant flow and clear chips regularly to avoid clogs.

● Drill Bit Breakage: This issue can result from excessive feed rates or dull bits. Adjust feed rates and replace worn bits to prevent breakage.

● Workpiece Distortion: Material may warp during drilling due to heat. Use lubricants and coolant to manage temperature, or consider pre-stress relief methods for sensitive materials.

● Hole Size Inaccuracies: Inaccurate hole sizes may stem from incorrect tool selection or machine settings. Ensure the correct tool and feed rate are used, and maintain machine accuracy through regular calibration.

Common Tapping Issues:

● Broken Taps: Taps may break due to excessive force or misalignment. Ensure proper alignment and consider using a suitable lubricant to reduce friction.

● Tapping Misalignment: Misalignment results in uneven threads. Double-check the starting hole's alignment and maintain a perpendicular tap angle.

● Poor Thread Quality: Thread quality issues can be attributed to worn or dull taps. Regularly replace taps and employ proper lubrication to enhance thread quality.

● Tap Wear and Dullness: Worn taps are prone to breakage and poor performance. Replace dull taps promptly and ensure proper lubrication to extend tool life.

Machine Maintenance:

● Cleaning and Lubrication: Regularly clean and lubricate the machine components to prevent corrosion and reduce friction, ensuring smooth operation.

● Inspection and Replacement of Worn Parts: Periodically inspect all parts for wear and damage, replacing any components showing signs of deterioration.

● Calibration and Alignment Checks: Regularly calibrate the machine for accuracy, including ensuring proper alignment of tooling and workpieces.

Effective troubleshooting and equipment maintenance are essential for preventing common issues and ensuring the longevity and reliability of drilling and tapping processes, ultimately resulting in higher product quality and increased productivity.




In conclusion, CNC drilling and tapping machines have revolutionized the manufacturing landscape, offering precise, efficient, and versatile solutions for hole creation and threading. CNC drilling machines excel in creating holes with accuracy and repeatability, catering to a wide range of materials and applications. On the other hand, CNC tapping machines provide the crucial ability to add threads, facilitating secure fastening in industries like automotive and metalworking. These machines reduce labor costs, enhance safety, and contribute to increased productivity. Whether it's creating cavities or threaded connections, CNC drilling and tapping machines stand as indispensable tools, driving innovation and reliability in modern manufacturing processes.
