CNC Machine Problems and Solutions

Aug 22, 2023

In the realm of modern manufacturing, Computer Numerical Control (CNC) machines stand as a testament to technological advancement, bridging the gap between human skill and automated precision. These machines have revolutionized industries, offering unparalleled accuracy, repeatability, and efficiency in producing complex parts and intricate designs. However, like any sophisticated piece of equipment, CNC machines are not without their challenges.

From mechanical wear and tear to software glitches, operators and technicians often encounter a range of issues that can impede production and compromise quality. Addressing these problems promptly and effectively is crucial to maintaining the optimal performance of the machine and ensuring the desired output. This discourse delves into the common problems faced by CNC machine users and offers pragmatic solutions, serving as a comprehensive guide for those seeking to maximize the potential of their CNC equipment.

Whether you are a seasoned technician or a novice operator, understanding these challenges and their remedies can significantly enhance your troubleshooting skills and operational efficiency.

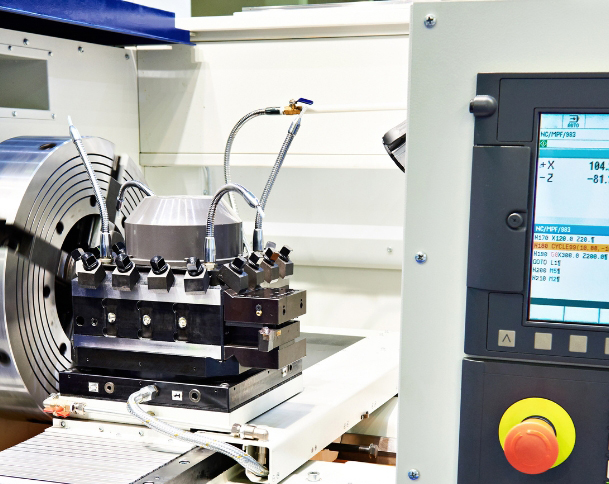

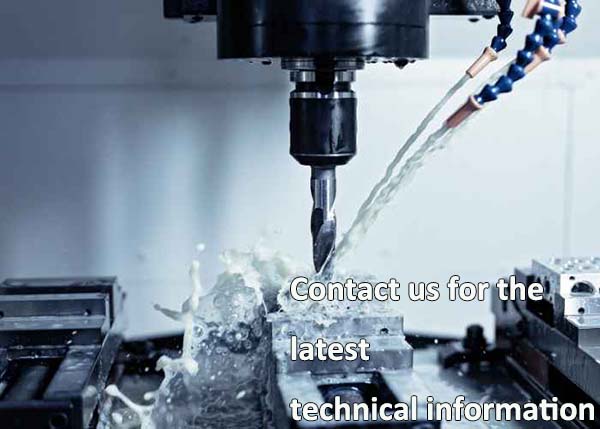

Working of CNC Machines

Here's a basic overview of how CNC machines work:

1. Design Creation: The process begins with a CAD (Computer-Aided Design) drawing created by an engineer or designer. This design is a digital representation of the part or component that needs to be manufactured.

2. Conversion to CNC Program: The CAD drawing is then converted into a CNC program, which is essentially a list of precise movements and commands. This conversion is done using CAM (Computer-Aided Manufacturing) software. The resulting program is written in G-code, which is a specialized programming language understood by CNC machines.

3. Machine Setup: Before the CNC machine starts its operation, the correct tools need to be set up in the machine. This might include drills, lathes, or other cutting tools. The raw material, which the part will be made from (like a block of metal), is also secured in the CNC machine.

4. Execution of the Program: Once everything is set up, the CNC program is loaded into the CNC machine. The machine then executes the program, making the tool work on the raw material. The tool moves according to the G-code instructions, cutting, shaping, or drilling the material as required.

5. Monitoring: While the CNC machine is running, it's essential to monitor its progress. Modern CNC machines often come with built-in monitoring systems that can detect any anomalies or errors that might occur during the machining process.

6. Post-Processing: After the machine has completed its task, there might be some post-processing required, like cleaning, deburring, or additional finishing processes.

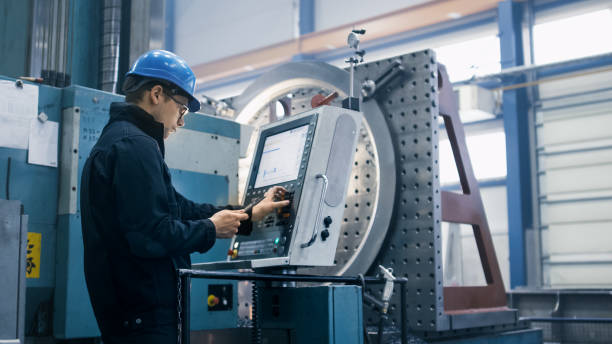

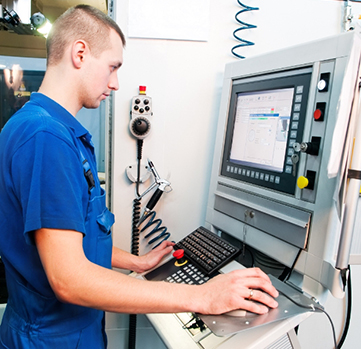

How to Fix the CNC Machine Problem

Fixing a CNC (Computer Numerical Control) machine problem requires a systematic approach. Here's a general troubleshooting guide to help you identify and resolve common CNC machine issues:

1. Safety First:

· Always turn off the machine before inspecting it.

· Wear appropriate safety gear, such as safety glasses and gloves.

· Keep the area around the machine clean and free of obstacles.


2. Identify the Problem:

· Check for any error messages on the CNC machine's control panel.

· Listen for unusual noises or vibrations.

· Observe the machine's movement and tool performance.


3. Check Power and Connections:

· Ensure the machine is properly plugged in and the power source is stable.

· Check all cables and connections for any signs of damage or loose connections.


4. Inspect the Tooling:

· Check the tool for wear or damage.

· Ensure the tool is properly secured in the spindle.

· Replace worn or damaged tools as needed.


5. Lubrication:

· Ensure all moving parts are well-lubricated.

· Check the machine's manual for recommended lubrication points and intervals.

contact us

6. Calibration:

· Calibrate the machine regularly to ensure accuracy.

· Check the alignment of the spindle and table.

· Use a dial indicator to check for any misalignments.


7. Software and Programming:

· Ensure the program code is error-free.

· Update the machine's software if updates are available.

· Check for compatibility issues between the software and hardware.


8. Inspect Mechanical Components:

· Check for wear or damage on belts, gears, and bearings.

· Ensure all bolts and screws are tightened.

· Inspect the rails and slides for any obstructions or debris.


9. Coolant System:

· Check the coolant level and refill if necessary.

· Ensure the coolant is flowing properly and not clogged.

· Clean the coolant tank and replace the coolant if it's dirty.


10. Electrical Components:

· Inspect fuses, switches, and circuit breakers for any signs of damage.

· Use a multimeter to check for electrical continuity.


10 Common Problems in CNC Machines and How to Fix Them

CNC (Computer Numerical Control) machines are widely used in manufacturing for their precision and repeatability. However, like all machinery, they can encounter problems. Here are 10 common issues with CNC machines and how to address them:

1. Machine Doesn't Start or Respond:

When a CNC machine fails to start or respond, the root cause can often be traced back to power issues, control panel malfunctions, or software glitches. Begin by checking the power source, ensuring that the machine is properly connected and that there are no interruptions in the power supply. Examine circuit breakers and fuses for any signs of damage or tripping. If the power source is intact, inspect the control panel for any visible damages or loose connections. Sometimes, simply restarting the machine can resolve minor software hiccups. If the machine still doesn't respond, consider consulting the user manual or reaching out to the manufacturer for further guidance.


2. Inaccurate Tool Positioning:

Inaccurate tool positioning can compromise the precision and quality of CNC machining. This issue can arise from worn-out tools, misaligned fixtures, or calibration errors. Regularly inspect tools for wear and replace them as necessary. Ensure that fixtures are properly aligned and secured. Periodic calibration of the machine is essential to maintain accuracy. Using a dial indicator or probe can help in verifying the machine's positioning accuracy. If discrepancies persist, professional recalibration or servicing might be required.


3. Poor Surface Finish:

A poor surface finish can be attributed to various factors including incorrect feed rates, dull tools, or machine vibrations. To address this, first, ensure that the tool is sharp and free from damage. Adjust the feed rate and spindle speed according to the material being machined. Check for any loose components or fixtures that might cause vibrations during operations. Additionally, the choice of coolant and its application can influence the surface finish. Ensure that the coolant is appropriate for the material and is being applied effectively.


4. Overheating:

Overheating in CNC machines can lead to reduced efficiency and potential damage. Common causes include inadequate cooling systems, excessive friction, or prolonged machine operations. Ensure that the coolant system is functioning properly and that there's no blockage in the coolant channels. Regularly clean and maintain moving parts to reduce friction. If the machine continues to overheat, consider giving it periodic breaks during long operations or consulting a technician for a thorough inspection.


5. Unusual Noises:

Unusual noises in a CNC machine can indicate mechanical issues, misalignments, or worn-out parts. Begin by identifying the source of the noise. Check for any loose or damaged components. Ensure that all moving parts are well-lubricated to reduce friction-related noises. If the noise persists, it might be indicative of deeper mechanical issues requiring professional intervention.


6. Software or Programming Errors:

Software or programming errors can disrupt CNC operations. Always ensure that the software is updated to the latest version. Double-check the program for any coding mistakes or inconsistencies. If errors persist, consider reinstalling the software or consulting with the software provider for troubleshooting. Regular backups of essential programs can prevent data loss and reduce downtime.


7. Electrical Issues:

Electrical issues in CNC machines can manifest as intermittent power losses, erratic behavior, or complete machine shutdowns. Regularly inspect wiring and connections for wear, damage, or corrosion. Ensure that the machine is grounded properly to prevent electrical surges. If electrical issues persist, it's advisable to consult with an electrician or technician familiar with CNC machinery.


8. Problem with the DC Motor:

A malfunctioning DC motor can compromise the efficiency of a CNC machine. Symptoms might include erratic movement, reduced speed, or complete failure to move. Check the motor brushes for wear and replace them if necessary. Ensure that the motor is receiving the correct voltage. If problems persist, consider testing the motor's windings or consulting a professional for a thorough inspection or replacement.


9. Electrical Faults In a CNC Machine:

Electrical faults can be dangerous and disrupt machine operations. Regularly inspect the machine for any exposed wires, damaged insulation, or loose connections. Use a multimeter to check for any short circuits or grounding issues. Ensure that the machine's electrical components are free from dust, debris, or moisture, as these can cause short circuits. If electrical faults are recurrent, it's essential to consult a professional to diagnose and rectify the issue.


10. Machine Chuck Seems to Be Stuck and Won’t Clamp or Unclamp:

A stuck chuck can hinder CNC operations. This can be due to mechanical obstructions, lack of lubrication, or hydraulic issues. Begin by inspecting the chuck for any visible obstructions or debris and clean it thoroughly. Ensure that the chuck is well-lubricated to facilitate smooth movement. If the chuck operates on a hydraulic system, check for any leaks or pressure inconsistencies. If the problem persists, consider consulting the machine's manual or seeking professional assistance.


What Leads to Problems in CNC Machines?

 There are number of causes which lead to problems in CNC machines, some of them are:

1. Poor or Improper Maintenance

CNC (Computer Numerical Control) machines, like all sophisticated equipment, require regular and meticulous maintenance to ensure optimal performance. Poor or improper maintenance can lead to a myriad of problems. For instance, if the machine's moving parts are not lubricated regularly, it can result in increased wear and tear, leading to reduced accuracy and precision in operations.

Dust and debris can accumulate in critical components, causing malfunctions or even damaging the machine. Regular calibration is also essential; failing to do so can result in inaccuracies in the final product.

Moreover, neglecting to replace worn-out parts can lead to catastrophic failures. In essence, poor maintenance not only reduces the machine's lifespan but also compromises the quality of the products it produces.


2. Improper Settings or Tools

The efficiency and accuracy of CNC machines are heavily reliant on the correct settings and tools being used for specific tasks. Using the wrong tool for a job or incorrectly setting up the machine can lead to subpar results, waste of materials, and even damage to the machine.

For example, using a dull tool can cause uneven cuts, generate excessive heat, or even break the tool, leading to unplanned downtime. Similarly, incorrect feed rates or spindle speeds can result in poor surface finishes, tool breakage, or machine wear.

It's imperative for operators to be well-trained and vigilant, ensuring that the right tools are used with the correct settings for each job.


3. Poor or Improper Programming

Programming is at the heart of CNC operations. A minor error in the code can lead to significant problems, ranging from producing a defective part to causing damage to the machine. Poor or improper programming can result in the machine moving in unintended ways, leading to collisions or incorrect cuts.

This not only wastes materials but can also be a safety hazard. It's crucial for programmers to be well-versed in the machine's capabilities and limitations, and to double-check their code. Additionally, using outdated or incompatible software can also lead to programming errors.


4. Inadequate Training of Operators

A CNC machine is only as good as its operator. Inadequate training can lead to a multitude of problems. An untrained or poorly trained operator might not recognize the signs of a malfunctioning machine, leading to further damage. They might also not know the best practices for setting up a job, resulting in inefficiencies or mistakes.

Furthermore, safety is a paramount concern in any industrial setting. An operator unfamiliar with safety protocols is not only a risk to themselves but also to those around them and the equipment.


5. Environmental Factors

The environment in which a CNC machine operates can significantly impact its performance. Factors like temperature, humidity, and dust can affect the machine's accuracy and longevity. For instance, high humidity can lead to condensation on critical components, leading to corrosion or electrical shorts.

Extreme temperatures, whether too hot or too cold, can affect the machine's calibration and the materials being worked on. Dust and debris in the environment can clog the machine's components, leading to malfunctions. Ensuring a clean, climate-controlled environment is crucial for the optimal functioning of CNC machines.


6. Electrical and Power Issues

CNC machines are sensitive to fluctuations in power supply. Voltage drops, surges, or interruptions can cause the machine to malfunction, reset, or even damage its electronic components. It's essential to ensure a stable power supply, possibly with surge protectors or uninterruptible power supplies (UPS) to safeguard the machine.

Additionally, faulty wiring or deteriorating electrical components within the machine can lead to erratic behavior, reduced performance, or complete failure. Regular electrical maintenance and checks are vital to prevent such issues.


Closing Thoughts

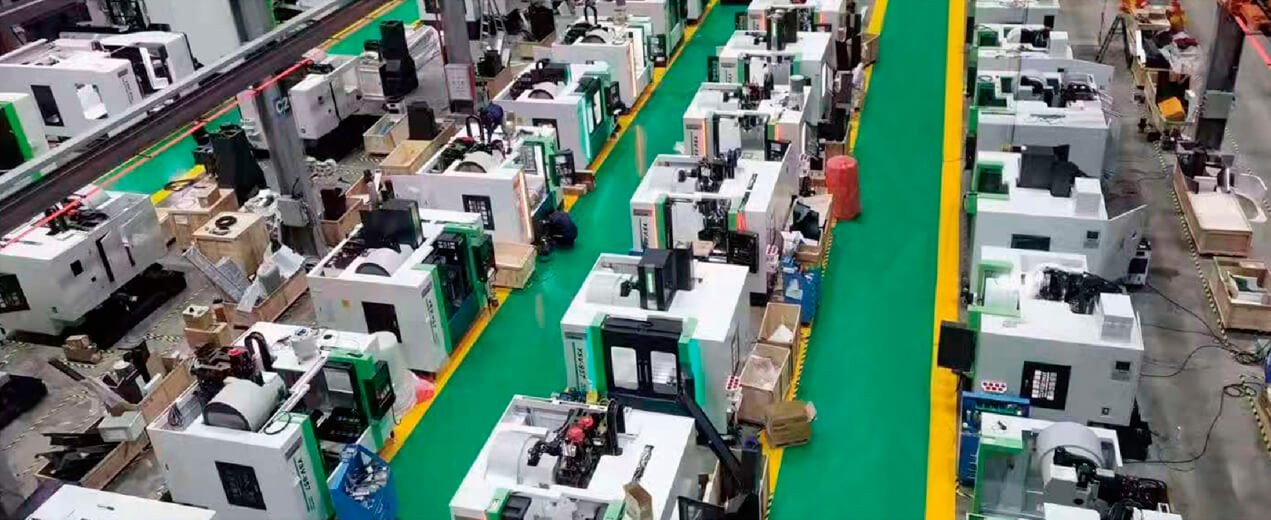

yangsen cnc machine

CNC machines, being intricate and sophisticated pieces of equipment, require meticulous attention to detail in both operation and maintenance. The range of potential issues, from mechanical to electrical and software-related, underscores the importance of a comprehensive understanding of the machine's workings. Regular inspections, timely updates, and preventive maintenance are paramount to ensure the longevity and efficiency of these machines. Addressing issues like inaccurate tool positioning or overheating promptly can prevent more significant damages and costly downtimes. Furthermore, while some problems can be resolved with basic troubleshooting, others necessitate professional intervention. It's crucial for operators and technicians to be well-acquainted with their machine's manual and to establish a line of communication with manufacturers or experts for guidance. In the evolving landscape of manufacturing, ensuring the optimal performance of CNC machines is not just about fixing issues but also about proactive care and understanding the symbiotic relationship between the machine and its operator.
